1500KN Automatic Four Column Cutting Machine For Leather Punching

Main technical specifications

Main configuration characteristics

1, the use of precision machine tools for finishing the upper and lower two punching surfaces, so that the error of the upper and lower two punching surfaces is less than 0.10㎜;

2, two-hand operation design, workers only press the button with both hands at the same time, the machine will be punching action, improve the safety of the machine;

3, the use of PLC centralized control, man-machine interface operation, set blanking stroke is convenient, high precision blanking, equipped with Ethernet interface, remote monitoring, to achieve modern management;

4, the whole four-column precise guidance, precision double crank balance, hydraulic drive; Each moving part adopts the central automatic lubrication system to ensure the service life and blanking accuracy of the machine;

5, the specially designed high-speed oil pressure system, relying on the weight of the pressure plate to achieve rapid decline, automatic pressure slow cutting after pressing to the material, so that the specifications between the upper and lower parts of the material remain consistent, and no oil temperature rise worries;

6, the use of flywheel energy storage to achieve high pressure blanking, saving energy,

7, the main hydraulic parts, electrical components for imported parts, low noise, long life;

8, the sealing parts are selected from the world's top German imported brands;

9, the piston rod and guide rod surface of the machine for high-frequency hard chrome plating treatment, durable.

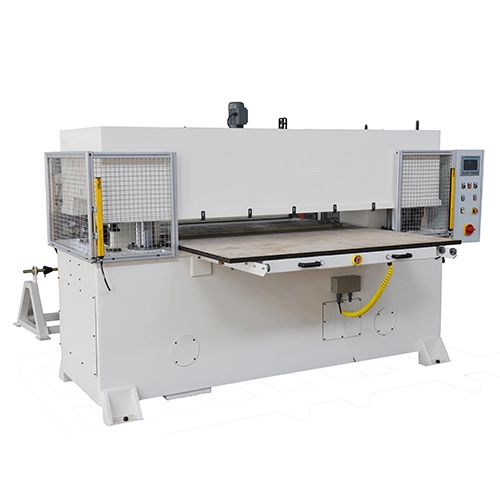

Picture for reference
