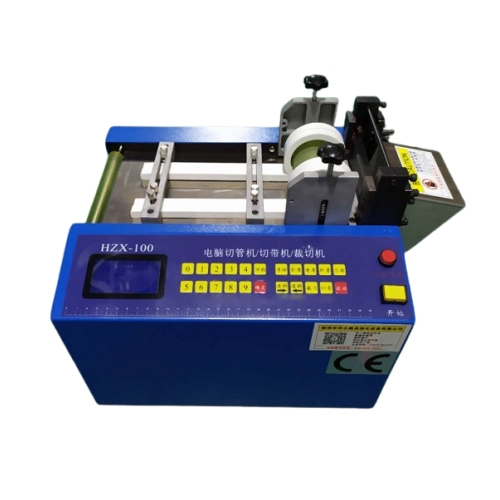

Automatic High Speed Cutter Machine For Nickel Strip PVC Tube Cutting
Introduction

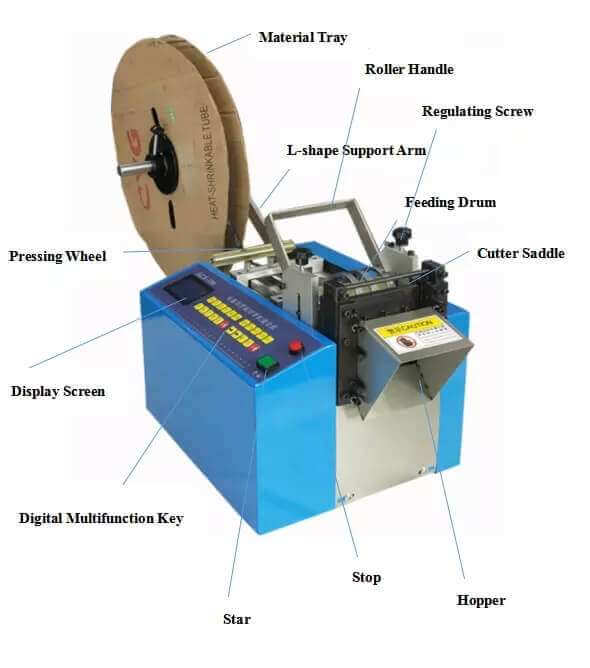

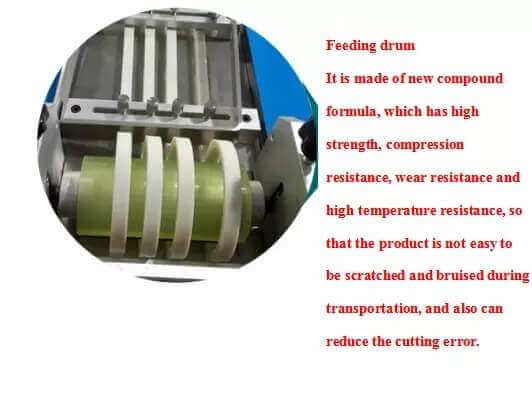

This machine adopts a microcomputer numerical control display device, with the length/quantity of cutting strips and the feeding speed freely set. It is equipped with an adjustable roller feeding mechanism, and the pressure and lifting on both sides are automatically adjusted. It can quickly discharge materials. Combined with a top needle feeding mechanism, it effectively prevents material scratches and is mainly suitable for high-speed cold/hot full/half cutting of strips. High precision, low loss, the model design conforms to ergonomic principles, and the operation is simple and highly automated
Performance characteristics
1. Specialized mechanical structure and special cutting tools, combined with professional software control, completely solve the problem of uneven cuts: achieve a flat/accurate cut
2. Independently developed specialized cutting machine motion control system, core technology, and suitable for fixed length cutting of equipment in various industries
3. Full Chinese LCD large screen display, easy to operate, simple and convenient
4. High speed feeding, high precision microcomputer program control
5. The length and speed can be continuously adjusted to achieve efficient operation
6. The cutting speed is adjustable, fully controlling the high and low speeds of the cutting machine
7. Set the cumulative and total cumulative counts of active groups
8. Batch pause and delay time can be set
Application
Widely applicable to industries such as electronics, automotive parts, clothing and leather, electrical appliances, motors, toys, transformers, etc (Different materials have different requirements)
Technical parameters
1. Power supply: 220V
2. Cutting length: 0.1-99999.9mm
3. Cutting width: 0-85mm;
5. Weight: 28KG

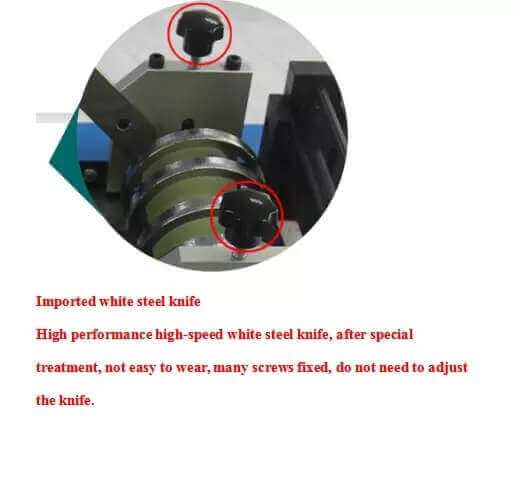

6. Tool material: thick upper and lower knives (or art knives are suitable for materials)
7. Feeding speed: adjustable
8. Specifications: L * W * H L450 * W310 * H305 mm
9. Power: 300W
10. Motor: (86 step) Cutting blade motor: 40W AC
11. Stepper motor driver
12 feeding rollers: Uni glue silicone (adapted according to material)
13. Accuracy error: ±0.3mm (note: for reference only)

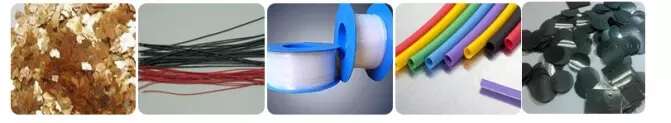

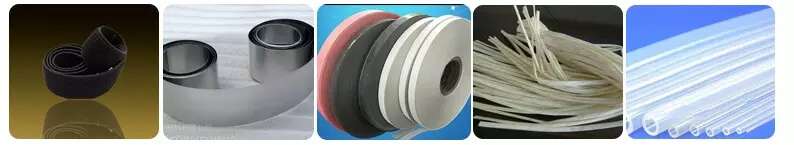

Cutting Material
Picture for reference
