W400mm Automatic Paper Cutting Machine With Microcomputer Controller


Introduction

The machine adopts microcomputer numerical control display device, cutting strip length/quantity, free setting of feeding speed, equipped with adjustable roller feeding mechanism, both sides automatically adjust the pressure and lift, can quickly discharge material, with thimble feeding mechanism, effectively prevent material scratch, mainly suitable for high-speed cold/hot strip full/half cut. High precision, less loss, machine design in line with ergonomic principle, simple operation and high automation.



Performance characteristics

1. Special mechanical structure and special tools, with professional software control to completely solve the problem of uneven incision: to achieve the flatness/accuracy of the incision.

2.. Independent development of special cutting machine motion control system, core technology, and suitable for various industries equipment fixed length cutting.

3. Full Chinese LCD large screen display, operation at a glance, simple and convenient.

4. High-speed feeding, microcomputer program control accuracy is high.

5. The length and speed can be adjusted continuously to achieve high efficiency.

6. Adjustable cutting tool speed, fully control the cutting machine high and low speed.

7. Set active group accumulative and total accumulative count.

8. Batch pause and delay time can be set.

9. Total to automatic stop, do not need special marking.



Scope of Application

Widely used in electronics industry, auto and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries.(Different materials have different requirements)



Technical parameters

Model number

NEM-HZX-400

Power supply

220V/50Hz

Cutting length

0.1-9999.9 mm

Cutting width

0-380 mm (customized)

Cutting accuracy

±0.5 mm (depends on the length, for reference only)

Weight

75 KG

Knife material

Imported SKD2

Feed speed

Adjustable, max. 34m/min

Size

650*665*365 mm

Power

650 W

Motor

Feed: Stepper motor

Cutter: Gear motor 250W

Stepper motor driver

NEM-HZX-400D

Feed wheel

PU glue

Roller diameter 48mm hardness 35°, lower roller hardness 75°

Aluminum type discharge rack

Bearing capacity within 15KG

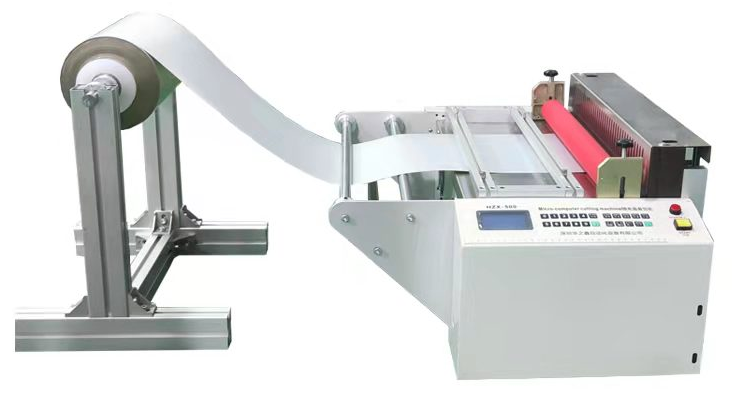

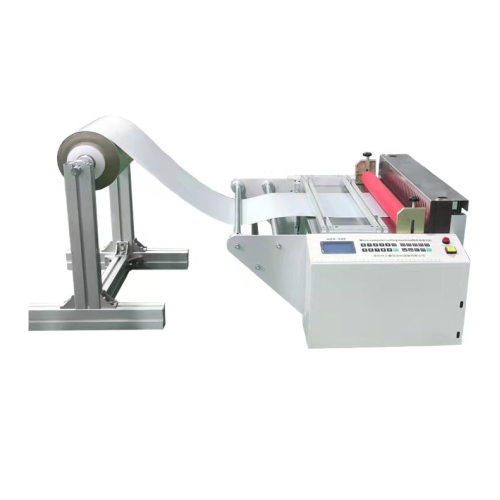

Picture for reference
