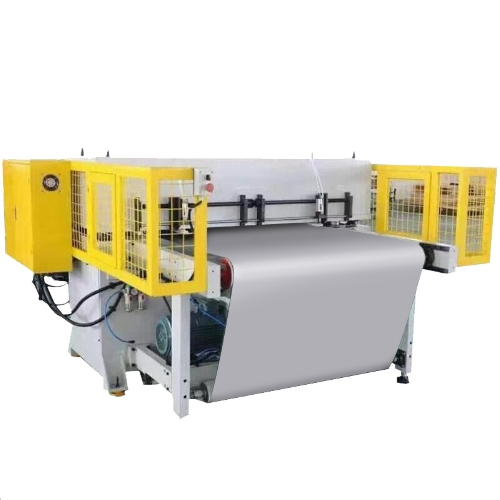

Large Conveyor Belt Type Cutting Machine For Leather/Shoes/Phone Case Cutting

Application range:

Mask, shoes, foam, blanket, leather, Throw pillows, phone cases, etc

Product Introduction:

Conveying the feeding part

1, This part is composed of decelerating mechanism, synchronous belt transmission device, pneumatic clamping device, conveyor belt and tensioning mechanism

2, the machine adopts conveyor belt feeding, pneumatic clamping, so that the material is not easy to offset:

3, using servo motor drive, synchronous belt drive longitudinal feeding, feeding length can be directly input on the touch screen

Cutting host

1, the main machine is composed of four-column guide mechanism, hydraulic part, and frame;

2, the punch is equipped with an automatic tool clamping device, using the tension of four cylinders to clamp the tool, the tool will not move, the replacement of the tool is convenient and quick

3, the whole four-column accurate guide, precision double crank balance, hydraulic drive; Each moving part adopts the central automatic lubrication system to ensure the service life and blanking accuracy of the machine

4, the specially designed oil pressure system, relying on the weight of the pressure plate to achieve rapid decline, automatic pressure slow cutting after pressing the material, so that the specifications between the upper and lower layers of the material are consistent

5, the use of flywheel energy storage to achieve high pressure blanking, saving energy, and no oil temperature rise concerns:

6, the unique stroke setting mechanism with the tool die to automatically set the height of the cutting tool, so that the punching depth adjustment is convenient and accurate

Technical parameters:

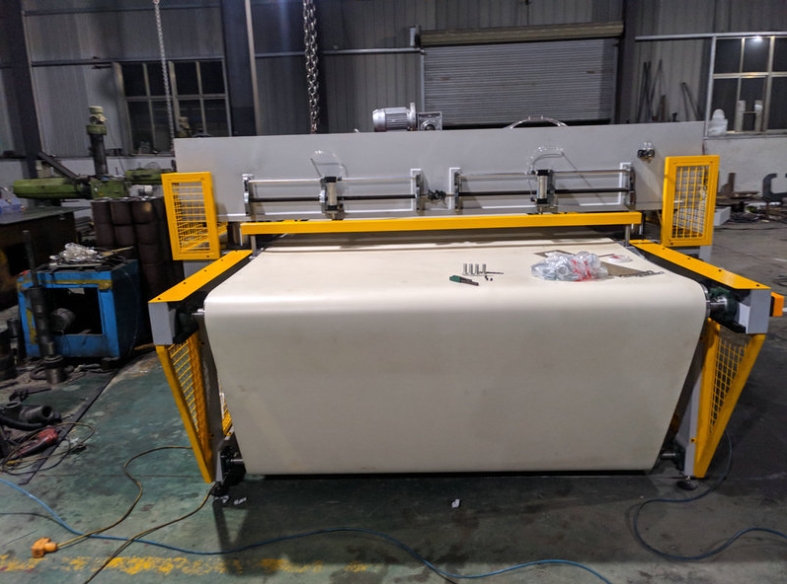

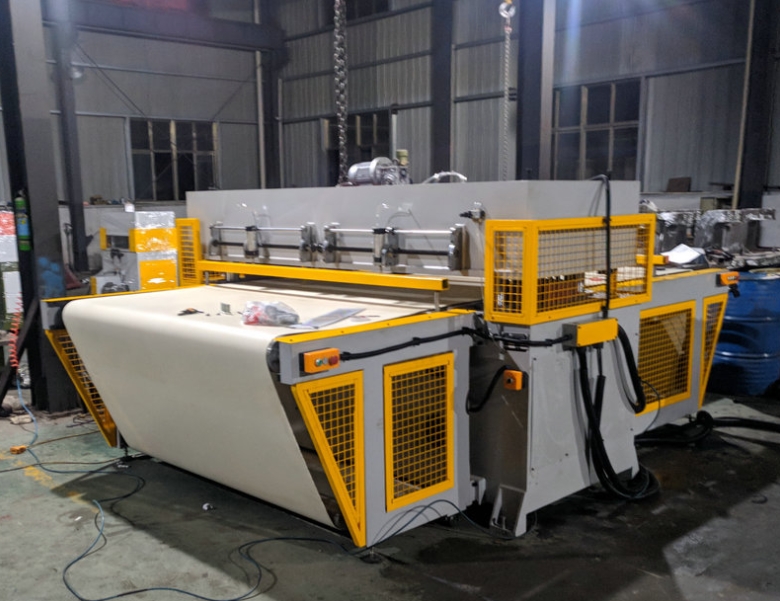

Picture for reference
