25T Hydraulic Swing Arm Press Cutting Machine For Pad Cutting

Introduction

This machine is suitable for punching and blanking materials of light boxes such as foam labels, toys, decorative parts, seal cotton, leather bag accessories, mouse pads, films, pet clothes, etc.

Features

• It features free rotation of the rocker arm and convenient operation and material selection.

• The column is made of high-quality seamless tubes and supported by two holes at the top and bottom, ensuring that the upper and lower striking plates rotate flexibly and have good reliability.

• The switch is operated with both hands to ensure the safety of the operator.

• The height of the rocker arm is adjusted by the handwheel at the upper end of the machine, and the blanking stroke is regulated by the time timer. This makes it easy to obtain the cutting position, improves work efficiency, and extends the service life of the die and the pad.

• It takes advantage of the inertial energy storage of the flywheel to save energy and has the characteristics of low power consumption.

• To adapt to the frequent replacement of molds of different sizes, there is also a model available for selection that can promptly output three types of cutting forces.

Technical parameter

Pressure: 25T

Press plate size: 450*540 mm

Lower plate size: 500*1000 mm

Maximum stroke: 100 mm

Maximum travel: 120 mm

Power: 1.5KW

Voltage: 380V/220V 50Hz

Dimensions: 1000*1000*1650 mm

Weight: 1100 kg

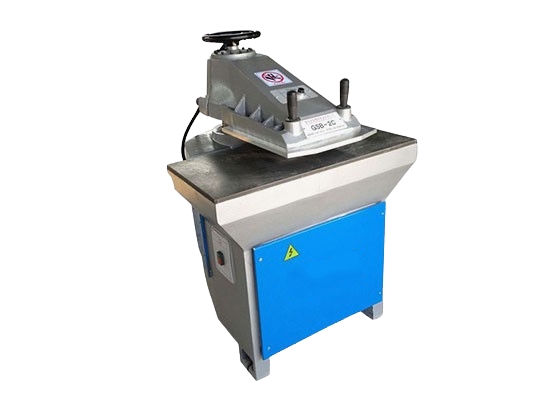

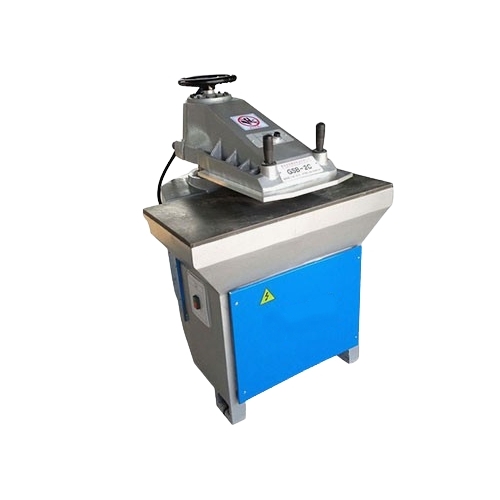

Picture for reference
