Automatic Continous Silicon Cutting Machine For Silicon Rubber Rolls Cutting
Introduction
The machine is used for continuous silicone rubber rolls cutting, cutting into large pieces, without manual separation. The stacking machine can be added for automatic stacking according to requirements. It can reduce the labor and improve the efficiency.
Function And Characteristics
Auto break;
Automatic stacker(Optional);
Material shortage and full stack alarm;
Safety protection function;
Customizable length and quantity automatic slicing,automatic separation；
There are two working modes and system I0 monitoring,which are not only practical and in funtion but alaso convenient for maintenance;
It can slice multiple sizes at the same time, i.e., it can cut multiple films of different sizes simultaneously;
Equipped with non-stop size adjustment, feed speed regulation, product counting function, and material return function;
It can eliminate the weighing process to save a lot of labor;
Fast slicing speed (especially for cutting small cubes) can greatly improve work efficiency;
Adopting PLC+touch screen control, equipped with precision servo motor, precise control of load cutting size;
Main Technical Indicators
Cutting width: 0~adjustable, blade length: 550mm
Cutting thickness: 0~10mm, stacking platform lifting stroke: 320mm
Material transfer stroke: 550mm, slicing speed: 0-120 knives/minute
Machine Power:<2KW，Power supply:220V

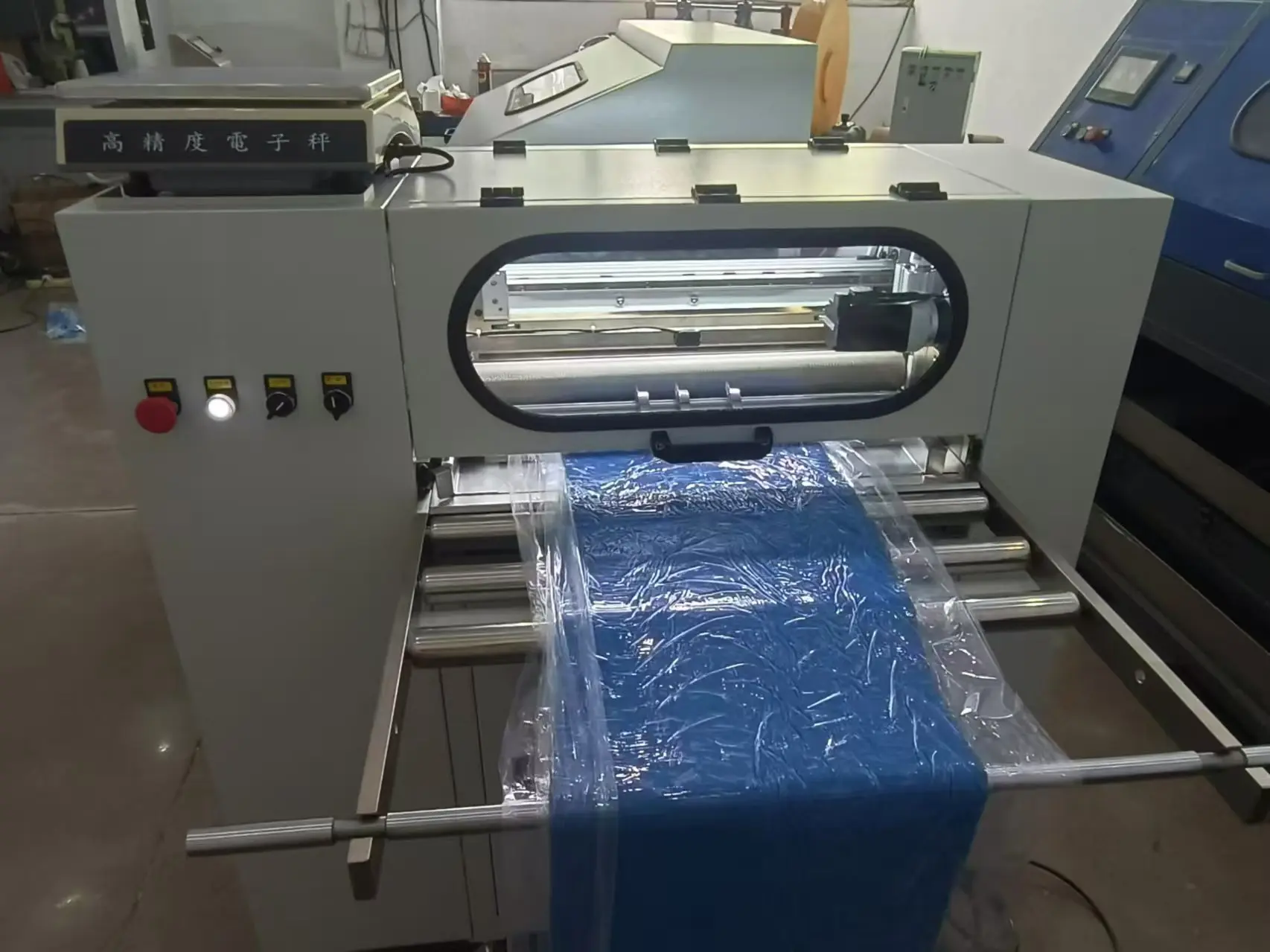

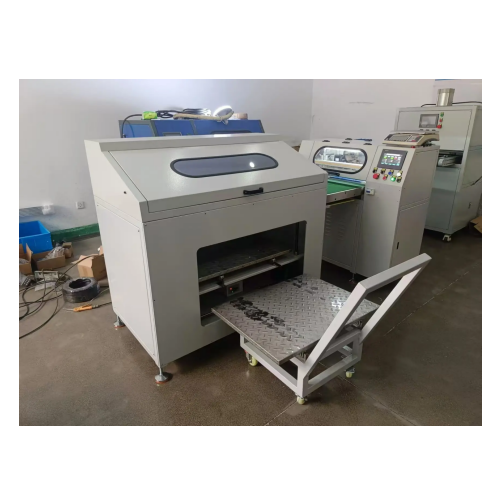

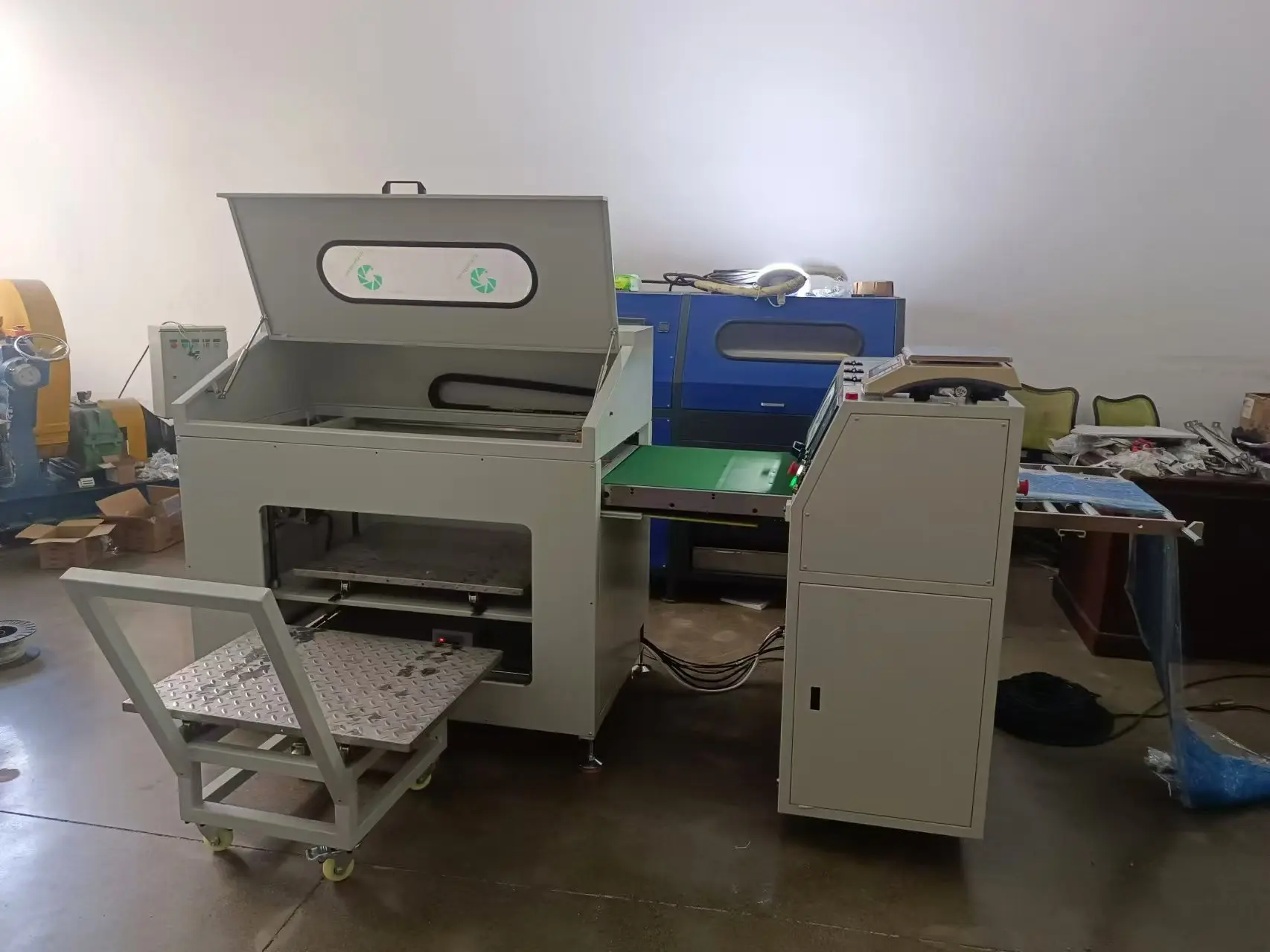

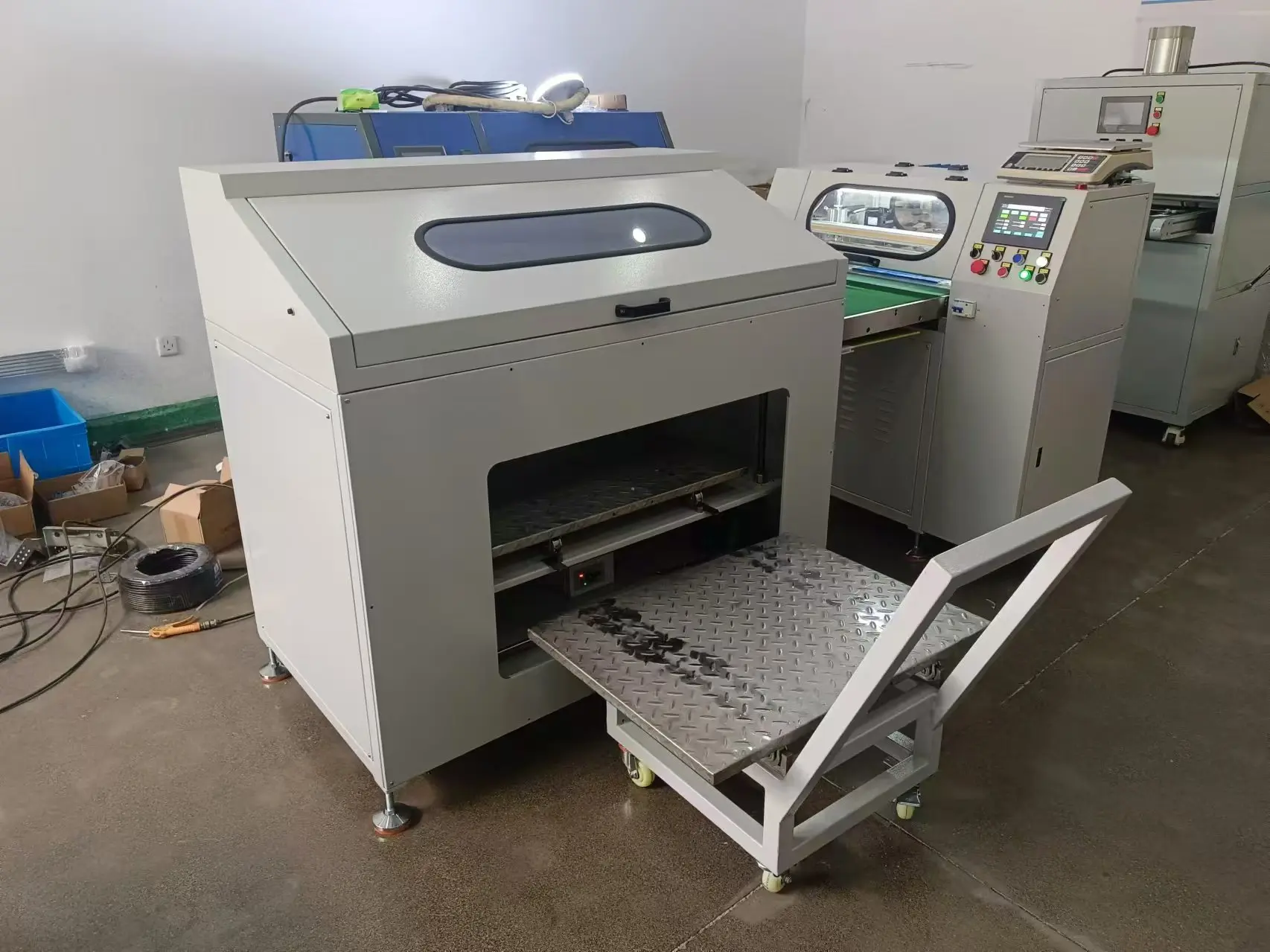

Picture for reference
