Automatic Cross Cutting Machine For Metal Foil Sheeting

Performance characteristics

1. Special mechanical structure and special tools, with professional software control to completely solve the problem of uneven incision: to achieve the flatness/accuracy of the incision.

2. Independent development of special cutting machine motion control system, core technology, and suitable for various industries equipment fixed length cutting.

3. Chinese LCD large screen display, operation at a glance, simple and convenient.

4. High speed feed, microcomputer program control precision.

5. Length and speed can be adjusted continuously to achieve high efficiency operation. The cutting tool speed is adjustable, fully control the cutting machine high and low speed.

7. Set active group accumulative and total accumulative count.

8. Batch pause and delay time can be set.

Scope of application

Widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries

Technical parameters

Main configuration

1. Main motor (1 set)

2, stepping motor (1 set)

3, cutting knife (1 set)

4, electrostatic processor (1 set)

5. Post-feeding speed regulating motor (1 set)

6. Receiving table (1 piece)

7. Frequency converter (2 sets)

8. Inflatable shaft: (1)

9. Magnetic powder: (1 piece)

Automatic cutting machine function

1, machine power: 5KW

2, speed adjustable: 0-5000

3, the length is adjustable: 0.1mm-9999.9mm

4. Total set: 1-999999

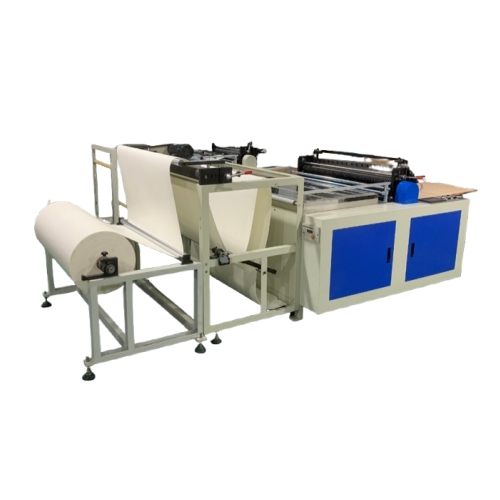

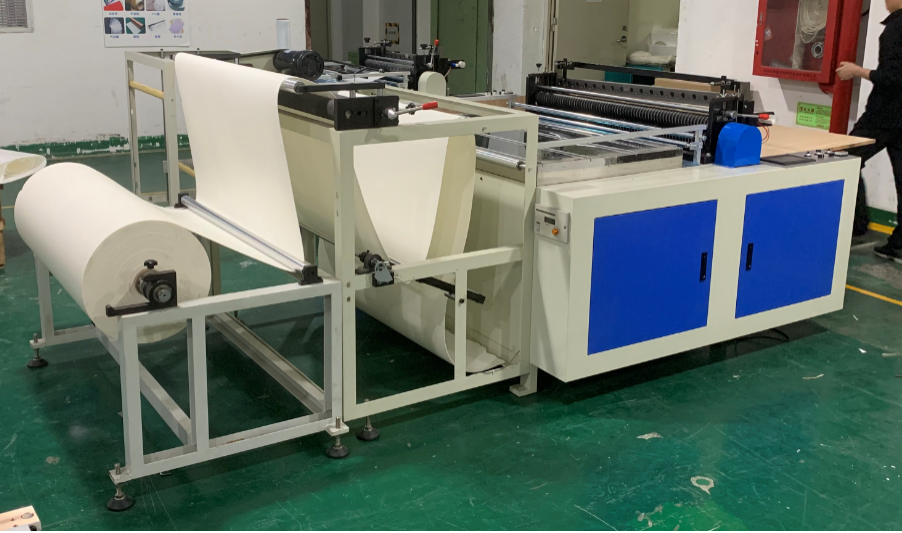

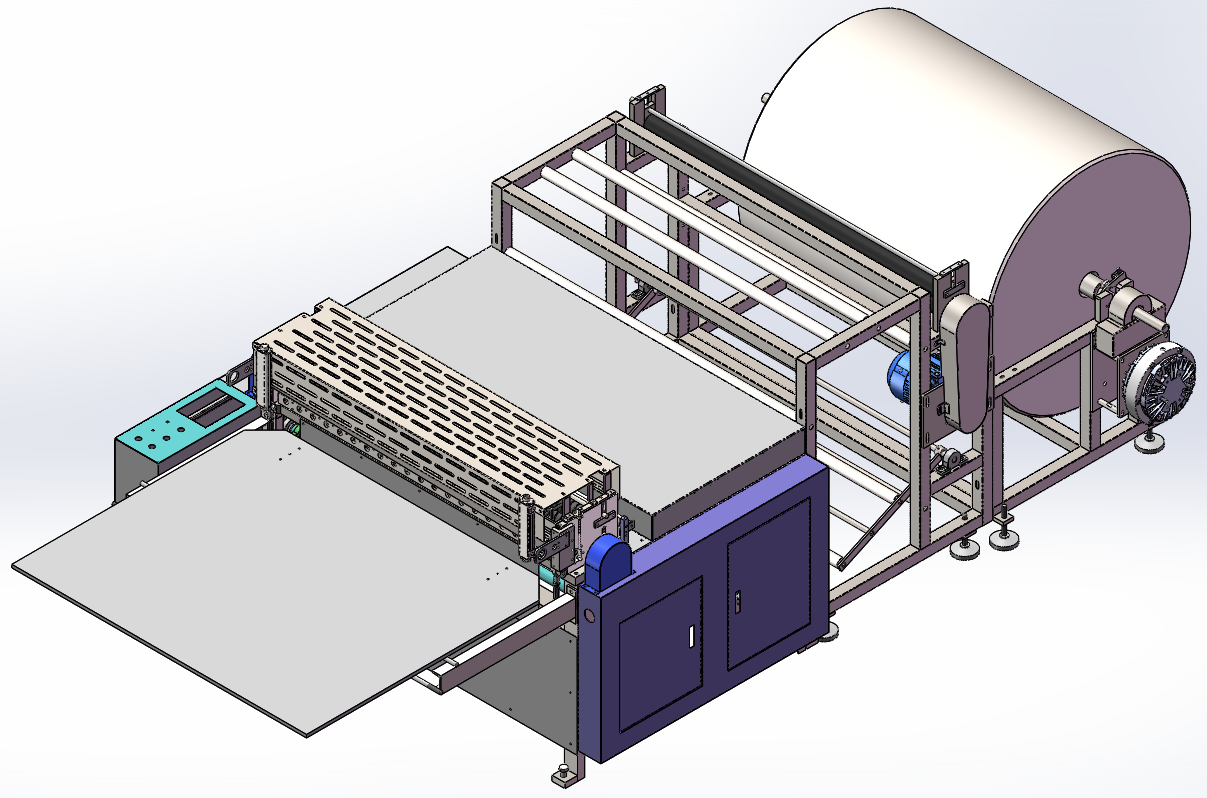

Picture for reference
