Automatic Water-based Glue Shoes Material Laminator Machine For Leather/Synthetics Laminating

Introduction

This machine is specially developed for laminating the above materials for shoe making industry.

The shoe making material is mainly composed of the following five parts

1.Leather.
Leather is flexible yet durable, as sturdy as it is supple. It’s elastic, so it can be stretched yet it resists tearing and abrasion.
2.Textiles.
Fabric is also quite commonly used for making shoes. Like leather, textiles are available in a wide array of colors and varieties.
3.Synthetics.
Synthetic materials go by many different names– PU leather or simply PU, synthetic leather or simply synthetics– but they’re all the same in being man-made composites of two.
4.Rubber.
Rubber is most commonly used in shoes to make soles.
5.Foam.
Foam is the most common material used to provide support in the uppers of shoes of all sorts, be they leather, textile, synthetic or even rubber.

Laminating Machine Features

1.It uses water-based glue.
2.Improve the quality of the products greatly, save cost.
3. Vertical or horizontal structure, low breakdown rate and long service time.
4. The material feeding roller is driven by air cylinder, realizing more rapid, convenient and precise process.
5. Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying and bonding effect, and make the laminated product soft, washable, and strengthen adhesive fastness.
6. There is a glue scraping blade to scrape the glue evenly onto fabric and the unique glue channel design facilitates the cleaning of the glue after lamination.
7. This laminating machine has two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs.
8. Surface of heating roller is coated with Teflon in order to efficacious prevent the hot melt adhesive against sticking on the surface of roller and carbonization.
9. For clamp roller, both hand wheel adjustment and the pneumatic control are available.
10. Automatic infrared centering control unit effectively prevents the net belt deviation and prolongs the net belt service lifespan.
11. All the heating pipes in the drying roller are made of stainless steel and the temperature of the heating drying roller can be as high as 160 celcius degree, and even 200 celcius degree. There are usually two sets of heating system in the drying roller. The heating will automatically change from one set to two sets. It is safe and energy saving.
12. Counting device and rewinding device are installed on the machine.
It is simple to maintain the machine and the maintenance cost is low.
13. Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life.
14. Customized manufacturing is available.
15. Low maintenance cost and simple to maintain.

Main Technical Parameters

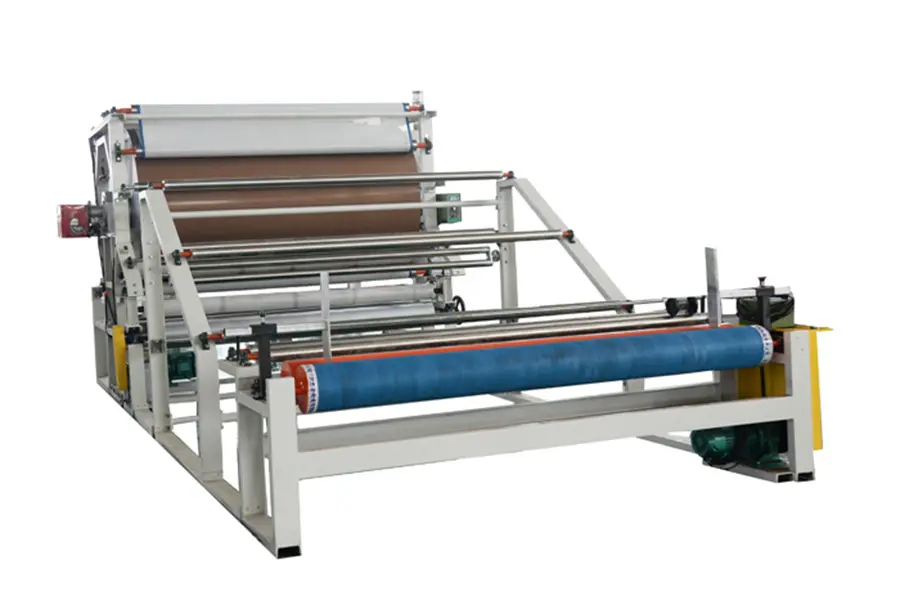

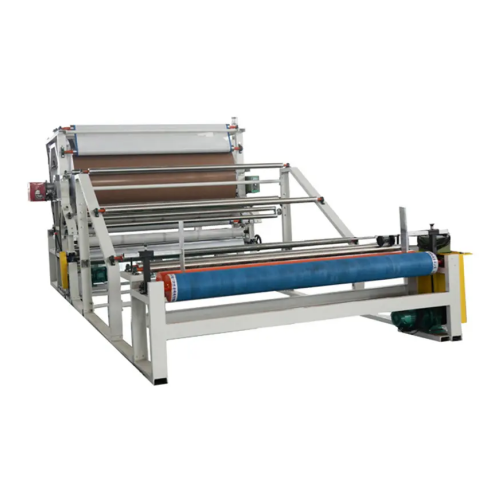

Picture for reference
