Cloth/Rubber/Leather Hydraulic Travel Head Die Cutting Machine


Usage and Characteristics

This travel head cutting machine is designed for large plants to continuously cut non-metal materials(such as leather, rubber and cloth) in large batch with the help of molding cutting die. It is most suitable for soft material cutting, such as fabric, film, felt, nonwoven, etc.



Characteristics

1. This type of cutting machines are widely used for cutting applications of nonmetal materials. Such products as sandpaper products, artificial flower, insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine.

2. Servo motor makes accurate feeding possible and controls horizontal movement of the cutting head.

3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).

4. Special hydraulic system makes low noise possible and saves oil.

5. High quality and imported oil pump and other parts are available on request.

6. Maximum cutting force of the die cutting machine caters to customer's specific application requirements.

7. Rotary head can be installed on request.



Reference Technical Data (Customizable)

Model

                              Hydraulic Travel Head Die Cutting Machine

Maximum Cutting Force (ton)

25

30

40

50

55

60

Working Table (mm)

1600*500

1800*500

2000*500

1600*500

1800*500

2000*500

Travel Head Size (mm)

500*500

500*500

500*500

550*550

550*550

550*550

Adjustable Stroke (mm)

5-150

5-150

5-150

5-150

5-150

5-150

Motor Power (kw)

2.2

2.2

2.2

4.0

4.0

4.0

Estimated Machine Dimension (mm)

2200*720*2000

2400*720*2000

2600*720*2000

2200*720*2000

2400*720*2000

2600*720*2000

 Estimated G.W (kg)

1800

2100

3000

3000

3800



4500

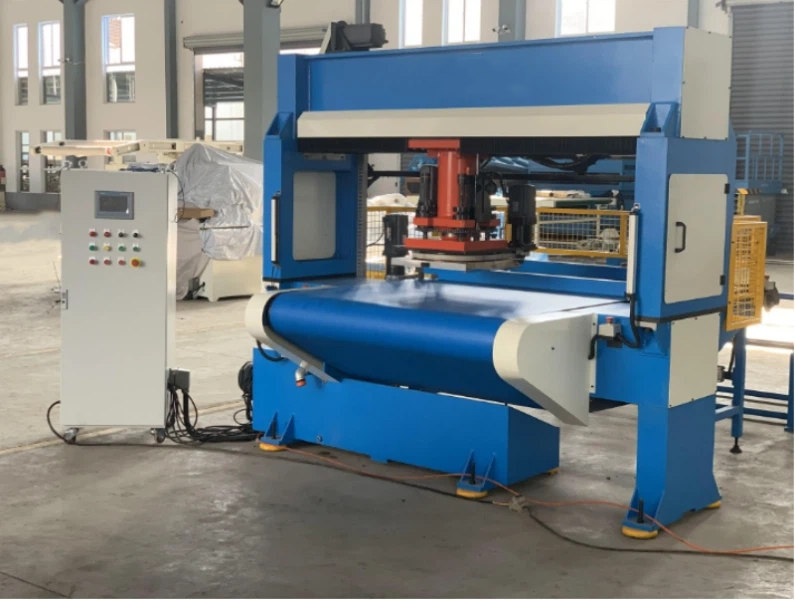

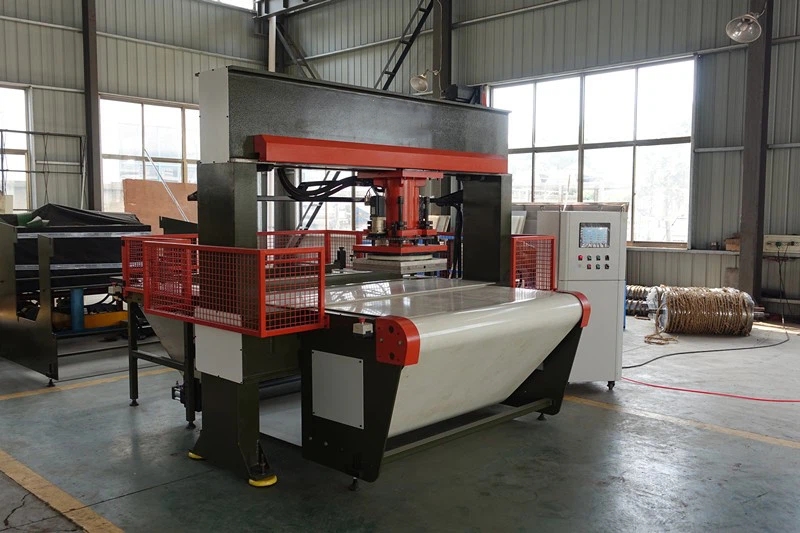

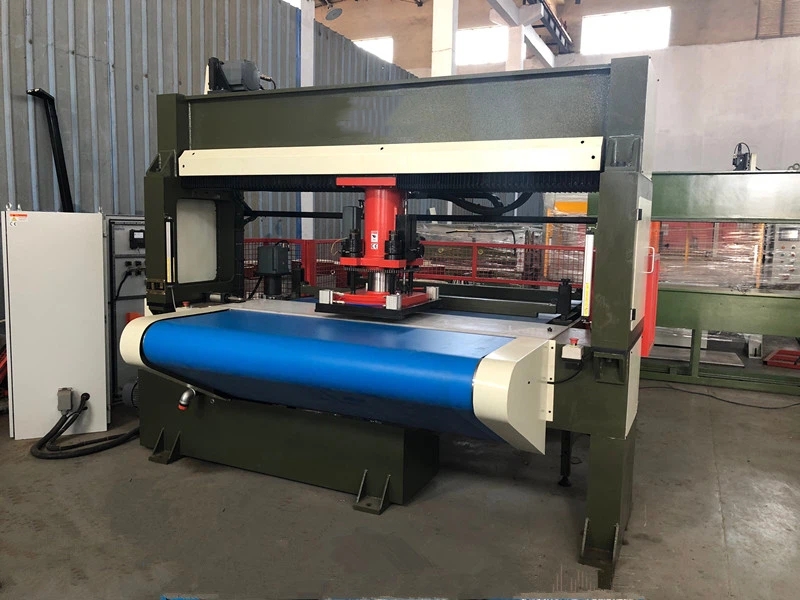

Picture for reference
