Double Servo Battery Electrode Die Cutter Machine For Collector Notching


Application range:

Die cutting and stamping of materials such as battery electrodes, copper foil, aluminum foil, graphite sheets, protective films, etc



Main Features

1.Adopt advanced computer digital drawing system, double servo drive, PLC program control, touch screen operation, fast die cutting speed and high efficiency.

2. Overall design:

① the feed frame adopts the fine adjustment device to make the adjustment more convenient and quick;

② stainless steel plates are used for die-cutting parts, material inlet and outlet and feeding frame, and scale is corroded to make the material easier to adjust. The machine has the advantages of high precision, low noise and high speed;

④ driven by servo main motor, stamping is more stable and power saving.

3. Die cutting part:

① installable: carving mold, wood mold, rubber mold, corrosion mold, hardware mold;

② it can easily realize automatic punching for many times, with high accuracy of nesting;

③ it can be thrust fully or thrust half;

④ equipped with mirror light curtain safety protection device to ensure the safety of operators;

4. Automatic oil supply system to ensure the service life and stability of the machine;

5. It can be used online with laminating machine, slicing machine and other equipment.



SPECIFICATIONS

Machine model

NEM-XY-450

Template area

450*425mm

Maximum material width

450mm

Die cutting speed

1000-12000p/h

Adjustable stroke

±25mm

Applicable tool die

rubber mold

Die height

8mm

Pressure accuracy

±0.03mm

Forming accuracy

±0.1mm

Die cutting burrs

Horizontal and vertical ≤ 15um

Correction accuracy

±0.1mm

Machine size

(length, width and height)

3200*2200*1700mm

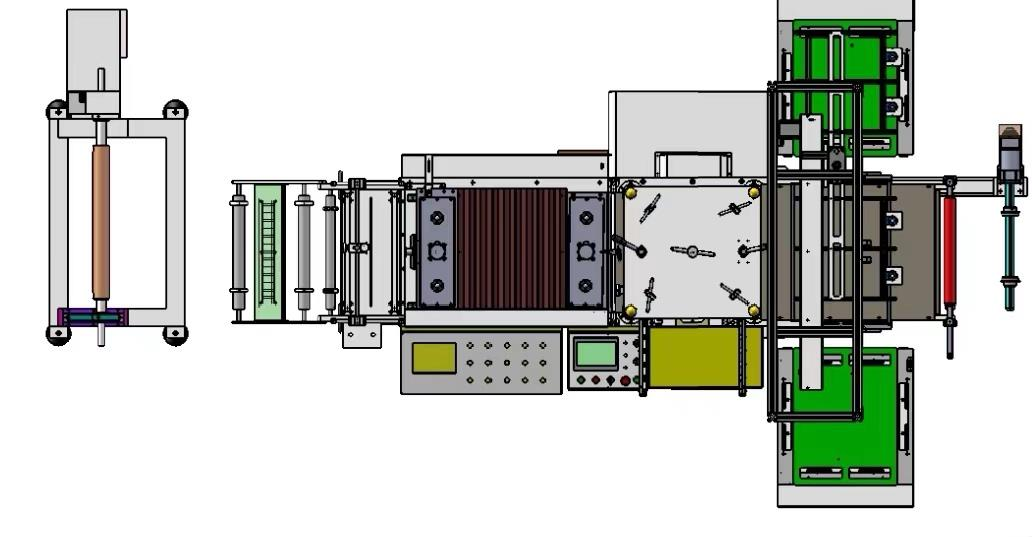

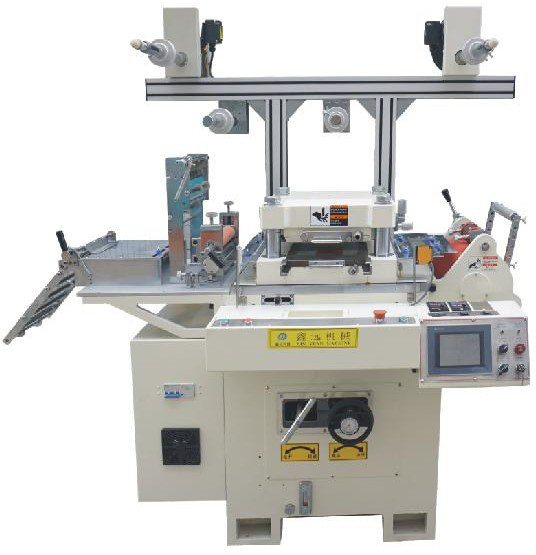

Picture for reference
