Hydraulic Swing Arm Punching Machine For Non-Metal Material Cutting

Uses and features

Hydraulic swing arm cutting machine is suitable for using small knife die to punch and cut non-metal materials such as ticket holder components, small toys, decorative parts, leather bag accessories

1. With swing arm rotation freely, easy operation and material selection.

2. The excellent seamless steel pipe is used to process the column, and the upper and lower holes are supported to ensure the flexible rotation of the upper strike plate and good reliability.

3. Use both hands to operate the switch to ensure the safety of the operator.

4. The position of the swing arm is adjusted by the hand wheel at the upper end of the machine, and the blanking stroke is adjusted by the time timer. In this way, the cutting position can be easily obtained, which improves the work efficiency and prolongs the service life of the tool die and the backing plate.

5. Use flywheel inertial energy storage to save energy.

Technical parameters

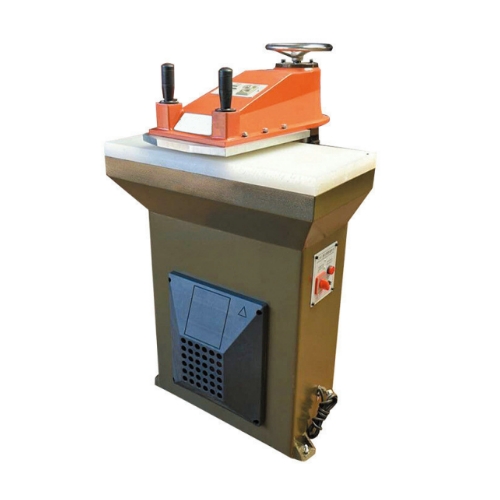

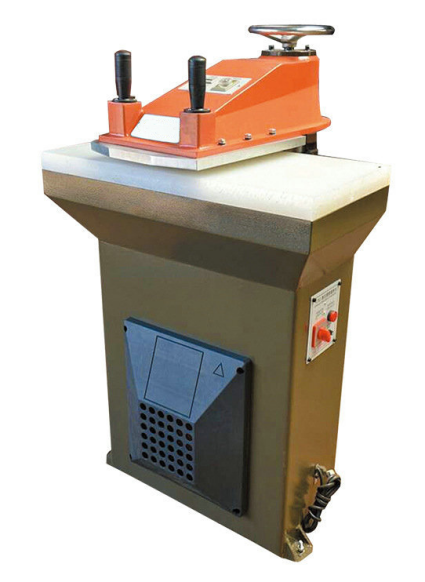

Picture for reference
