Large Travel Head Cutting Machine For Shoe/Ball/Luggage Mass Production

Application

The travel head cutting machine is suitable for continuous punching and cutting of non-metal coil material in large quantities with the same specifications. It can be used in shoe making, ball making, sandpaper, luggage, medicine and other industries.

Features

1, the use of computer PLC man-machine interface, digital control, can achieve automatic feeding, automatic knife punching, can have a variety of arrangement pattern selection, automatic setting, cutting times, high precision, saving materials, high work efficiency, reduce labor intensity;

2, the PLC program control center has a memory function for the setting of operation instructions, which is not affected after the power is cut off or the power is cut off after work, which is easy to operate again:

3, the use of servo motor to control the horizontal movement of the punch, multi-layer material with the cylinder clamping stepping material, the machine automatically completes the blanking of the material, the eye punch displacement distance and feed length can be accurately set, solving the problem of multi-layer material feeding layering length is not accurate:

4, the machine has a variety of points, manual, automatic and other ways, workers only need to pick up finished materials, reduce labor intensity, improve work efficiency;

5, the machine has dislocation, cutting tool, die transposition and other punching modes, you can pick up materials, save raw materials 10%-15%;

6, double cylinder, four-column automatic balance connecting rod structure, to ensure that each cutting position cutting depth is the same;

7, the unique setting mechanism, with the cutting tool and cutting height, so that the stroke adjustment is simple and accurate:

8, the central automatic lubrication system to ensure machine accuracy and improve machine durability and service life:

9, special specifications can be customized;

10. The main sealing parts are imported from Germany. The key hydraulic parts and electrical appliances are imported parts, durable; The surface of the cylinder and piston rod of the main engine is treated with high frequency hard chrome plating to ensure the service life of the machine

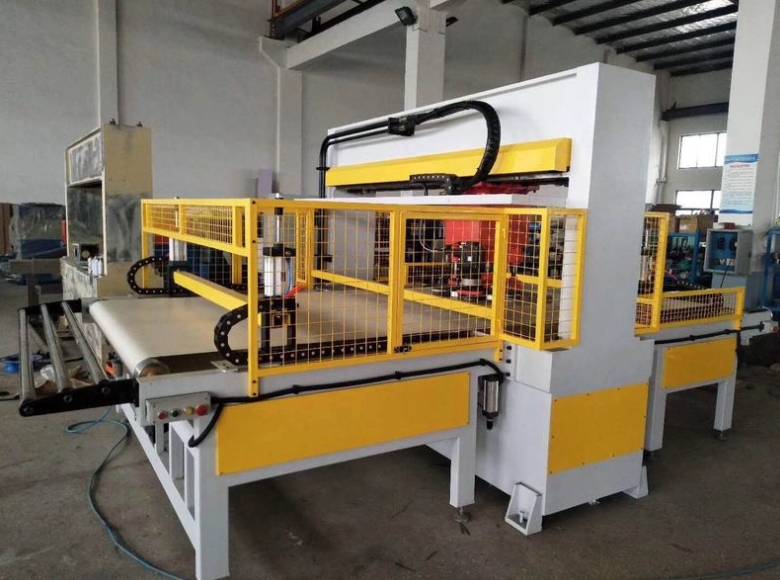

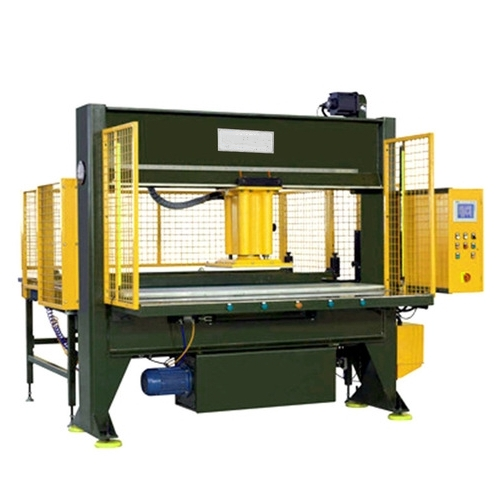

Picture for reference
