Manual Hydraulic Plane Cutting Machine For EVA/Leather/Rubber Cutting

  • Product Detail

Manual Hydraulic Plane Cutting Machine For EVA/Leather/Rubber Cutting


Usage and characteristics

1.This Hydraulic plane Cutting Machine is mainly suitable for cutting one layer or layers of nonmetal materials,such as EVA, leather, molding plastics, rubber, paper-board, fabric and non-woven products etc.

2.This type of cutting press has precise cutting and stable pressure. Cutting position setting to ensure more accurate and faster

3.With the adjustable system that can easily get the best stroke and prolong the service life of cutting mold.

4.Large cutting area to meet the need of every size of materials.

5.Cutting pressure is adjusted easy and accurate, it is easy to operate.

6.Center automatic lubrication system can quarantee the precision and can raise abrasive resisitance.

7.Products of special specifications can be customized.


Machine Advantage:

1. Safe, two-hand trip operation, easy to operation.

2. The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same.

3. The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the uppermost layer and lowmost layer of cut material.

4. Single-side or double side auto feeding system for choosing, which can improve the producting capacity.

5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.


Reference Technical Data(Customizable)

Model

XCLP4-250

XCLP4-300

Rated Cutting Force

25T

30T

Stroke Range

10-100mm

10-100mm

Pressing Board Effective Area

1600X520mm

1600x520mm

Working Table Effective Area

1600X550mm

1600X550mm

Motor Power

2.2kw

2.2kw

Estimated Machine Dimension

1850X600X1600mm

1850X600X1600mm

Estimated Machine Weight

1400kg

1450kg

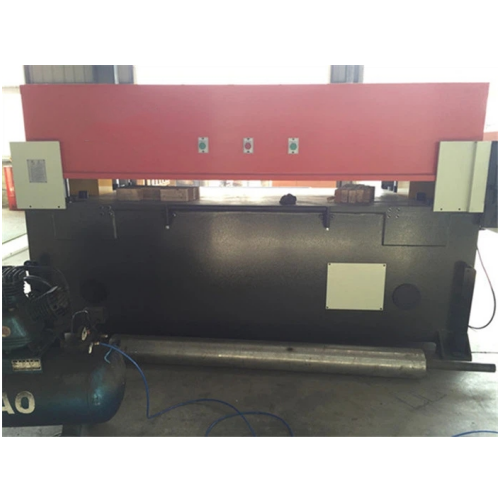

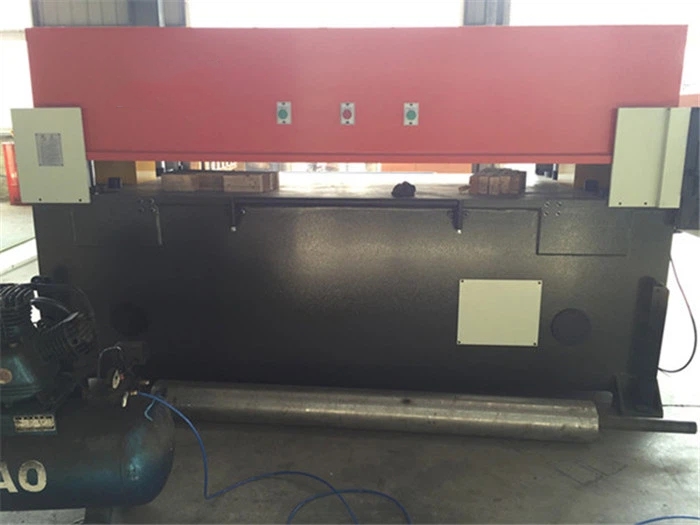

Picture for reference
