Pneumatic Stainless Steel Gas Cutting Machine
Introduction
This cutting machine adopts the indispensable cutting oxygen to drive the car, achieves walk function automatically and doesn’t need any other external power source.

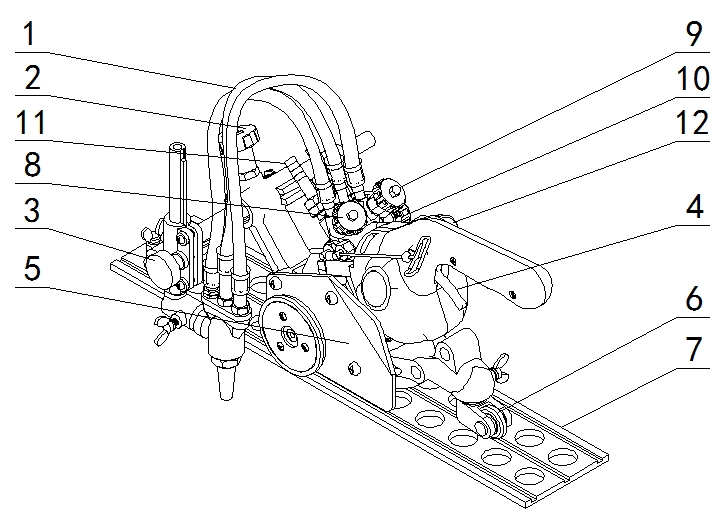

Structure
1. Gas hose (A total of three).
2. Big hand wheel: to adjust cutting torch’s movement (towards the left or right).
3. Little hand wheel: to adjust cutting torch’s movement (upward or downward).
4. Clutch handle: could be self-latching away from the reducer, so it is convenient for the carriage’s fast moving.
5. Heat insulation board: to impede heat diffusion towards the machine interior.
6. Universal wheel
7. Straight track (concave type 1800 mm).
8. Preheat oxygen valve: to adjust the flow of preheating oxygen.
9. Fuel gas valve: to adjust the flow of fuel gas.
10. Cutting oxygen valve: to adjust the flow of cutting oxygen.
11. Gas inlet connector: a total of two; left-hand thread connector is to be connected to the fuel gas supply; right-hand thread connector is to be connected to the oxygen supply.
12. Speed regulating hand wheel: calibration range of the hand wheel is "0 to 10", corresponding machine speed adjustment is between 0 and 1000 mm.
Technical parameter
Weight | 7.5 Kg |
Machine dimension | 390x130x200mm |
Speed control | mechanical speed regulation |
Compressed air pressure | 0.55 Mpa(Kg/cm2) |
Cutting speed | 100～1000 mm/min |
Cutting thickness | 6～60 mm/min |
Groove angle | 0-45 Groove angle |
Diameteral of cutting circle | ø50-ø550mm |
Tip | G02(acetylene),G03(propane) |

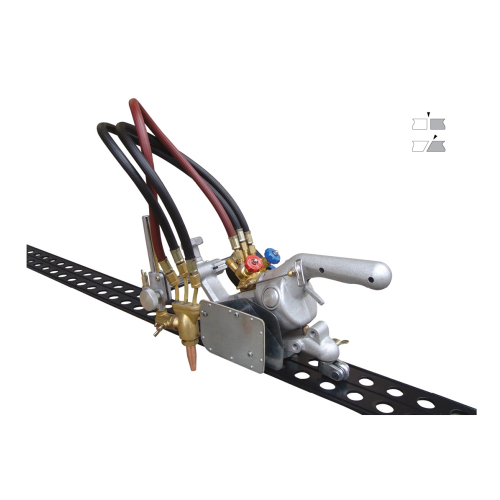

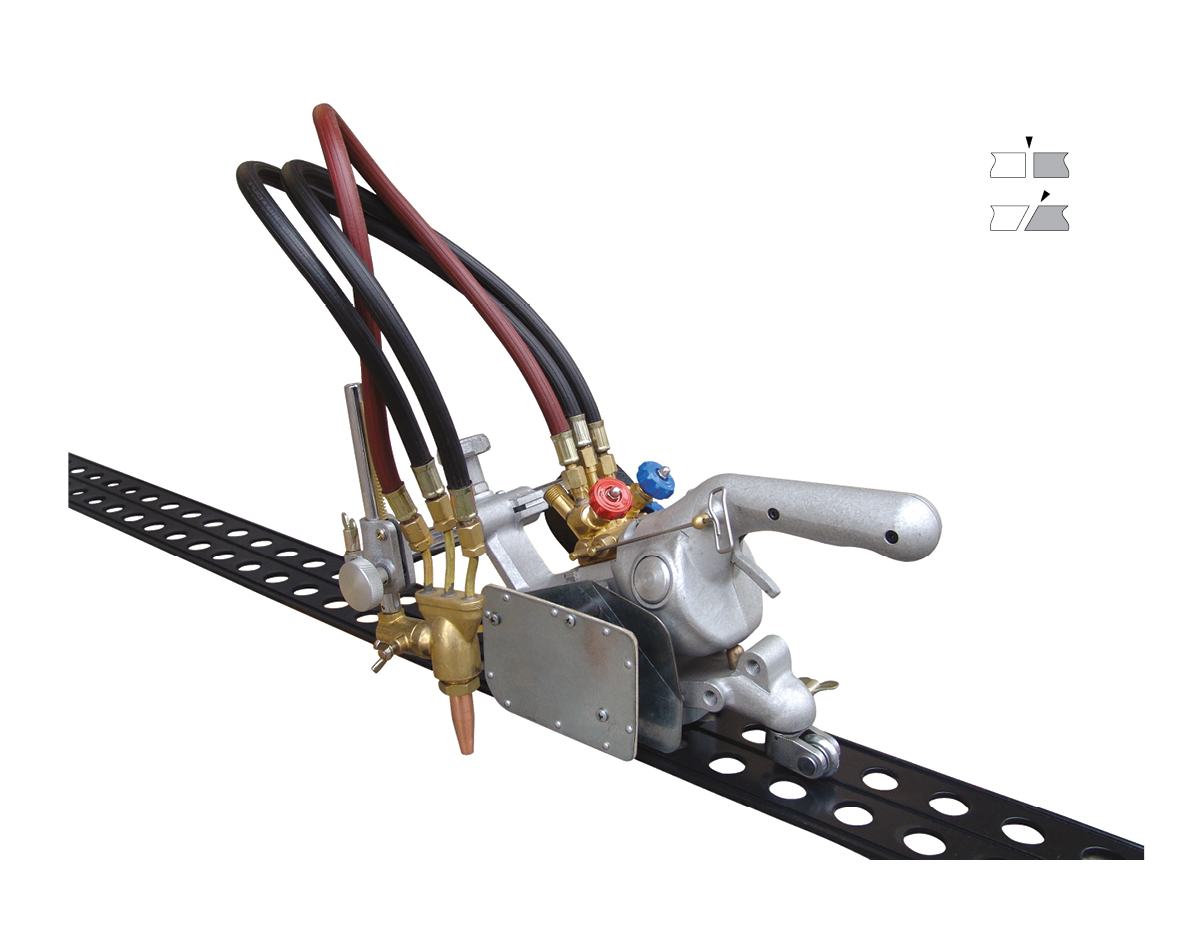

Picture for reference
