Portable Intersecting Line Cutting Machine For Alloy Steel/Cu/Al Material Cutting

Equipment introduction

1, the tube plate machine portable horizontal effective cutting width of 1.3 meters, effective cutting length of 3 meters (length can be extended), can be used for tube and plate, practical, cost-effective;

2, Shanghai Jiaoda board and tube integrated CNC system F2300BX, 10.4 inch LCD screen;

3, with the domestic expert version of nesting software, with common edge, bridge function;

4. Automatic arc voltage adjustment and plasma power supply can be added to achieve dual use of flame and plasma.

5, intersecting line flame perforation cutting carbon steel 5-40mm;

6, plasma cutting thickness depends on the plasma power supply;

7, the power supply of domestic brands or the United States Haibao power supply, temporary load rate of 100%, can continue to work for a long time; The price gap of the power supply is very large, and the quality of the power supply directly affects the cutting effect;

Intersecting line cutting parameters

1, can cut steel pipe diameter 30-300mm;

2, effective cutting pipe length 3m, can be extended;

3, plasma arc voltage automatic adjustment;

4, chuck box with servo drive; Better stability;

5, Optional two axes without bevelled round pipe nesting software: powerful, easy to use, suitable for pipe truss or fluid pipe processing.

Selection reference

CNC cutting machine selection steps, the user needs to be from the cutting format size, structural form, cutting mode, adjustment mode and other aspects to consider comprehensively.

1, the size of the format: determine the effective length and effective width of the plate to be cut, as well as the approximate thickness range;

2, structure start: the structure of the equipment has portable type, gantry type, desktop, tube plate integrated machine four kinds.

The portable type has the advantages of simple structure, convenient equipment movement and installation, no need to occupy a fixed plant, and low equipment cost. However, due to the limitation of its structure, the transverse cutting width is limited, and the rigidity is poor when cutting at high speed. Gantry cutting machine, because it is a gantry support mode, so the equipment rigidity is good, can achieve the horizontal 3-8m span. Equipment installation requirements are high, need to occupy a special workshop area, is characterized by long-term stability.

Table cutting machine is an integral structure, easy to move in place, but the size of the cutting format is limited to a certain extent.

Tubeboard integrated machine can achieve the cutting function of flat plate and pipe in one, a multi-purpose machine, practicability, relative to the configuration of flat plate machine and intersecting line machine, the input cost is low and the cost performance is excellent.

3, cutting method: cutting method can be classified from different angles,

Flame cutting, plasma cutting, flame and plasma dual-purpose cutting machine;

Plasma dry plasma cutting, underwater plasma cutting;

CNC and straight cutting machine;

CNC intersecting line and plate integrated cutting machine.

(1), flame and plasma cutting

Flame cutting: It is a traditional thermal cutting method, which is suitable for high-quality cutting of medium thick carbon steel plates.

Plasma cutting: suitable for cutting carbon steel plate, stainless steel plate, non-ferrous metal, cutting speed is faster than the flame.

(2) intersecting line cutting

In order to meet the user to cut the intersecting line of round pipe, we have two different ways: one is a special intersecting line cutting machine; One is the intersecting line cutting special parts, which can be configured on the gantry CNC cutting machine to complete the intersecting line cutting.

The former is suitable for large-scale professional intersecting line cutting, and the latter is suitable for realizing a multi-purpose machine when the batch is not large, in order to reduce equipment investment and site occupation.

4, adjust the way

Whether it is flame or plasma cutting, it is necessary to ensure that the height of the cutting nozzle from the steel plate is in a good state, so as to obtain a good cutting effect and a long service life of the cutting nozzle.

There are several ways to adjust the height

one Raise the handle

The height of the hand handle is adjusted by using the hand wheel to drive the rack on the cutting torch through the gear;

2. Power button up

The electric button is raised by operating the button, and the cutting torch is driven up and down by the adjusting motor;

In the above two ways, the operator directly controls the lifting of the cutting torch.

3. Capacitive automatic elevation

Capacitive automatic heightening for flame cutting.

The flame cutting is equipped with capacitive automatic adjustment. On the one hand, the cutting torch can be automatically adjusted according to the change of the level of the steel plate to ensure that the height of the cutting nozzle from the steel plate remains constant; On the other hand, the end of preheating, open cutting hyperbaric oxygen, there will be iron slag backsplash, at this time it is easy to block the cutting nozzle, when equipped with automatic adjustment, the cutting torch will be automatically lifted before cutting oxygen, after the iron slag backsplash, and then move down the cutting torch, so as to reduce the cutting nozzle blockage phenomenon. However, due to the high temperature in the flame cutting process, the induction ring will melt, and the service life is not long, so there is no special need not to recommend;

4. Arc pressure automatic elevation

Arc voltage automatic elevation for plasma cutting.

Plasma cutting, on the one hand, the cutting speed is fast, on the other hand, the arc light is very harsh, therefore, by the operator at any time to observe the height of the cutting nozzle from the steel plate, timely adjustment, not only the reaction speed can not keep up, on the other hand, the eyes can not bear. This is especially true when the sheet is thinner. Therefore, under normal circumstances, it should be equipped with automatic arc voltage adjustment. Our equipment arc voltage automatic adjustment is the standard configuration, regardless of whether the user explains, will be equipped with plasma arc voltage automatic and plasma collision prevention device;

Technical parameter

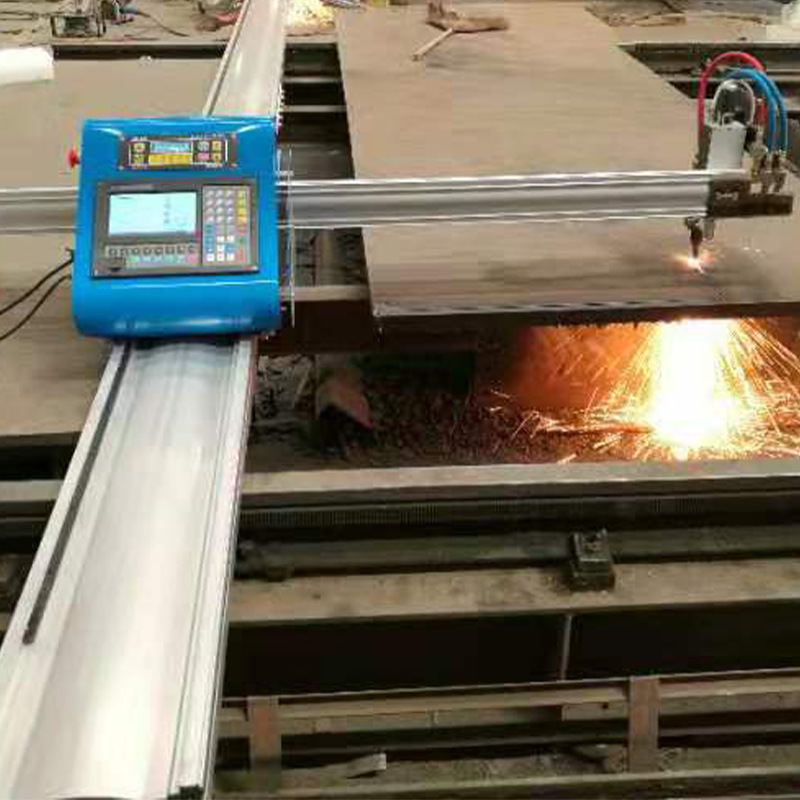

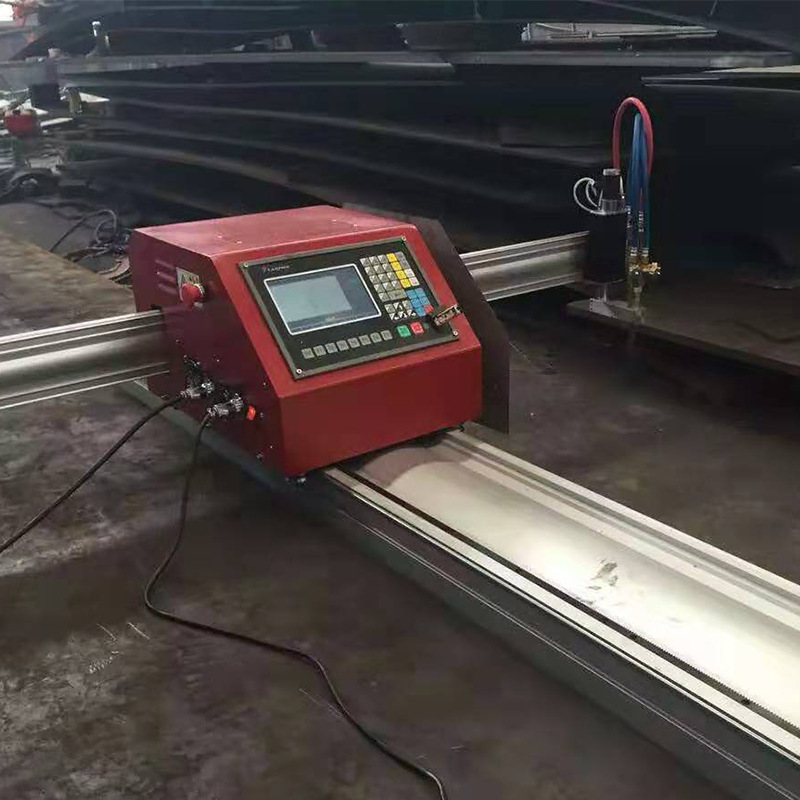

Picture for reference
