Semo-automatic Portable Small Diameter Cycle Shape Acetylene Propane Gas Cutter
Introduction
“CG2-200” semiautomatic cutter is made of A-alloy. By the adsorption affinity of permanent magnet, the machine can cut circle on horizontal surface or inclined plane. It is easy to do groove cut in the range of 0～45°. The gas distributor adopts rotary type to avoid the enwinding of hoses. The machine is used to cut works, such as circle and flange. The machine improves efficiency, assures the quality and decreases the working strength.

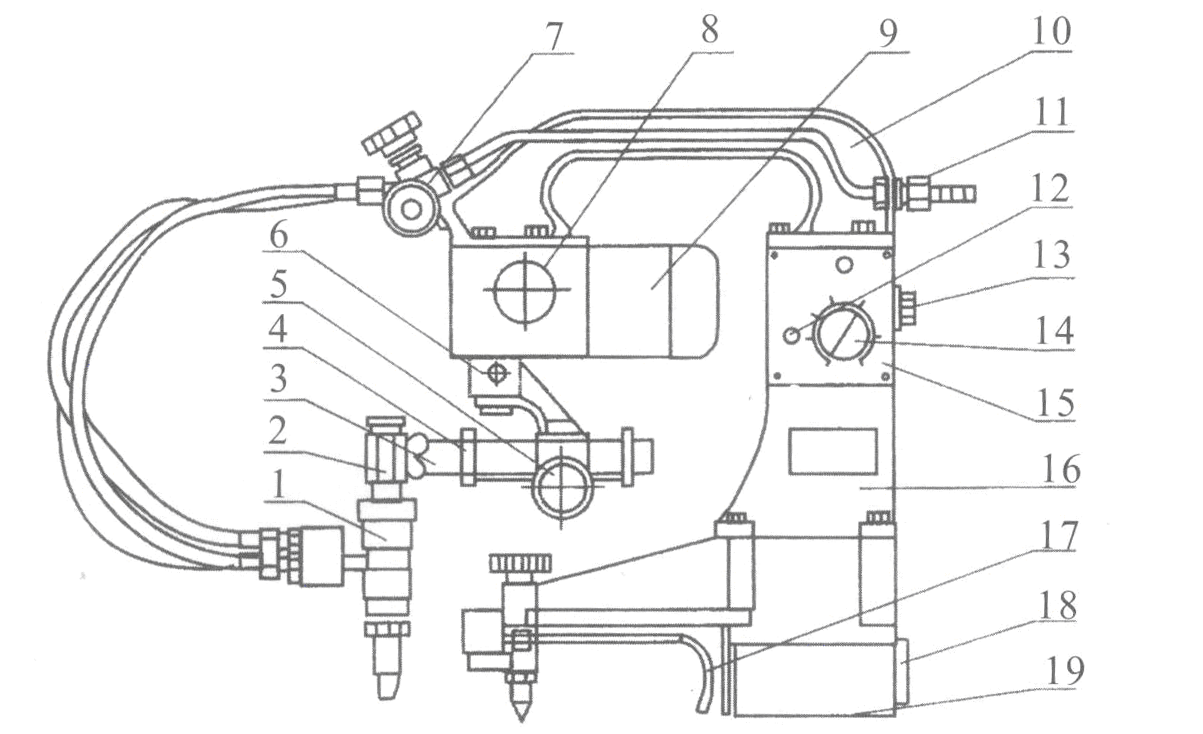

Structure
1. Torch
2. Lift regulating sleeve
3. Radius bar
4. Locating ring
5. Cross adjusting handle
6. Rotary frame
7. Gas distributing valve
8. Reduction box
9. Motor
10. Beam
11.Oxygen and acetylene connector
12. Power switch
13. Outlet
14. Speed controller
15. Electric panel
16. Body
17. Centering bar
18. Magnetic seat switch
19. Magnetic seat
Technical parameter
1. Machine dimension | 500×350×420（Length ×Width ×Height） | |
2. Weight（Body） | 15 KG | |
3.Cutting range | Diameter of cutting circle | Ø40～Ø200mm |
Thickness of low carbon steel plate | 5～50mm | |
Cutting rotary speed | 0.14～3.3 r/p/m | |
4.Motor | S261 DC110V 50HZ | |
5.Power | AC220V 50HZ | |

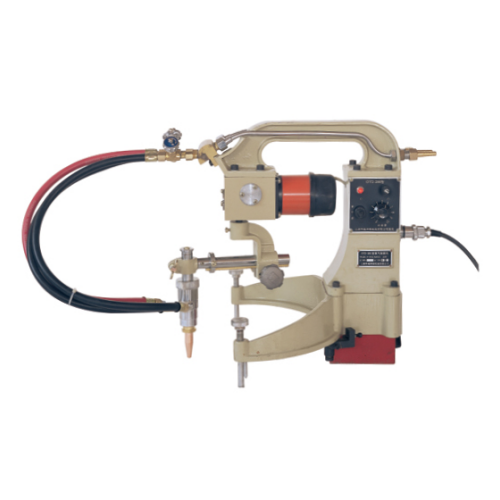

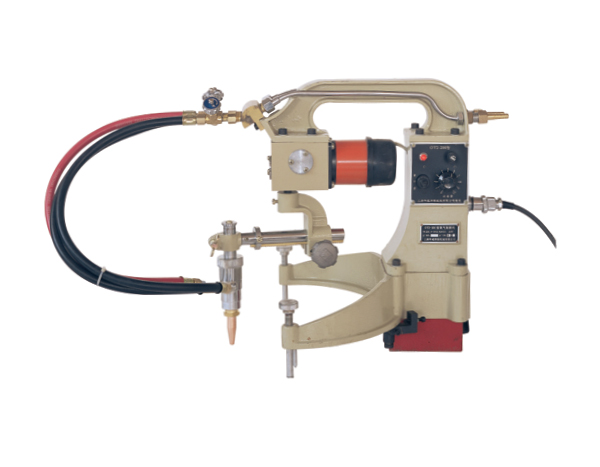

Picture for reference
