Small High Precision Four Column Cutting Machine For Non-Metallic Materials Cutting

Uses and features

1, this machine is suitable for cutting all kinds of non-metallic materials.

2, using liquid as a medium to transfer energy, high efficiency, fast punching speed, low noise.

3, the main machine adopts a single cylinder, five columns and three plate structure, the movable plate and the working face parallel high precision, four precision guide sleeve to make the vertical precision of the downward pressure,

4, the press plate is automatically slow cutting when the contact die is pressed, so that there is no dimensional error between the top layer and the bottom layer of the cutting material

5, the central oil supply automatic lubrication system to ensure the service life and accuracy of the machine,

6, motor, oil pump external, its ventilation and cooling conditions are good, safe operation, long service life

7, small motor power, low energy consumption.

Mechanical configuration:

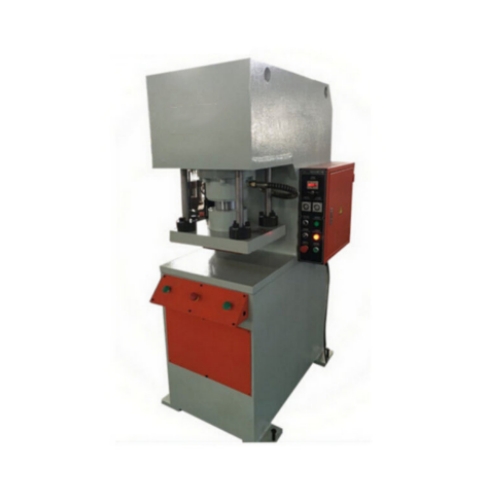

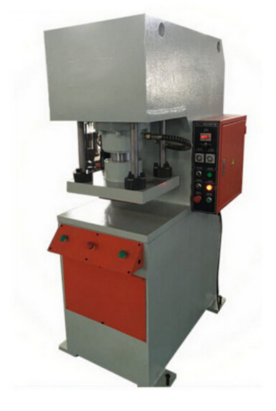

Picture for reference
