Sponge Hydraulic Plane Cutting Machine
Application
Hydraulic flat cutting machine is suitable for punching and cutting all kinds of non-metallic materials, such as cloth, leather, sponge, EVA, film and so on
Features
1. The machine is installed with a central oil supply lubrication and collection of reflux filtration system, which can fully lubricate the spindle and extend the service life of the machine.
2. The cutting plate area is large, and large size materials can be blanked.
3. Safe and reliable operation with both hands.
4. The setting of cutting depth is simple and accurate.
5. The return height of the pressure plate can be set arbitrarily, reducing unnecessary empty travel.
6. Special specifications can be customized
Technical parameters
Maximum cutting force | 300KN |
Width (mm) | 60-160 |
Table area (mm) | 1600*500 |
Stroke adjustment range (mm) | 5-100 |
Motor power | 2.2KW |
Machine weight (approx.) | 1800kg |

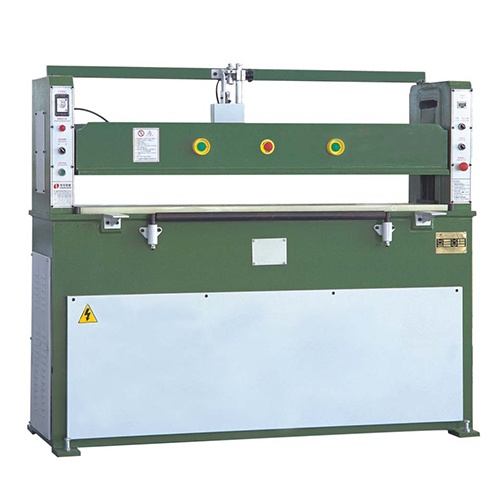

Picture for reference
