40T Automatic Continuous Conveyor Belt Cutting Machine For Leather/Fabric/Cloth Die Cutting

Features

1. Automatic Cutting Machine is applicable to continuous and large-batch cutting of nonmetal materials such as fabric leather, carpet, rubber, film, foam and cloth etc. in large-scale factories by die cutter.

2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed.

3. Can work in fully automatic, semi-automatic, manual mode;

4. The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine.

5. The central automatic lubrication system can guarantee the machine precision and enhance machine durability

6. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.

7. The unwinding system can be designed based on customer's requirement. Automatic feeding flat bed table supports materials in sheet, and roll unwinding system supports materials in roll;

8. The device with cutting board and fixed mold to make the operation more convenient.

9. Products of special specifications can be customized.

Specification

Max Cutting Force:40T

Stroke adjustment: 5-150mm

Cutting plate: 650*650mm

Cutting area: 2400*700mm

Motor power:3KW

Gross Weight:2300KG

Motor power: 220v 60Hz 3phase

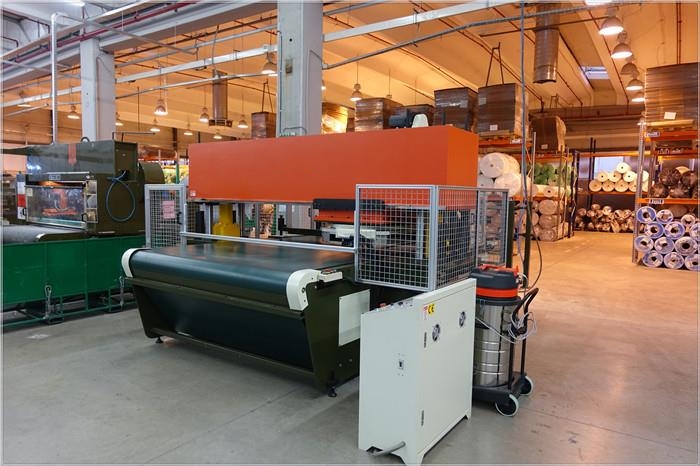

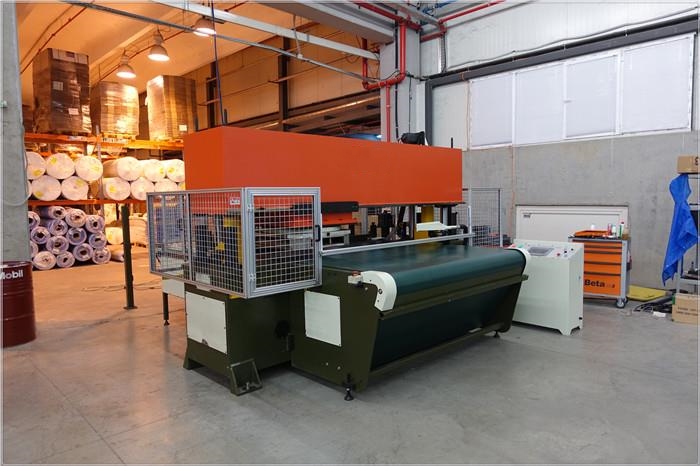

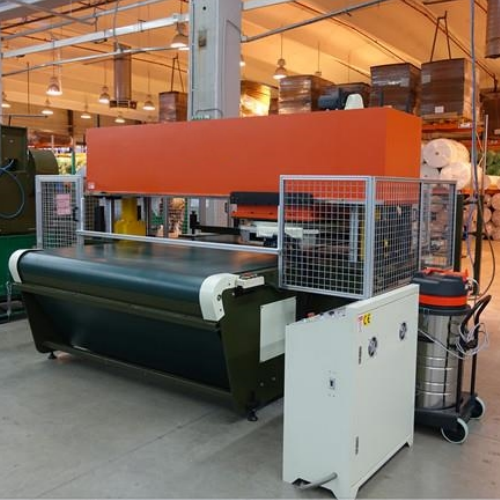

Picture for reference
