CNC Four-Column Conveyor Belt Cutting Machine For Multi-Layer Sheet Material Carpet Cutting
Introduction
This machine is mainly suitable for continuous blanking operations of non-metallic coil materials of the same specification and in large quantities by forming die molds. For example, it can be applied in industries such as camouflage fabric, shoe uppers, shoe surfaces, polishing discs, wheel blades, automotive interiors, carpets, and artificial flowers.
Technical parameters
Model | XCLP3 | ||||
Pressure (T) | 35 | 50 | 60 | 120 | 150 |
Plate size (mm) | 1600*650 | 1400*700 | 1400*900 | 1200*780 | 1400*1000 |
Workplate size (mm) | 1600*700 | 1400*750 | 1400*980 | 1200*790 | 1400*1200 |
Stroke (mm) | 140 | 140 | 140 | 140 | 140 |
Travel (mm) | 190 | 190 | 190 | 190 | 190 |
Power (KW) | 3.7 | 5.5 | 7 | 9 | 11.5 |
Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Dimension (mm) | 3700*2150*1400 | 3750*1900*1430 | 3980*1900*1480 | 3790*1800*1610 | 4200*2000*1650 |

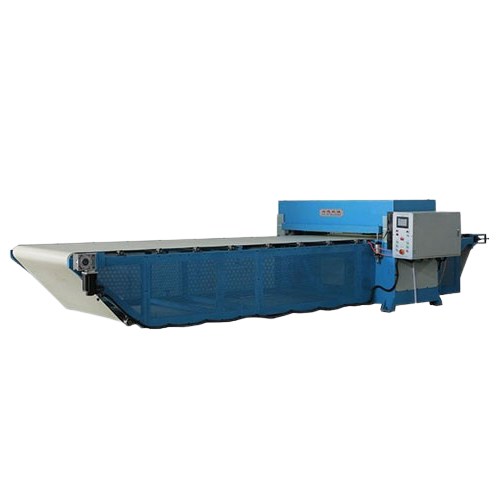

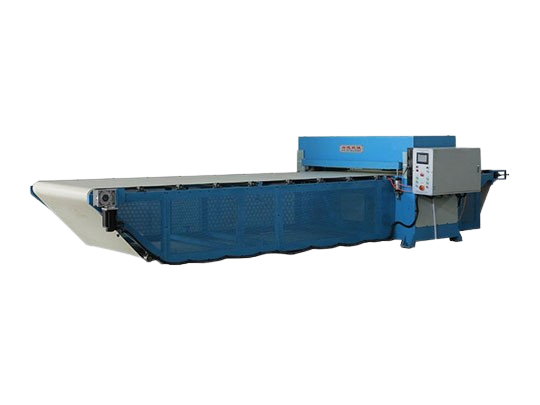

Picture for reference
