Automatic Head-face Profiling Gas Cutting Machine
Introduction
HK-93-II is a kind of portable automatic gas-cutting machine, and you can know from its name “ Eagle cutting machine” that it is characterized by rapid moving、convenient、and easy to fast turning .It is widely used and has a proper structure and good looking. Its operability and durability has been well improved after years of using and under some customers’ guide

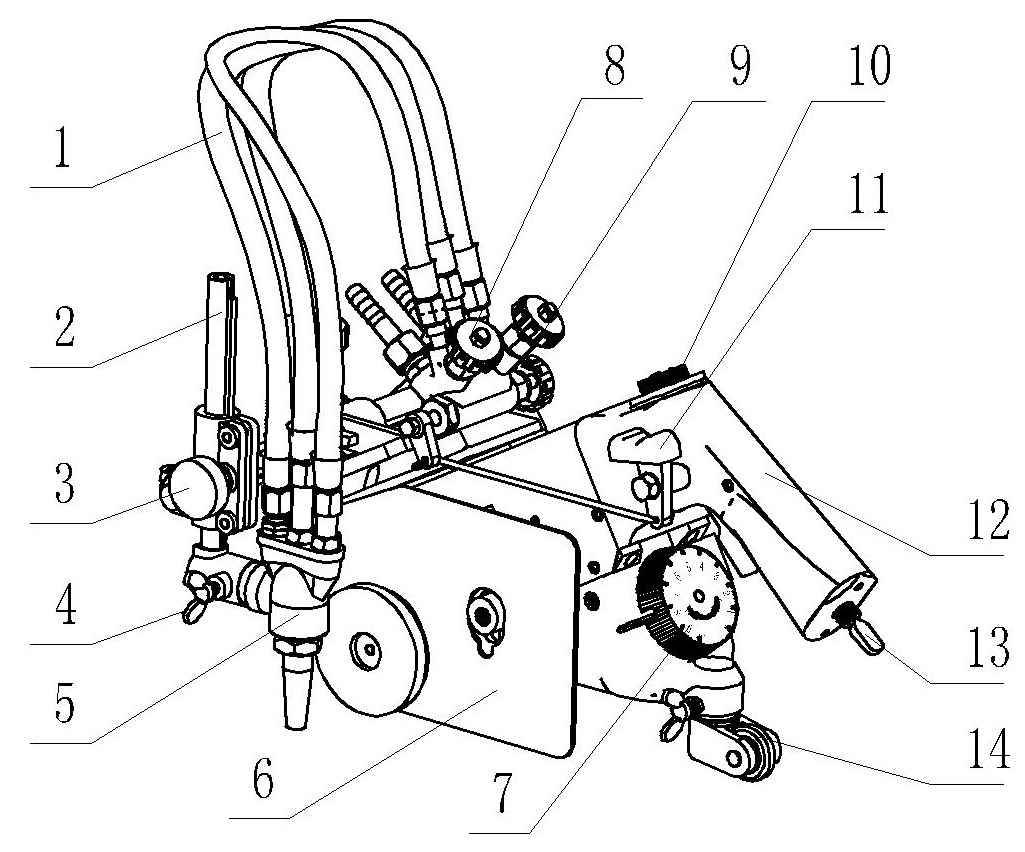

Structure
1. Adjusting handle: When traversing the handle, the torch moves left or right.
2. adjusting handle: When traversing the handle, the torch moves up or down.
3. Contrate gear rack
4. Thermal baffle: Stop the thermal diffuse outside.
5. balance-weight
6. two-port valve: Adjust the gas-flow rate.
7. On-off handle: Hold tightly the machine is off and hold loosely the machine is automatically on.
8. Adjusting handle: Adjust the moving speed.
9. Power socket
10. Cutting oxygen switch.
11. Gas delivery hose.
12. Normal-reverse switch.
13.Universal wheel
14. cutting nozzle
Technical parameter
1 Weight (body) | 8.5 KG |
Accessory | 3.8 KG |
2.Machine dimension | 420×290 ×250H（mm） |
3.Speed control | SCR control |
4.Power source | AC 220V±10％ |
5.Cutting speed | 50～1000㎜/min |
6.Cutting thickness | 5-30㎜ |
7.Bevel angle | 0～45° |
8.Diameter of the cutting circle | Φ50～Φ550㎜ |
9.Tip | G02(for acetylene)orG03(for propane) |
10.Motor | DC110V 50HZ 30W 4200RPM |

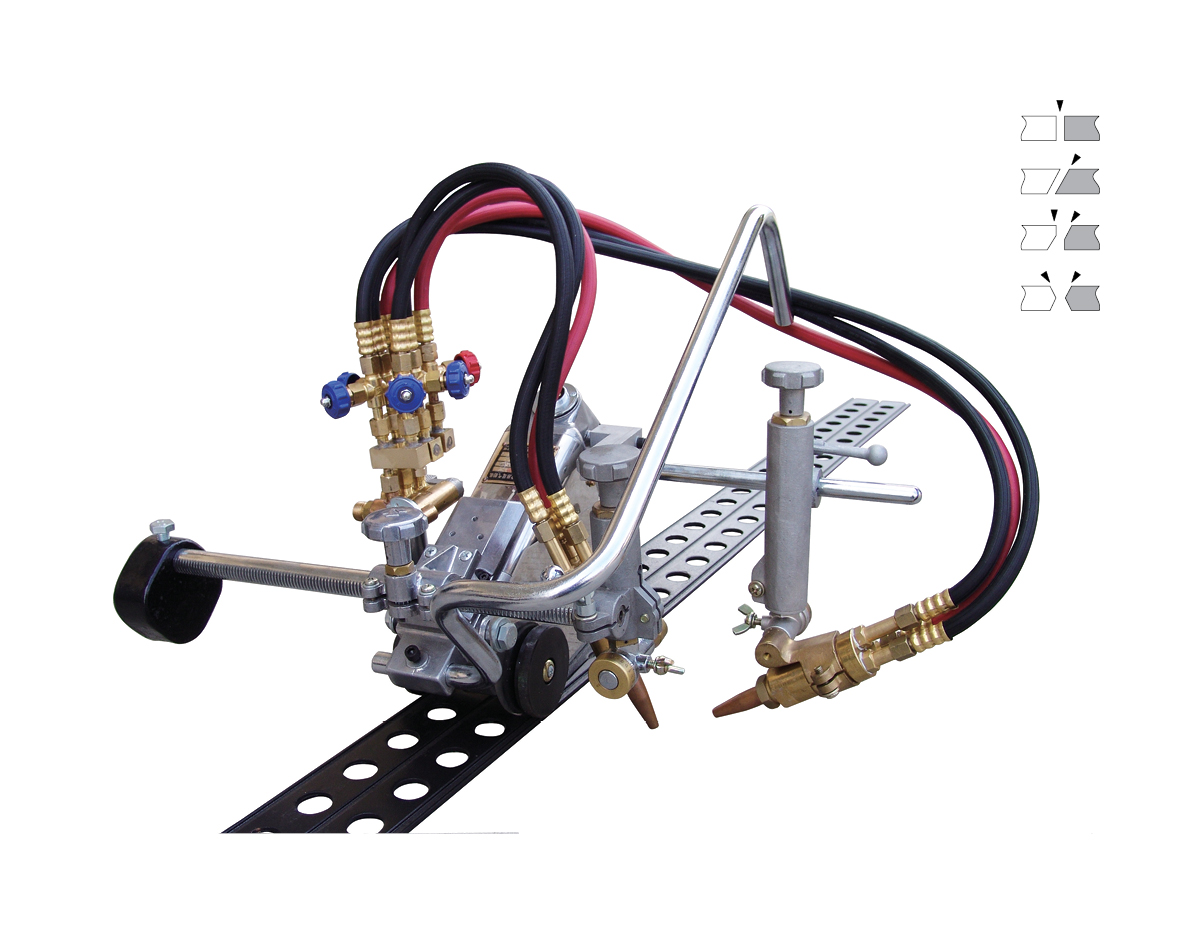

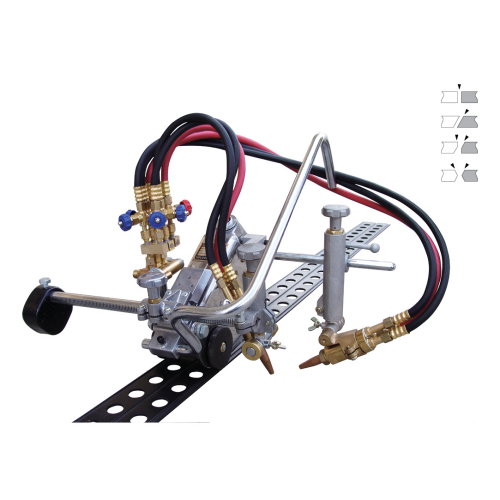

Picture for reference
