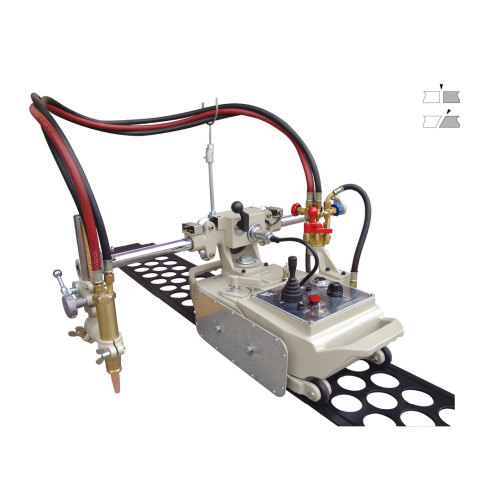

Automatic Right Angle Square Stainless Steel Gas Cutter Machine

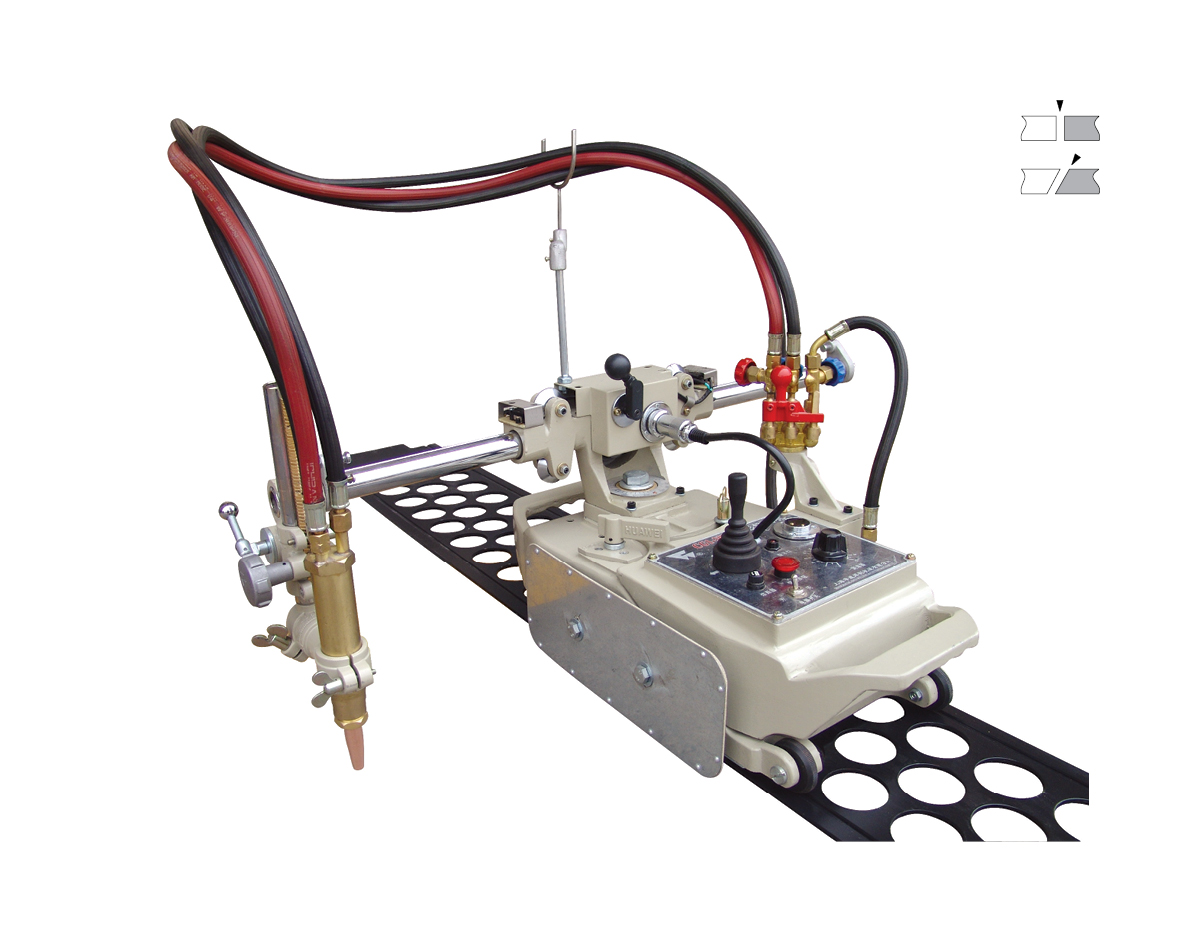

Introduction
“CG1-30F” squire cutter is designed according to square or parallel cutting works. It is made up of cross cutting device, longitudinal cutting device, control case, gas distributor and torch. There are reducer casing, motor, and clutch in the cross cutting device. The cross cutting device is equipped on the upper half of the main machine and it walks on the rail by four roller wheel. The four standing bars of roller wheel do left-right parallel moving because gear drives gear rack.
Structure

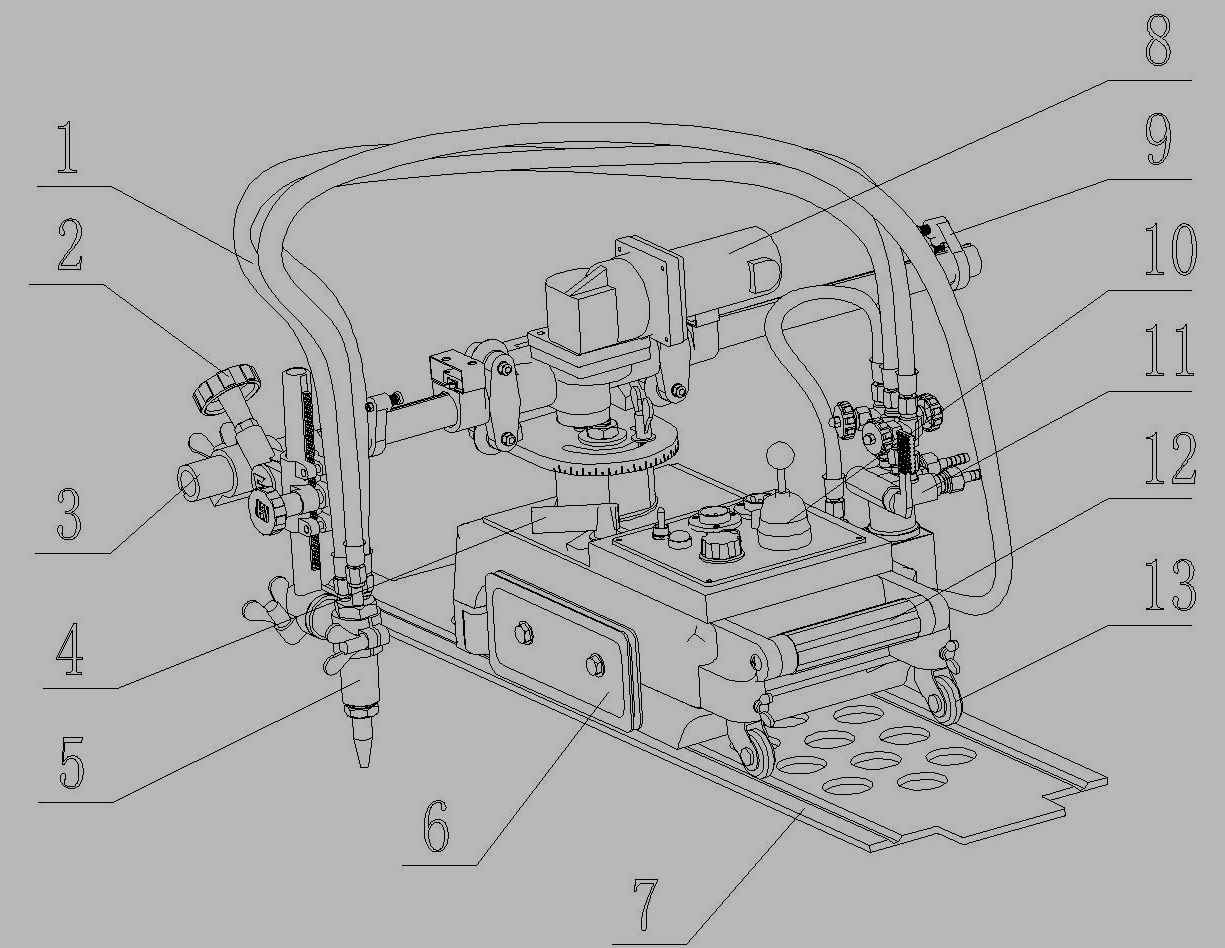

1. Torch
2．Hoses: Connect them between distributor and torch to transfer gas.
3. Cross-adjusting hand wheel: To control torch do cross moving.
4.Rail
5. Parallel mobile bar
6.Reducing motor of cross cutting device
7.Stroke dog
8. Thermal baffle: To prevent the heat diffusing into the inner of machine.
9. Fast distributor: You only need adjust a time and needn’t to adjust on the next time.
10.Hand knob: To move machine
11. Four-way switch: To change the cutting direction and control cutting oxygen.
12. Clutch knob : “Close” when you turn it on left, “open” when you turn it on right .
13．Universal wheel
Technical parameter
1.Weight | 24 kilograms |
Accessory(parts of guide rail) | 10.5 kilograms |
2. Machine dimension | 450mm×800mm×40mm(main machine)； |
3. Speed control | Silicon control |
4. Power source | AC 220V±10％ |
5. Cutting speed | 50～750㎜/min |
6. Cutting thickness | 5-100㎜ |
7.Groove angle | 0～45° |
8.Maximal distance of cross cutting | A=350MM |
9. Maximal distance of longitudinal cutting | B=1450MM （standard） |
10.Maximal angle of cross cutting | 0～45° |
11.Tip | G02(acetylene)or G03(propane) |
12.Motor | 1) longitudinal motor 110V 50HZ 30W 3600r/min 2) cross motor 110V 50HZ 24W 2200r/min |
