Automatic Flame Cutter Machine For 300mm Thick Metal Plate Cutting
Introduction
“GCD-300”thick plate cutter is a kind of light cutter. Intermediate pressure gas and high pressure oxygen are used in the machine which can cut 6 to 300mm thick plates. The cutter is used in line cutting with efficiency. The structure of cutter is compacted and the cutter is easy to operate, free to move, safe to use. Cutting needs short auxiliary time. The cutter is used in heavy-duty mechanical industry, steel plant and shipbuilding industry.

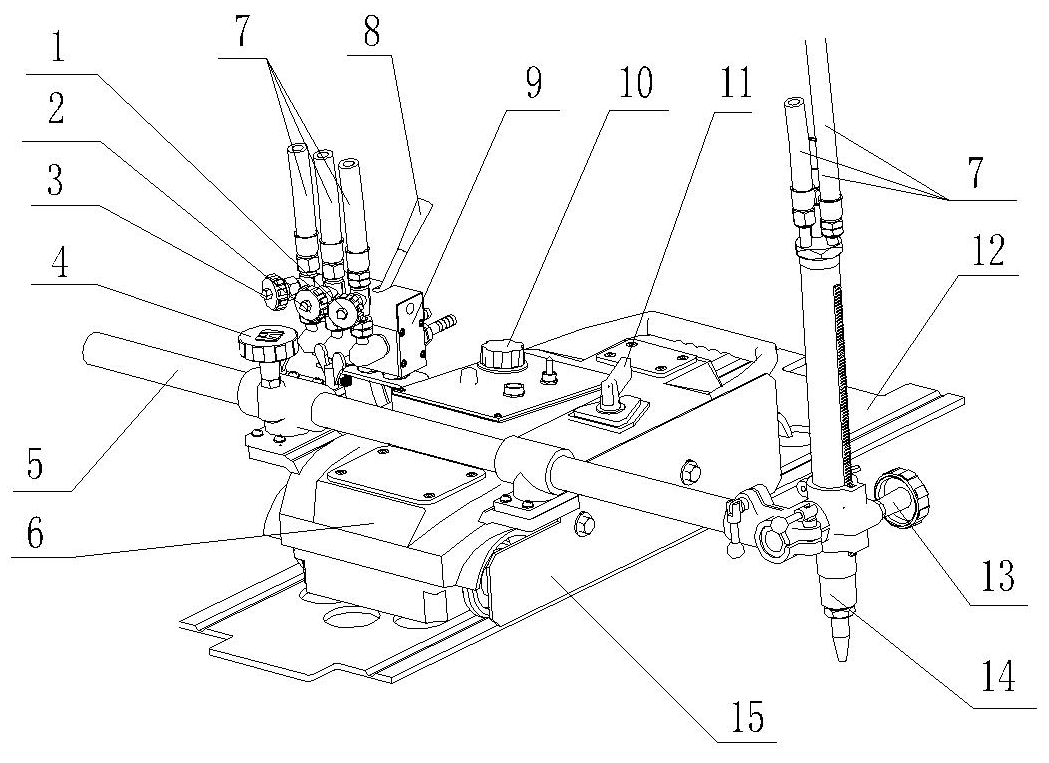

Structure
1. Gas two port valve：Adjust gas flow
2. Preheating oxygen valve
3. Cutting oxygen valve
4. Traversing hand wheel： Rotate hand wheel to make torch move horizontally.
5. Traversing gear rack
6. Body
7. Hose for delivering gas
8. Quick switch handle: Handle has three step switches. They are close preheating and cutting. If the step is close, all gas is close.
9. Gas distributor
10.Adjusting speed hand wheel：Adjust speed of machine walking
11. Clutch handle
12. Jaw track
13. Torch adjusting hand wheel: Rotate hand wheel to adjust distance between tip and steel plate.
14. Torch
15. Thermal baffle: Impede heat diffusion to machine inner.
Technical parameter
1. Weight | 23 KG |
2. Machine dimension | 510mm×1270mm×670mm |
3. Speed control | SCR control |
4. Power source | AC 220V±10％ 50HZ |
5. Cutting speed | 50~750/mm/min |
6. Cutting thickness | 6-300mm |
7. Bevel angle | 0-45° |
8. Diameter of cutting circle | ø200-ø2000mm |
9. Tip | G02(for acetylene),G03(for propane) |
10. Motor | DC 110V 50HZ 30W rotation speed 4200r/min |

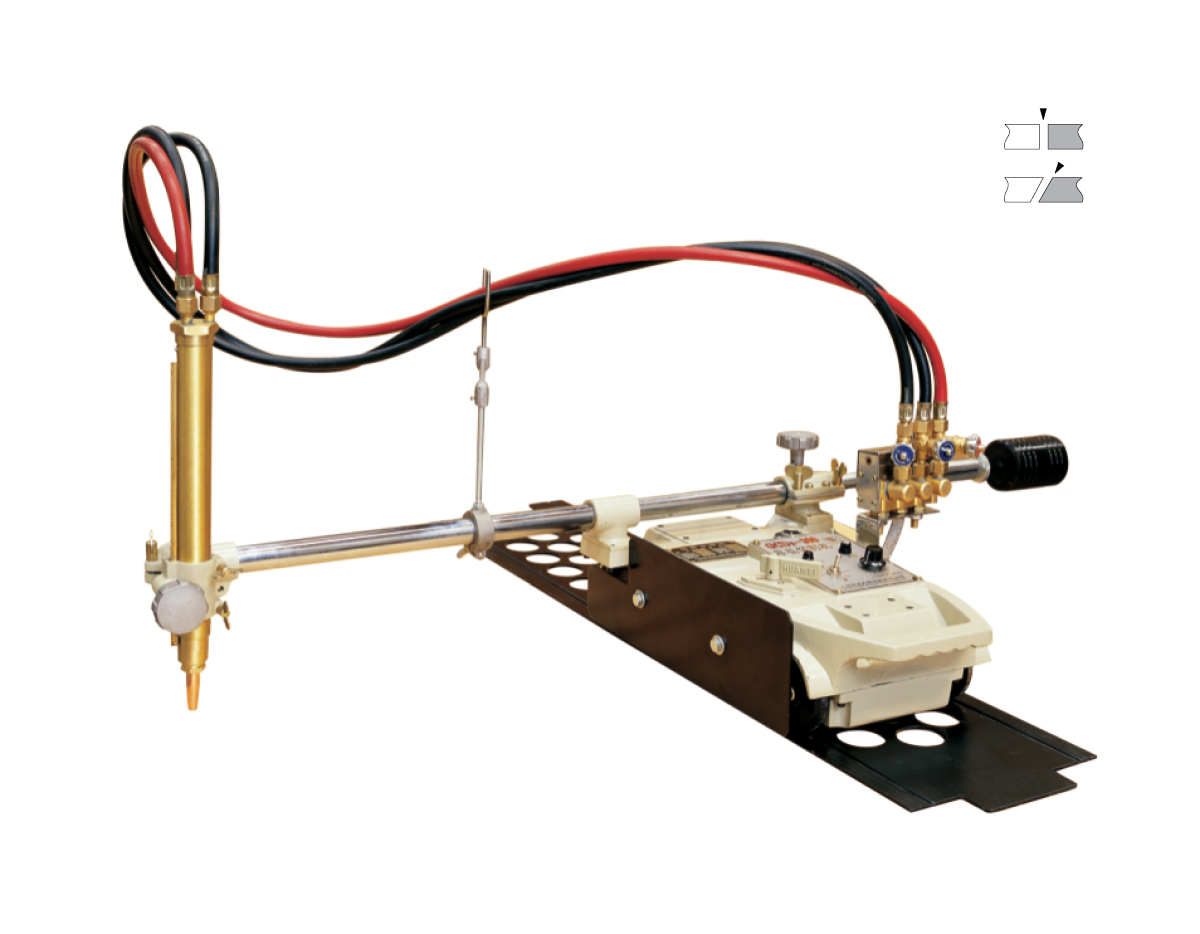

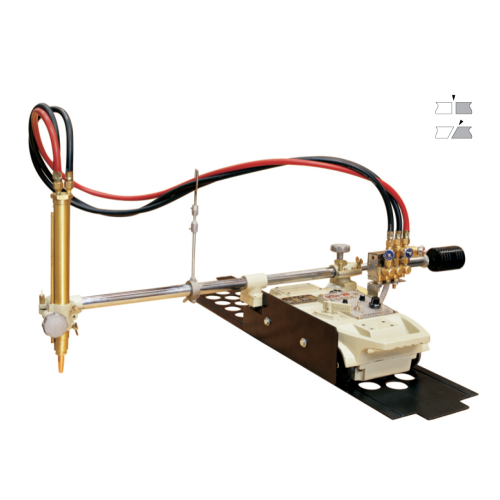

Picture for reference
