Multi-heads Straight Gas Cutting Machine With 3 Torches
Introduction
“GCD series” multi-heads straight cutter is one of main products of hua wei company. It is designed well and looks beautifully. We do technical innovations and optimizations for it based on “CG1-30”. It walks smoothly. Pipeline unit assembly is equipped with high-speed switch, which can control cutting gas. Multi-torches can improve the efficiency. This machine adopts new material, which improves the serviceability, durability, heat-insulating property and practicability.

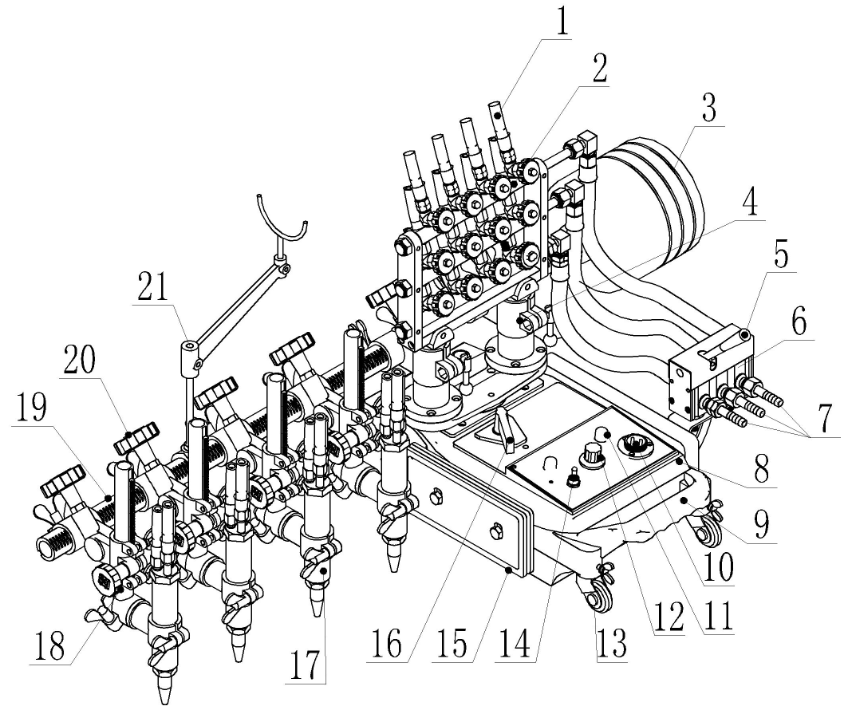

Structure
1. Hoses
2. Gas distributor
3. heavy punch
4. bracket
5. High-speed switch knob：Three grades: close, preheating and cutting. If it is on “close” position, all gas is off.
6.Fast distributor
7. Gas joint
8. Main machine
9. Hand knob
10. Electric outlet
11. Fuse
12. Adjusting speed knob ：To adjust the speed of machine.
13. Universal wheel
14. Motor. Changeover switch
15. Thermal baffle: To prevent heat to diffuse into the inner of machine.
16. Clutch hand knob
17. Torch
18. Torch up-down moving unit assembly
19. Cross moving gear rack
20. Cross moving hand wheel
21.Hose bracket
Technical parameters
1. Weight | GCD3-100: 35kg |
GCD4-100: 40kg | |
GCD5-100: 50kg | |
2. Speed control | SCR control |
3. Power source | AC 220V±10％ 50HZ |
4. Cutting speed | 50～750/mm/min |
5. Cutting thickness | 6-50mm |
6. Cutting width | GCD3-100: 70-1000mm |
GCD4-100: 70-1100mm | |
GCD5-100: 70-1300mm | |
7. Amount of torch
| GCD3-100: 3 set |
GCD4-100: 4 set | |
GCD5-100: 5 set | |
8. Groove angle | 0-45° |
9. Tip | G02(acetylene),G03(propane) |
10. Motor | AC 110V 50HZ 30W 4200r/min |

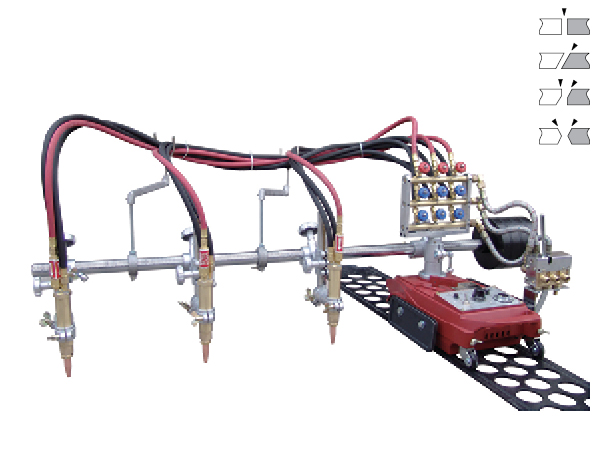

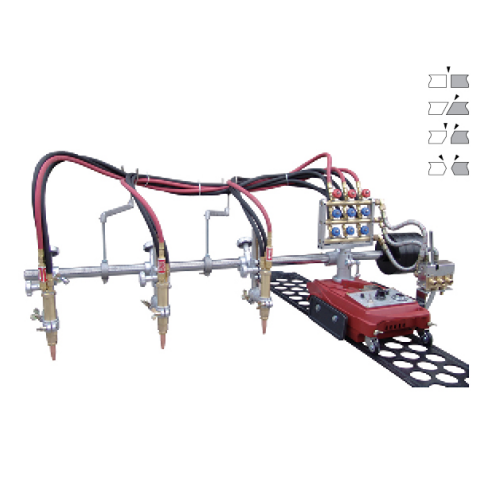

Picture for reference
