100mm Thick Stainless Steel Portable Multi Torch Oxy-Fuel Beveling And Cutting Machine
Introduction
“CG1-30SP-400” X beveling gas cutter is one of products. It is designed well and beautiful.We do technical innovations and optimizations for it based on the suggestions. This machine adopts new material, which improves the serviceability, durability heat-insulating property and practicability.The gas distributor adopts integrated flame failure control. You only adjust preheating flame and cutting oxygen one time. The performance of flame is kept in the next time.

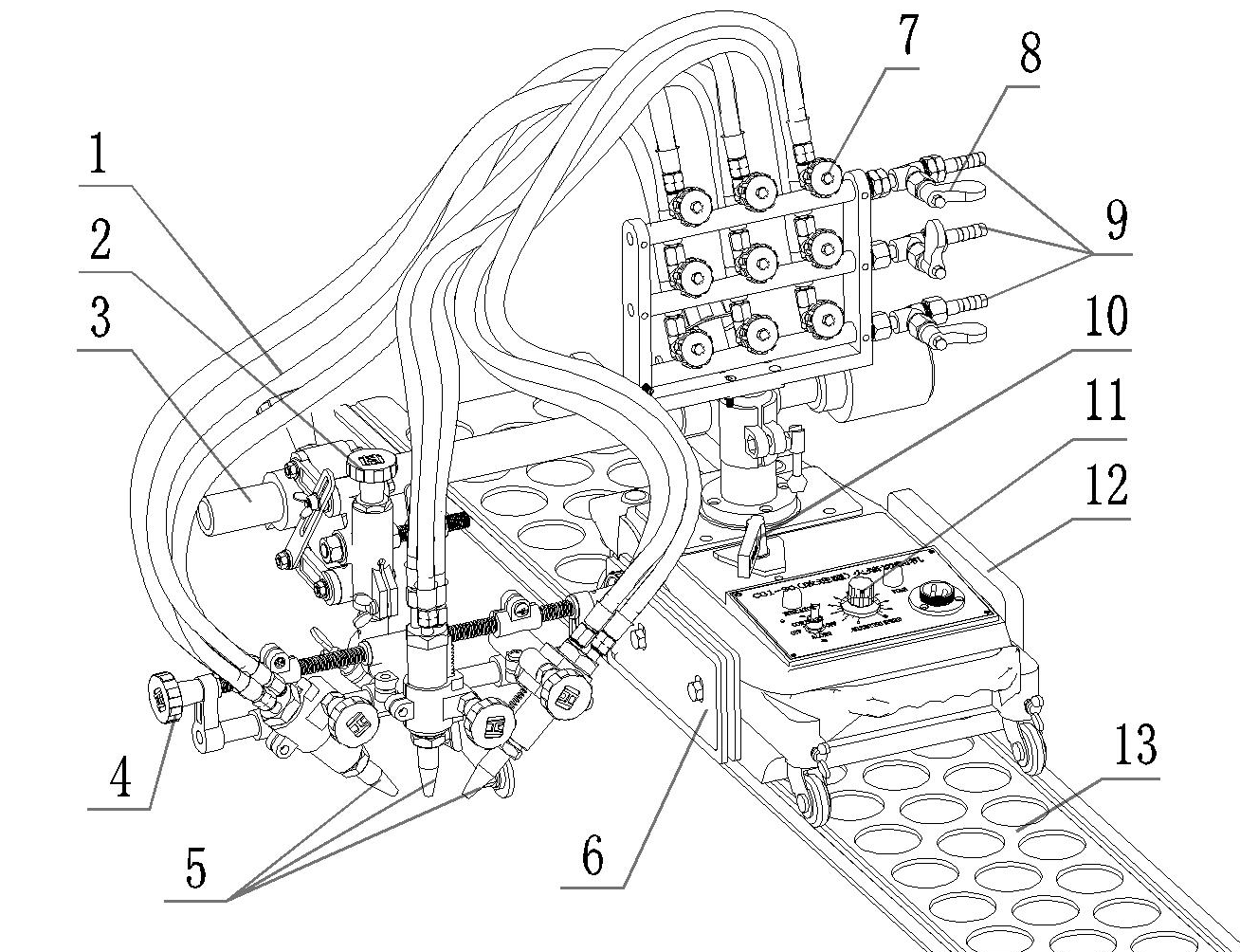

Structure
1. Hoses: Oxygen hose, Preheating oxygen hose and cutting oxygen hose
2. Cross moving hand wheel: To adjust horizontal position of torch.
3. Cross moving gear rack
4. Vertical adjusting hand wheel of torch
5. Tip
6. Thermal baffle: To prevent heat to diffuse into the inner of machine.
7. Fuel gas two-port valve: To adjust the flow.
8. total switch of gas distributor
9. admission junction: three groups
10. Clutch hand knob：“STOP” is declutched; “START” is combined.
11. Adjusting speed knob： It can increase the cutting speed along “0” toward “10” clockwise, and decrease the speed along “10” toward “0” anti-clockwise.
12. Heavy punch
13. Universal wheel
Technical parameters
1. Weight | 29.5 kilograms |
2. Machine dimension | 435mm×210mm×240mm |
3. Speed control | Silicon control |
4. Power source | AC 220V±10％ 50HZ |
5. Cutting speed | 50～750/mm/min |
6. Cutting thickness | 5-100mm |
7.Groove angle | 0-45 degrees |
8.Diameteral of cutting circle | ø200-ø2000mm |
9.Tip | G02(acetylene),G03(propane) |
10.Motor | DC 110V 50HZ 30W 4200r/min |
11.Sharp of bevel | V, Y, K, X |
12．Floating range of cutting torch | 0-55MM |

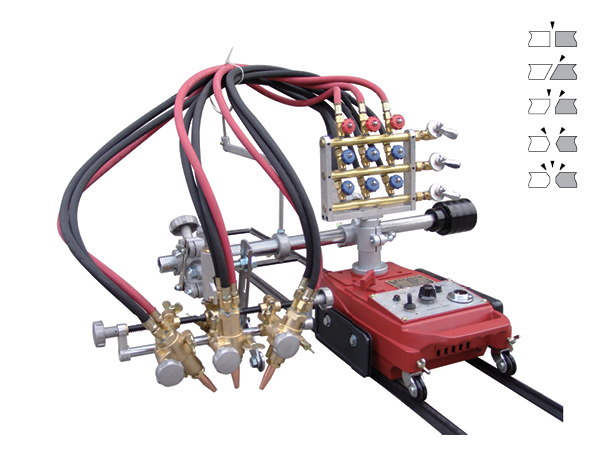

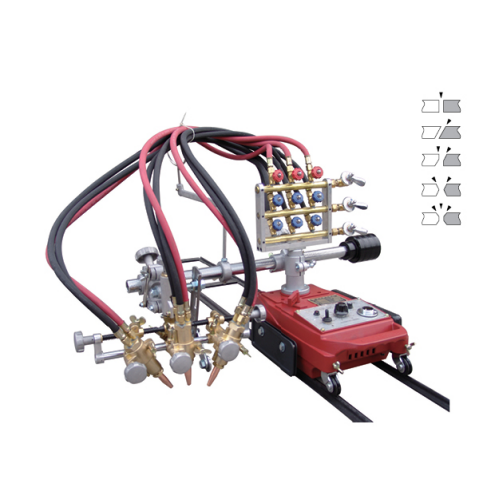

Picture for reference
