30mm Thick Alloy Sheet Compact Straight Line Gas Cutting Machine
Introduction
The main body is made of high strength by die-casting.It is light weight and compact structure to ensure the machine becomes ideal portable machine.Speed system adopts mechanical adjustment which can keeps running continuously under high temperature.Advanced motor with fan for coolling.Circular rail can be equipped as required for circular piece cutting(optional).

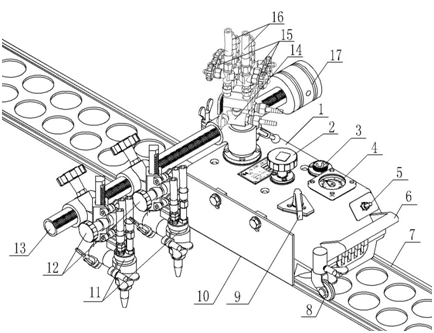

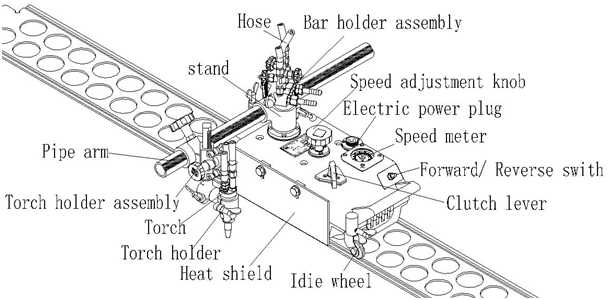

Structure
This is Similar to HK-12MAX-I
Technical parameter
1.Weight(body) | 10kg |
2.Machine size | 440mm×205mm×125mm |
3.Wheel distance | 160mm |
4.Power source | AC 42V, 110V , 220V |
5.Reduction gear | Double cone system |
6. Cutting speed | 80mm/min-800mm/min(50Hz) 100mm/min-1000mm/min(60Hz) |
7.Cutting edge shape | I V (45) |
8.Cutting thickness | 5mm-30mm(102or106 #0,1,2) |
9.Motor | 1500r.p.m/1800r.p.m(9w/10w) |

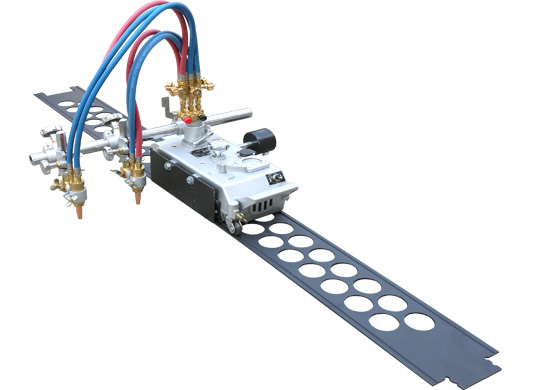

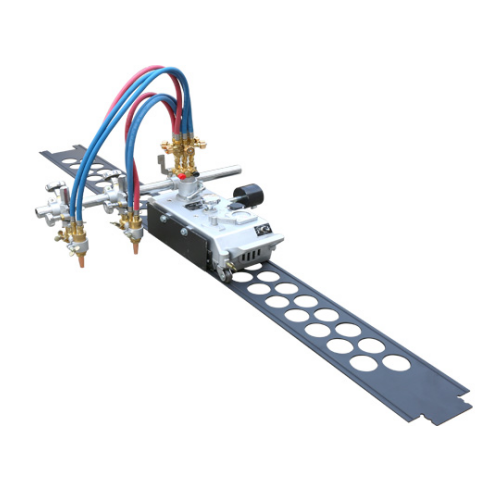

Picture for reference
