High Efficiency Rail Track Guide Flame Cutting Machine For Aluminum Sheet Cutting
Introduction
1) Excellent operability
2) Unrivaled heat resistance and durability
3) Excellent tractive force
4) The well-balanced center of gravity ensures stable traveling.
5) The motor, which is the motive force of traveling, is a compact high-efficiency motor developed after a long period of hard work, excelling in heat resistance and durability, and its operation is exact at all times.
6) The speed change mechanism is composed of parts designed on the basis of approx. 5000-hour trial loaded operation particulars.
7) The side of the machine is of a heat prevention plate construction, In comparison with other types of machines, the temperature rise of the machine surface is gradual, facilitating the transportation of the machine after use over an extended period of time.
8) A heat preventive plate is used as a bottom plate.
9) The simplified mechanism facilitates maintenance and inspection.
10) Cutting operation can be started smoothly.
11) There is no speed change due to temperature rise.

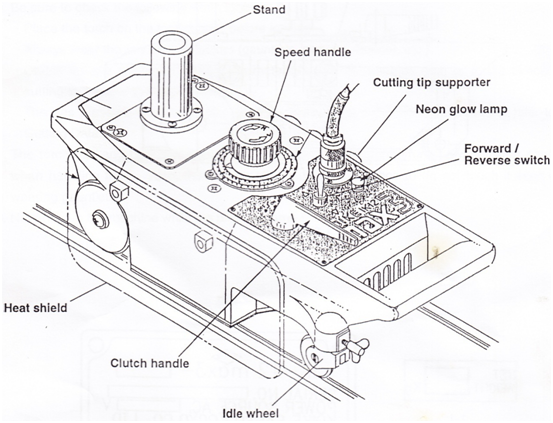

Structure
Technical parameter
Configuration | Name | Technical parameter |
Standard configuration | Machine size | 430x220x215mm |
Weight (body) | 10kg | |
Cutting speed: | 80 mm/min-800 mm/min (50Hz) | |
Power source | 220V | |
Reduction gear | signal cone system | |
Motor | 1440rpm/40W | |
Groove angle | 0-45° | |
Torch configuration | A group of flame cutting torches | |
Linear guide rail | Length: 1.8m, quantity: 2 | |
Optional (purchase separately) | Double cutting torch | Two sets of flame cutting torches with a minimum distance of 75mm |
Circle cutting device (radius rod type) | Diameter of cutting circle: φ40-2650m | |
Circular guide rail | Cutting circle diameter: inner side: φ40-36mm，Outside: φ770-1150mm | |
Vertical profiling roller | Used to track surface changes of steel plate | |
Double cutting torch groove (SP-300) | For V / Y groove | |
Three cutting torch groove (sp-400) | For V /Y/ K groove |

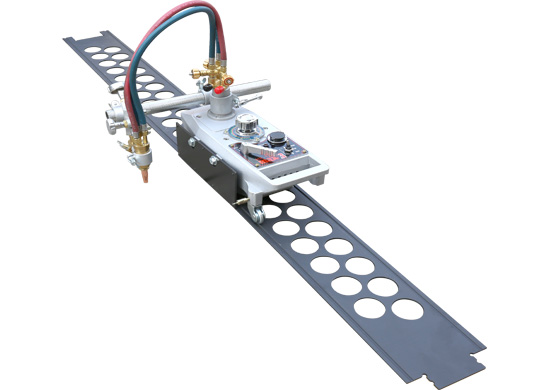

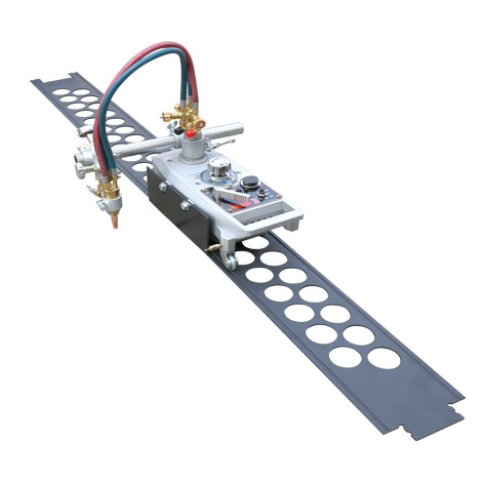

Picture for reference
