Steel Ingot Thick Plate Flame Cutting Machine

Introduction

"CG1-75" steel ingot cutting machine is a kind of light cutting equipment. This machine is cast from high-strength aluminum alloy material, with a large volume and more stable operation. The speed regulation system adopts thyristor antenna speed regulation, which is convenient to operate. The cutting torch is kept away from the machine body, greatly reducing the impact of high-temperature environments on the machine. The cutting thickness of this machine ranges from 50 to 350mm and it is suitable for cutting thick plates. This machine does not include the guide rail part. Users can conveniently manufacture and install the guide rails by themselves using profiles and light rails according to the actual situation. This machine has a compact structure, is easy to operate, flexible to move, safe to use and requires a short auxiliary time.

Structure

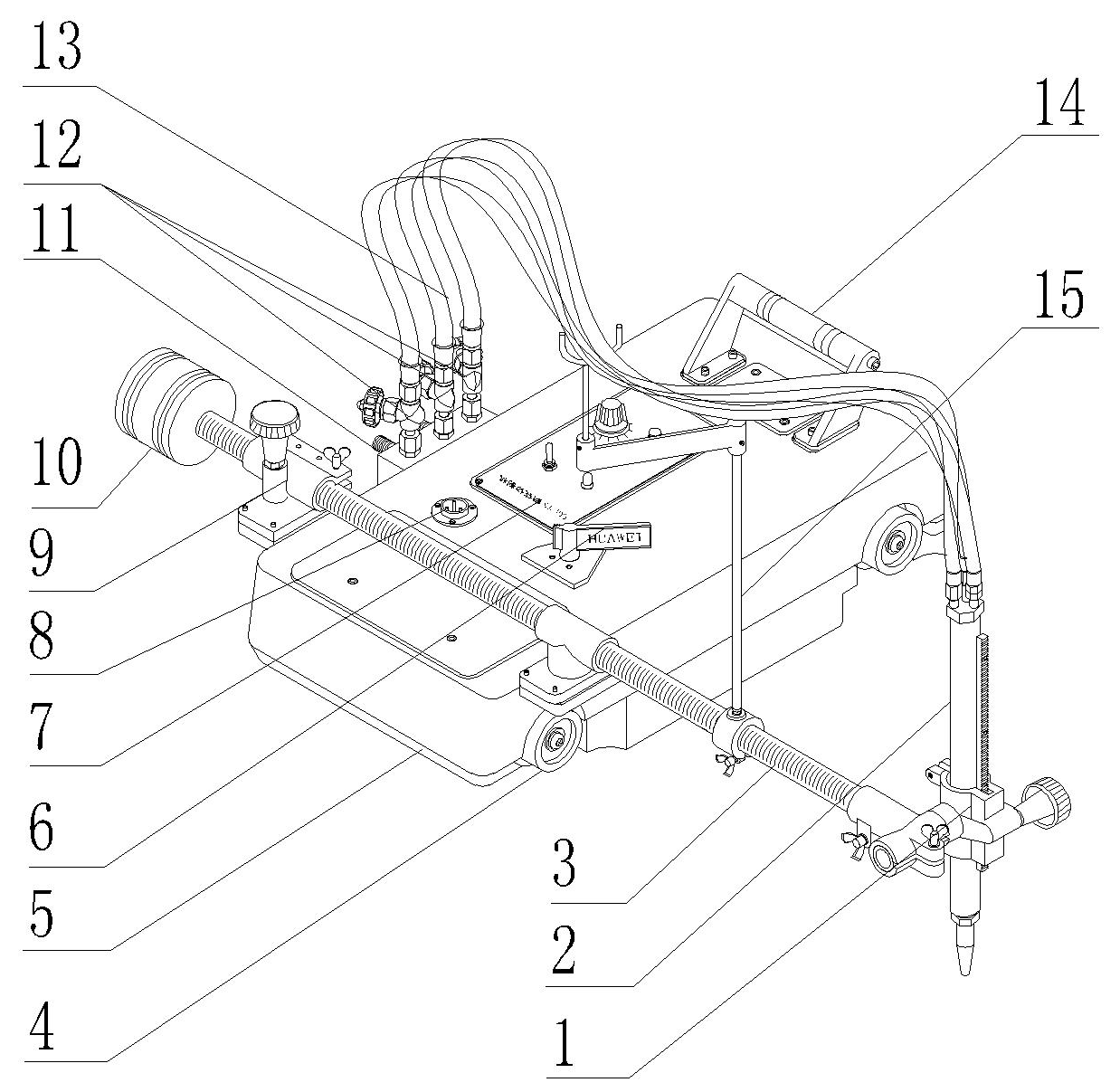

1. Torch lifting and clamping device

2. Cut the torch body

3. Move the rack horizontally

4. Drive wheel

5. Mainframe housing

6. Clutch handle: Align the tip end of the handle with "STOP" to disengage. Align "START" to close.

7. Operation Panel

8. Power socket

9. Left and right moving seat: Adjust the horizontal position of the cutting torch.

10. Heavy hammer: Maintain the balance of the machine body.

11. Gas distributor

12. Oxygen hose

13. Gas hose

14. Hand handle

15. Hose support

16. Main body

17. Heat insulation board: Prevents the heat generated by cutting from diffusing into the interior of the machine

Technical parameter

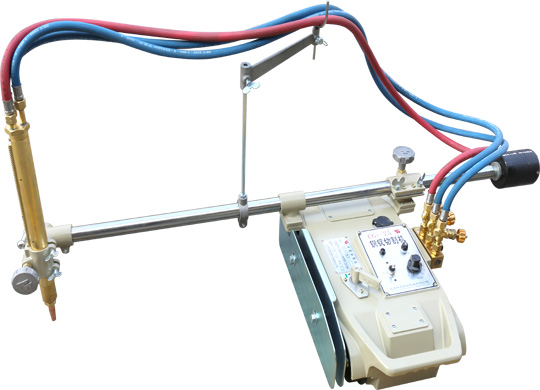

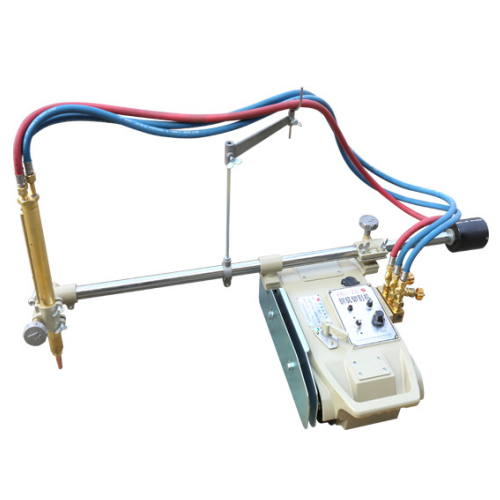

Picture for reference
