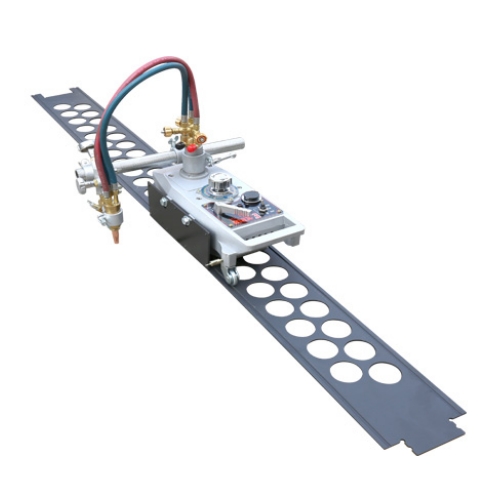

Portable Flame Cutter Machine For Steel Sheet 45° Beveling Cutting With Optional Circular Piece
Introduction
The main boday is made of aluminum of high strength by die-casting.It's light weight and compact structure to ensure the machine becomes ideal portable machine.Speed system adopts mechanical adjustment which can keeps running continuously under high temperature.Advanced motor with fan for cooling.Circular rail can be equipped as required for circular piece cutting(optional).Beveling range:I.Y.V(45degree).Applied to shipbuilding.oil production,metallurgy,metal structure and other manufacturers etc.

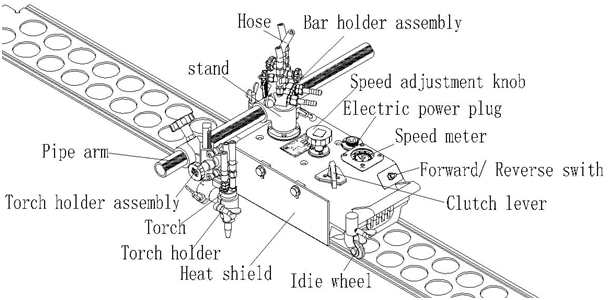

Structure
Technical parameters
1.Weight(body) | 10kg |
2.Machine size | 440mm×205mm×125mm |
3.Wheel distance | 160mm |
4.Power source | AC 42V, 110V , 220V |
5.Reduction gear | Double cone system |
6. Cutting speed | 80mm/min-800mm/min(50Hz) 100mm/min-1000mm/min(60Hz) |
7.Cutting edge shape | I V (45) |
8.Cutting thickness | 5mm-30mm(102or106 #0,1,2) |
9.Motor | 1500r.p.m/1800r.p.m(9w/10w) |

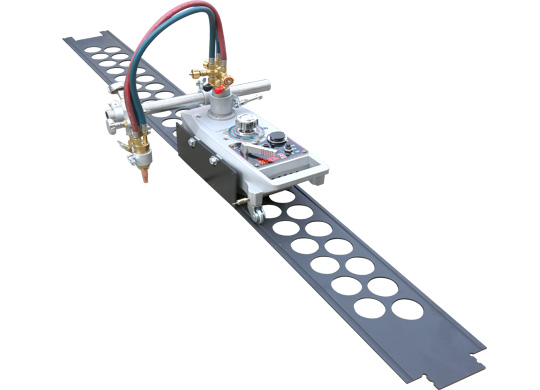

Picture for reference
