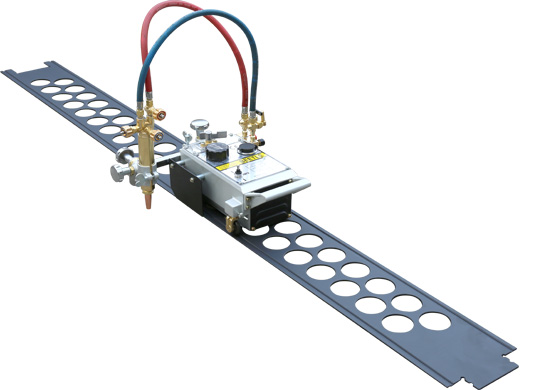

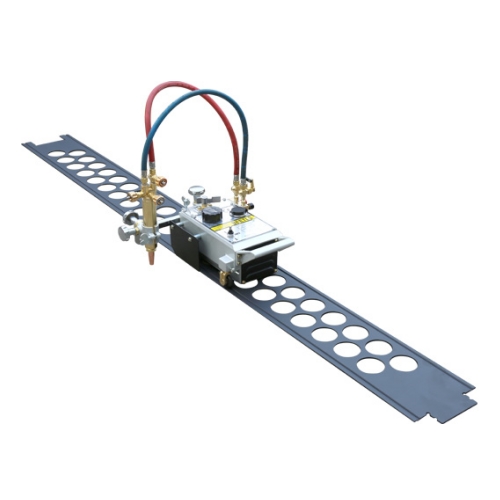

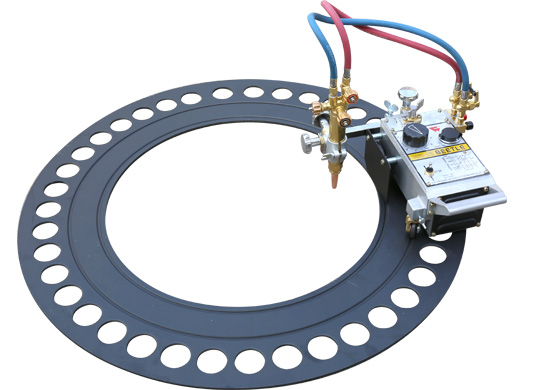

Beetle Portable Oxy-Fuel Cutter Gas Cutting Machine With A Single Cone Speed Changer
Introduction
This machine is equipped with a single cone speed changer (mechanical non-stage speed changer)to materialize substantial compactness and lightweight based on the double cone speed changer that has been successfully used in HK-12MAX, The improved transportability and operability will surely contribute to rationalization and labor-saving of cutting operation.
Structure

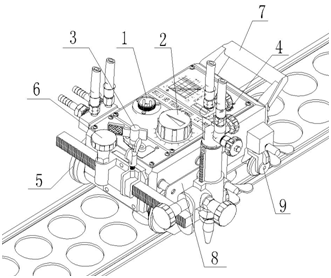

1. Electric outlet: Used for connection of power cable to supply electric power.
2. Speed adjuster: Turn the knob clockwise, and the machine will travel faster.
3. Clutch: The lever operation will stop driving.
4. Drive wheel: Incline the switch in the direction of the arrow to move the machine in that direction.
5. Drive wheel: Engage the clutch (ON) to transmit driving power, and the machine will begin to travel.
6. Torch side handle: This handle adjusts the lateral position of the torch.
7. Handle: Hold the handle to carry the machine. As well as for positioning.
8. Heat shield: The shield protects the machine form the heating flame.
9. Idle wheel
Technical parameter
1. Weight: | 7.5kg |
2.One torch with body: | 10kg |
3.Two torch with body: | 14kg |
4. Machine size: | 350×140×175mm |
5.Wheel distance: | 160mm |
6.Power source: | ±10% |
7.Reduction gear: | Single cone system |
8. Cutting edge sharp: | I、V (45°) |
9.Cutting thickness: | 6~100mm( by standard accessories) |
10.Moter: | 1500r.p.m |
