Automatic Portable Flame Cutter Gas Cutting Machine For 30mm Thick Stainless Steel Sheet Cutting
Introduction
HK-30A is a kind of portable automatic gas-cutting machine and you can know from its name “Eagle cutting machine” that it is characterized by rapid moving、convenient、and easy to fast turning .It is widely used and has a proper structure and good looking. Its operability and durability has been well improved after years of using and under some customers’ guide.

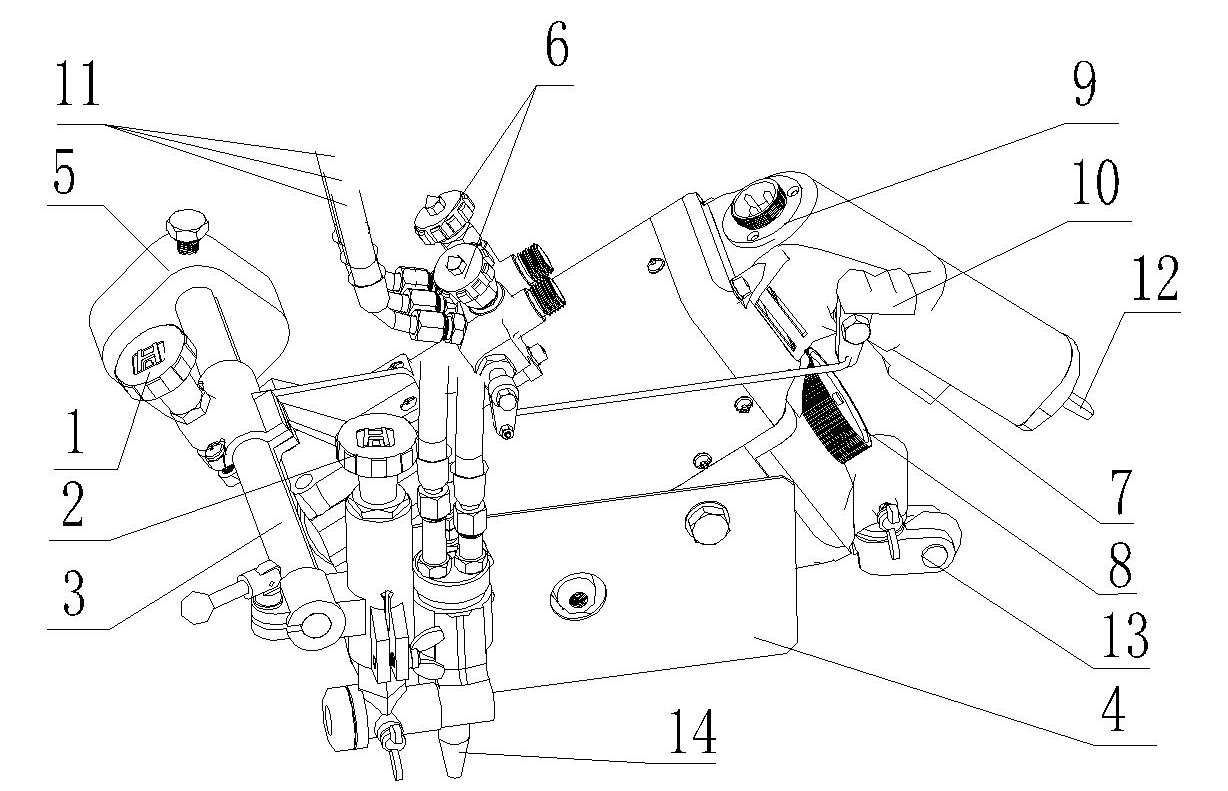

Structure
1. Adjusting handle：When traversing the handle, the torch moves left or right.
2. adjusting handle：When traversing the handle, the torch moves up or down.
3. Contrate gear rack
4. thermal baffle：Stop the thermal diffuse outside.
5. balance-weight
6. two-port valve：Adjust the gas-flow rate.
7. on-off handle：Hold tightly the machine is off and hold loosely the machine is automatically on.
8. adjusting handle：Adjust the moving speed.
9. Power socket
10. Cutting oxygen switch.
11. Gas delivery hose.
12. Normal-reverse switch.
13.Universal wheel
14. cutting nozzle
Technical parameter
1 Weight (body) | 10.5KG |
Accessory | 3.8 KG |
2.Machine dimension | 460 mm×360 mm×240 mm |
3.Speed control | SCR control |
4.Power source | AC 220V±10％ |
5.Cutting speed | 50～100㎜/min |
6.Cutting thickness | 5-30㎜ |
7.Bevel angle | 0～45° |
8.Diameter of the cutting circle | Φ50～Φ550㎜ |
9.Tip | G02(for acetylene)orG03(for propane) |
10.Motor | DC110V 50HZ 30W 4200RPM |

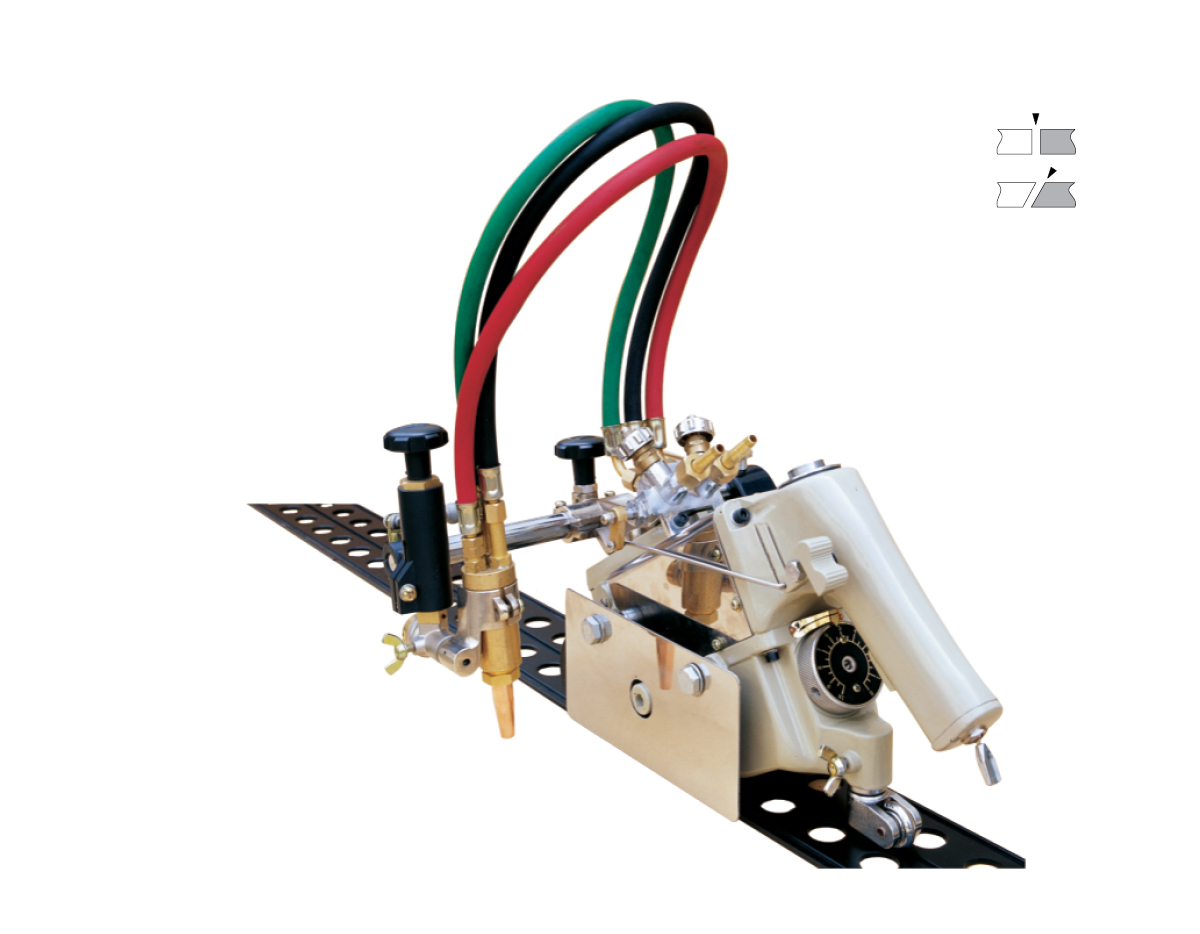

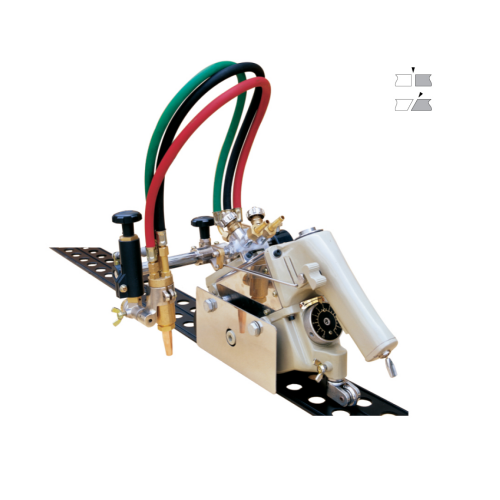

Picture for reference
