6-30mm Thick Metal Sheet Portable Oxygen And Acetylene Cutting Machine

Introduction

As indicated by the name, this machine named HK-30 is quick in movement and easily make sharp turns, being used widely in many working places. HK-30 has been improved and remodeld several times under the guidance of customers. HK-30 has been mass produced under rationalized production control and thorough going quality control, with the help of new technology for improved operability, heat resistance, and durability.

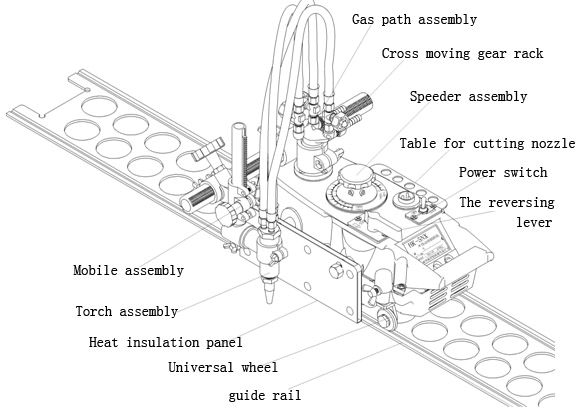

Structure

1. Horizontal bar holder(set)：The horizontal bar moves to the right and left when the handle is turned.

2. Speed reduction unit.

3. Distribritor ：Use for gas distribution.

4. Resistor handle：Controls the machine running speed.

5.Clutch lever：It will be free when held by hand.

6. Handle

7. Power switch：Push button type. Push it for driving and the push it again to stop operation.

8. JOX lever：Turn it forward for opening and backward for closing.

9. Guide wheel

10. Motor

11. Heat shield

12. Gear box

13. Drive wheel

Technical parameter

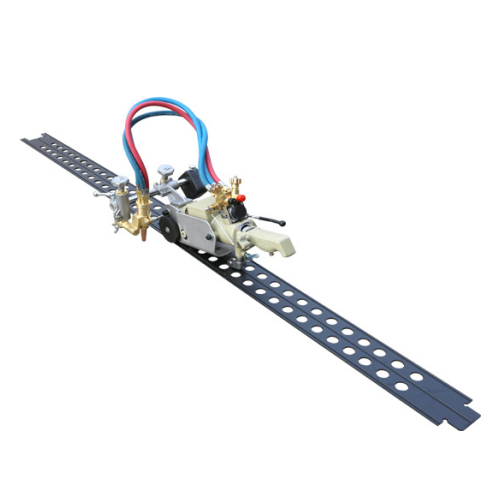

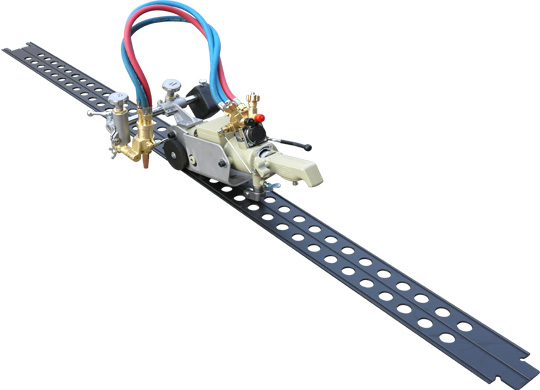

Picture for reference
