Flame Cutting Machine For 5-50mm Thick Stainless Steel Sheet Cutting
Introduction
HK-5NX cutting machine adopts high-strength aluminium alloy ingot materials and is manufactured through accurate die-casting ,Its structure is designed reasonably with good stability in movement.

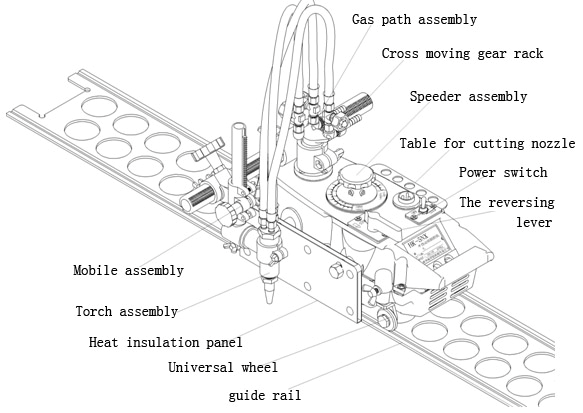

Structure
Technical parameter
Machine volume（ength*width*height） | 430×200×210mm |
Weight | (body 10Kg)15 Kg |
Cutting speed | 80～1000 mm/min |
Cutting thickness | 5～50 mm |
Power source | AC220V 50/60HZ |
Motor | 30W，1300r/min. |
Groove angle | 0-45° |

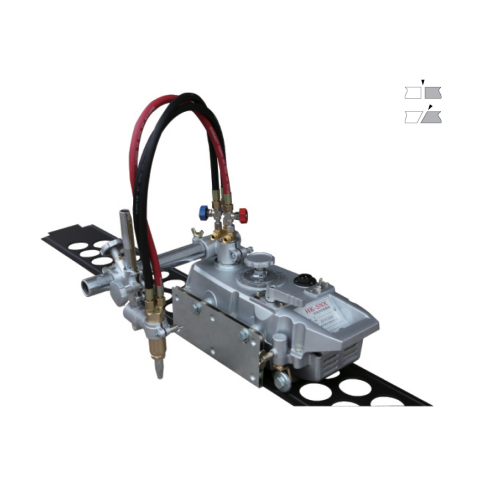

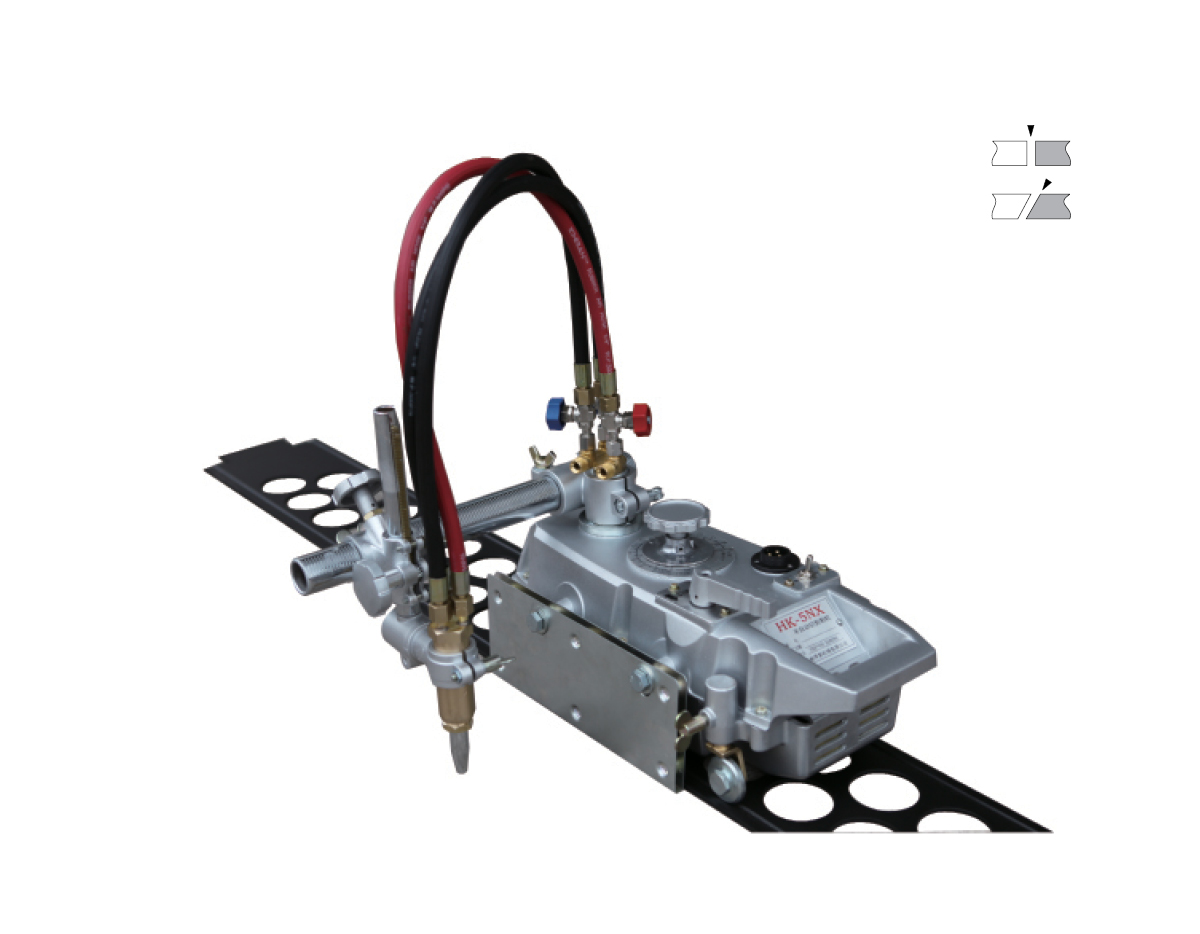

Picture for reference
