Automatic Roll to Roll Cross Slitting Machine For Lithium Ion Battery Electrode Sheeting
Introduction
This product is mainly used for single-piece cutting of positive and negative plates of lithium batteries. The cutting length, quantity and speed can be set arbitrarily, and it can be cut separately. This machine has an automatic unwinding function. The automatic unwinding and automatic stop are controlled by the tension frame. The speed is adjustable during unwinding, and the feeding axis is pneumatic. The shaft is expanded and it is convenient to load and unload.
Main features
*The cutting length, quantity and speed can be set arbitrarily, and can be cut separately;
* Unwinding automatically adjusts the tension;
*Continuous cutting, fixed length and cursor tracking two modes are optional, adapt to multi-segment cutting, the compensation before and after the incision can be set;
* The width is 10~300mm, and the length is set arbitrarily within 1~9999 mm.
*The machine adopts PLC man-machine interface control, easy to use and operate.
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Easy to operate, safe and reliable, small size;
Technical parameter
Unwinding | The unwinding air shaft is fixed, and the unwinding tension uses automatic unwinding and constant tension |
Fixed length cutting speed | 5~250mm/s |
Chasing color cutting speed | 5~150mm/s |
Unwinding diameter (Max) | 250mm |
Burr condition | ≦25um |
Power supply | 220V/50Hz |
Power | 1.2KW |
Compressed air | 0.5Mpa～0.8 Mpa |
Scope of application | Width 300mm, length 1～9999 mm cutting |
Cutting accuracy | Fixed length using servo system and color code sensor to track the fixed length, high accuracy, cutting accuracy within the adjustable range ± 0.3mm |
Dimensions | L700*W700*H1000mm (the length of the guide plate is 800 and the total length of the machine is 1500mm) |
Weight | About 240kg |

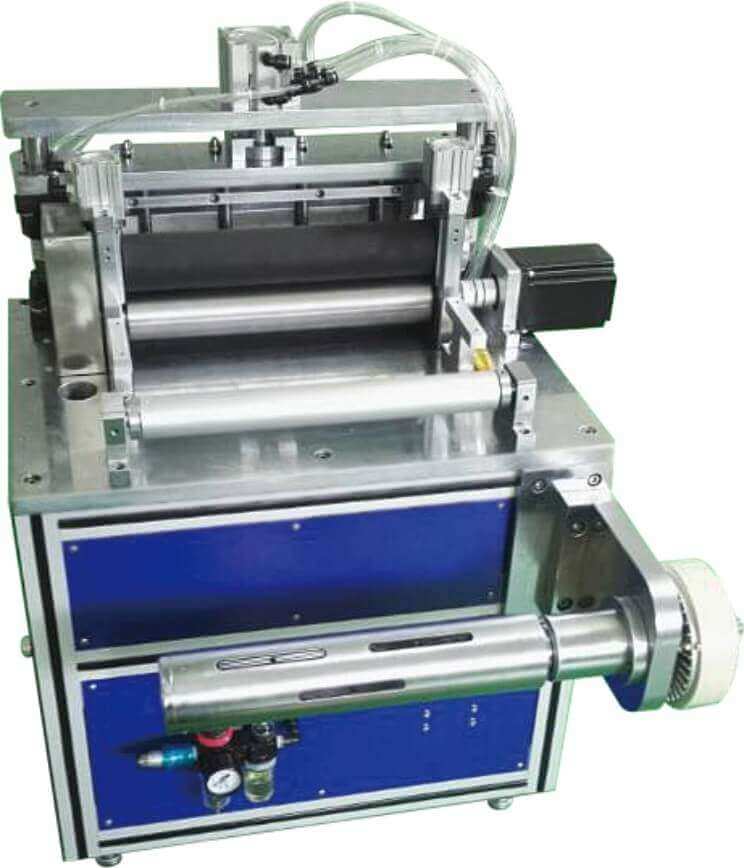

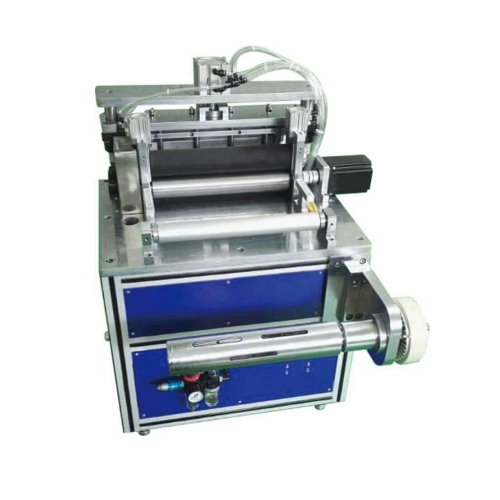

Picture for reference
