Manual Disc Punching Machine With Various Cutting Die Size For Coin Cell Electrode Separator Cutting
Coin cell Die Punching Cutting Machine is used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight, The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.
Technical parameters
Machine model | Die Punching Cutting Machine |
Operating | Manual |
Punching size | Standard configuration : φ14mm punching die, φ8-24mm can be chosen |
Application Notes | For make CR2016, CR2025 or/and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc. |
Punching stroke | 25mm |
Punching thickness | 0.005-0.5mm electrode and separator |
Advantages | Simple operation Light weight Can both cut electrode and separator |
Dimension | 120*150*240mm |
Weight | About 15kg |
Warranty | One Year limited warranty with lifetime support |

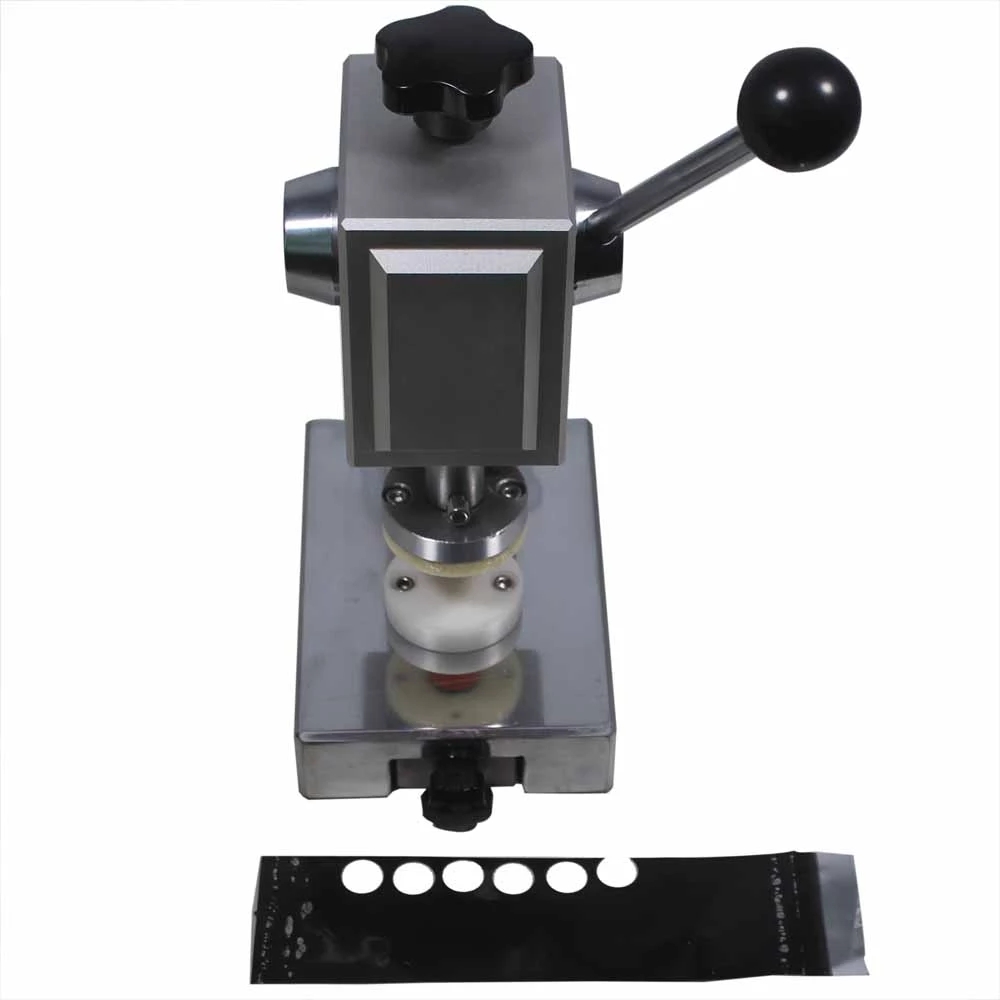

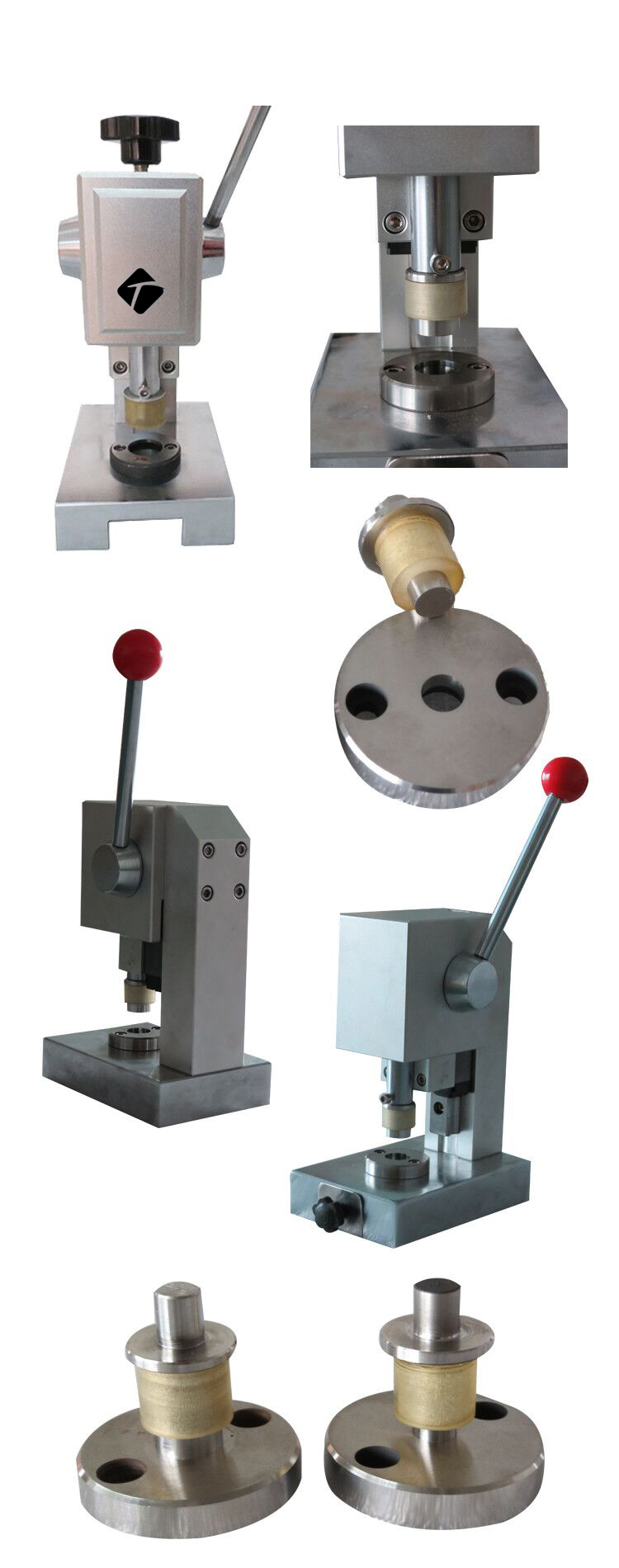

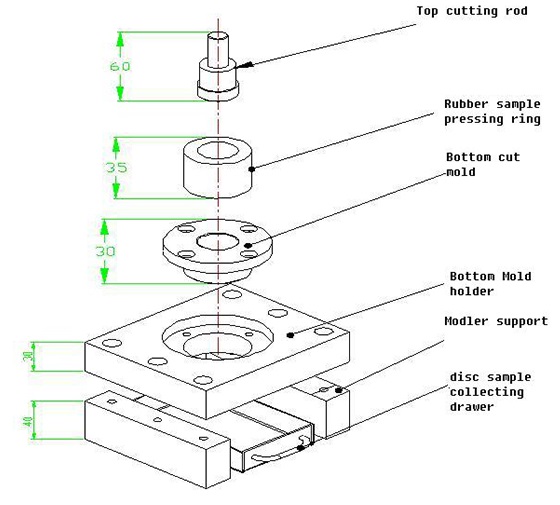

Picture for reference
