Automatic Step Feed Travel Head Cutting Machine For Ball Blanking

Uses and features:

1. This machine is suitable for continuous blanking of non-metal coil material of the same specification with forming cutter die. For example, it can be used in football, volleyball, tennis, medicine and other industries.

2. The servo motor is used to control the lateral movement of the punch, and the multi-layer material is fed step by step with the cylinder clamping. The machine automatically completes the blanking of the material, and the punch displacement distance and feed length can be accurately set. The problem of inaccurate layering length of multi-layer material feeding is solved.

3. The machine has a variety of working methods such as point, manual, automatic, etc. Workers only need to pick up finished materials, reducing labor intensity and improving work efficiency.

4. The machine has the punching mode of dislocation, dislocation reduction, tool die transposition, etc., which can extract materials and save 10%-15% of raw materials.

5. Because the machine is controlled by microcomputer, the degree of automation is high, the whole machine only needs one worker, the production efficiency can be increased by 3-5 times, and the energy saving is nearly 1/3.

6. Special setting mechanism, with cutting tool height setting, so that the stroke adjustment is convenient and accurate.

7. Special specifications can be customized.

Component selection: cutting plate micro-motion device.

Main technical parameters:

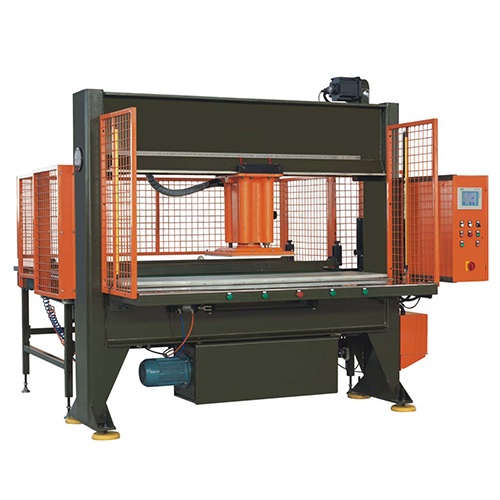

Picture for reference
