Automatic Typesetting Rolled Material Travel Head Cutting Machine

Application characteristics:

1, this machine is suitable for forming knife die to a variety of non-metallic sheet materials for continuous blanking operations, can be applied to clothing, shoes and hats, cultural goods, sporting goods and other industries.

2, the machine is controlled by the upper computer, with knife imitation shape, electronic graphic input, automatic typesetting function, and displayed on the screen, can accurately control the machine X, Y, Z, β four directions of the movement, the punch according to the position of the typesetting automatic punching.

3, the machine has a memory function, can store a variety of working modes, as long as the corresponding number of the tool die, you can be produced according to the specified working mode.

4. Servo motor drive, accurate feeding position; Servo motor drive, ball screw drive, to ensure accurate positioning of the punch; The servo motor is used to rotate the punch to ensure the accuracy of the blanking position.

5, the machine has manual, automatic and other working methods, workers only need to pick up finished products, greatly improve the work efficiency, reduce the labor intensity.

6, the machine is installed around the protective net, the discharge port is installed with safety light curtain, improve the safety of the machine.

7, special specifications can be customized.

Main technical parameters:

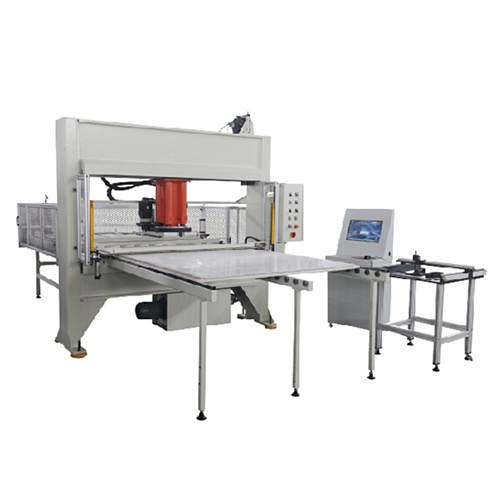

Picture for reference
