Capacitor Thin Film Slitting Slitter Machine
Introduction
The capacitor film slitting machine is a high-precision device specifically designed for slitting capacitor films (such as polypropylene (PP), polyester (PET), etc.), and is widely used in capacitor manufacturing, electronic components, new energy (such as film capacitors, lithium-ion batteries), and other industries.
Technical parameter
Large roll width | Maximum 1050mm |
Large roll outer diameter | Maximum 620mm |
Diameter of the unwinding core | 6inch |
Material thickness | 2 ~ 30 microns |
Reel in the scroll | Air shaft |
Unroll and correct deviations | Chasing the edge/chasing the line |
Touch display screen | Imported/Domestic |
Finished product width | Minimum 20mm |
Outer diameter of the finished product | Maximum 400mm |
Diameter of the winding core | 3inch |
Maximum speed | 50~500m/min |
Slitting knife | Use square knives for slitting |
Machine size | 1900*2400*2400(mm) |

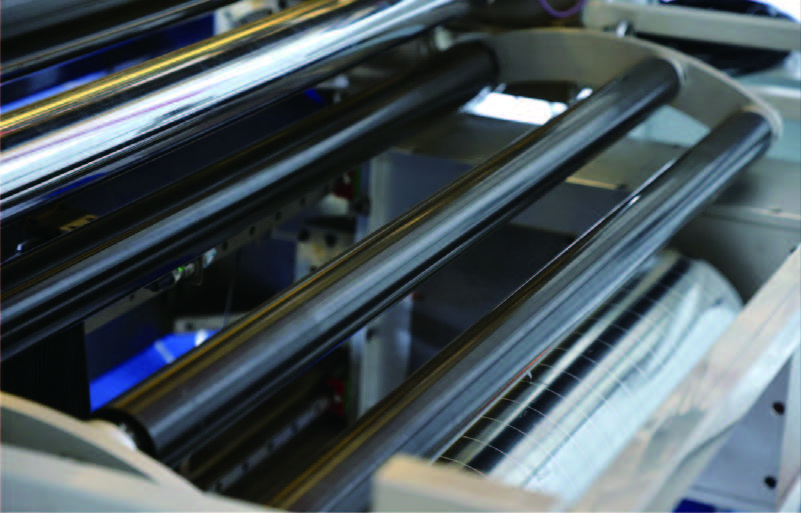

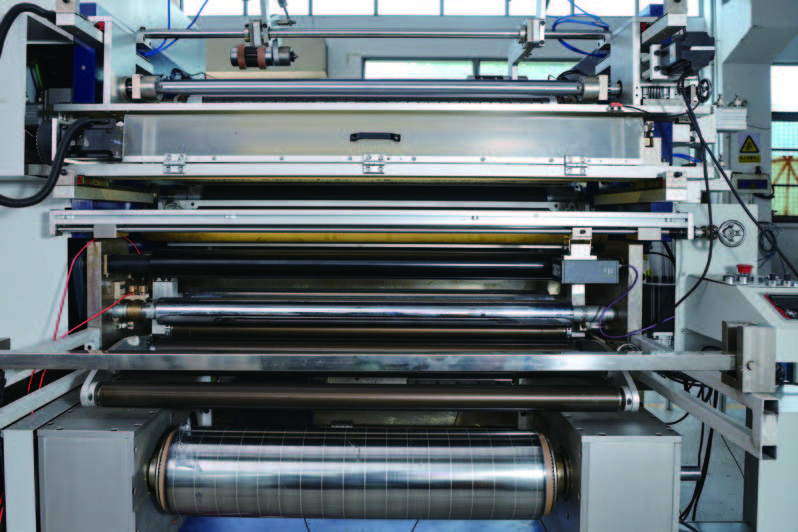

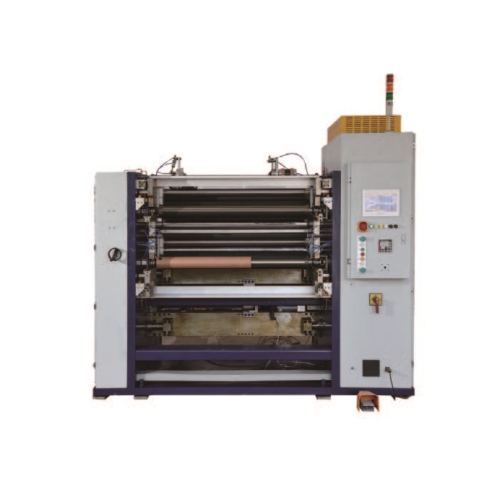

Picture for reference
