Function
It is sutable for high temperature vulcanization process of rubber products,instead of manual slitting、 cutting、screening、discharging、mould tilting and take products and other processes,to achieve intelligent,automated production.
Main advantage
1.Rubber material real-time cutting,real-time display,the weight of each rubber accurate.
2.Avoid personnel working in high temperature environment.
Feature
1.The slitting and feeding mechanism is equipped with a stepper motor to control the slitting stroke, and is supported by auxiliary mechanical torque and a limiter for the packaging film. This ensures proper winding and provides the necessary unwinding tension.
2.The up and down synchronous double belt line feeding mechanism increases the contact area for feeding, ensuring accurate rubber placement while preventing deformations caused by local pressure from the roller.
3.The automatic weighing and screening mechanism utilizes dual-channel dual weighing sensors for precise weighing and sorting, ensuring that each rubber falls within the specified tolerance range.
4.The automatic arrangement and transfer mechanism allows for flexible layout schemes to be switched based on product or mold requirements.
5.The product reclaiming mechanism incorporates a pneumatic finger assisted by a lifting mechanism and adjusted by two axes, making it easy to retrieve the products.
6.The cutting system is an enhanced version of our traditional CNC weighing and cutting machine, providing increased competitiveness, efficiency, and the ability to identify and make modifications.
7.High-quality electrical accessories from reputable brands are used to ensure stability, accuracy, and safety. Non-standard parts are made of durable stainless steel and alloy materials, resulting in a long lifespan and low failure rate.
8.This system is simple to operate and enables multi-machine management, allowing for unmanned and mechanized production with consistently high quality.
Main parameters
Max cutting width:600mm
Max cutting thickness:15mm
Max layout width:540mm
Max layout length:600mm
Overall power:3.8kw
Max cutting speed:10-15 pcs/min
Max weight accuracy:0.1g
Feeding accuracy:0.1mm
Model:200T-300T vacuum machine
Machine Size:2300*1000*2850(H)/3300(H Total height) mm Weight:1000kg

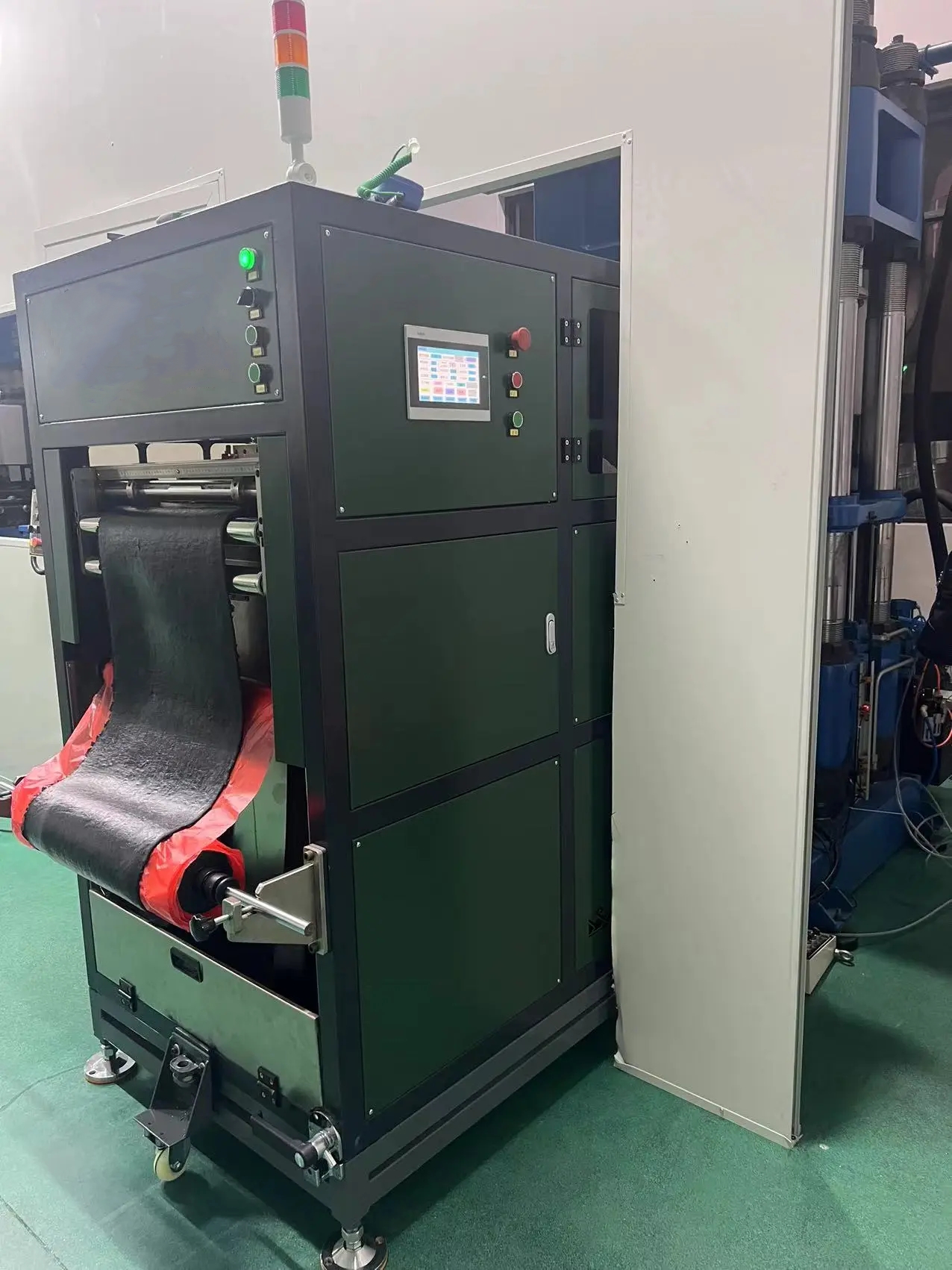

Picture for reference
