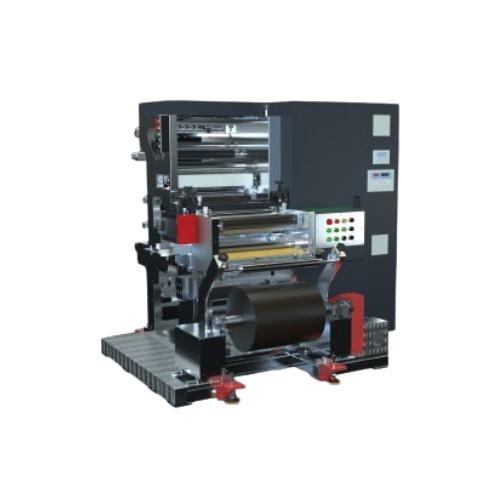

Max. 500mm Width Automatic Battery Electrode Slitting Machine For Pouch Cell Making
Features
Minimum cut 6mm
Combined blade/fixed hob slitting
High efficiency dust removal mechanism
The cursor automatically aligns
Electrode automatic feeding
Ergonomic design
Basic specification
Input width | Max. 500mm |
Input diameter | Max. 450mm |
Slitting range | 6-500mm |
Slitting speed | Max.40m/min |
Machine’s size | L1800*W2300*H1850mm |
Technical parameters
Item | Conventional small model |
Model | NEM-WH-FT500 |
Effective slitting width | 500mm |
Min. Slitting size | 7mm |
Machine’s dimension | L1800*W2300*H1850mm |
Weight | 3.2T |
Controller | The Omron system |
Unwinding method | Inflatable shaft |
Correction method | Ultrasonic automatic correction |
Tension method | Torque mode automatic tension |
Slitting method | Fixed hob (* Combined knife) |
Electrode sheet dust removal | Brush reverse to roll type |
Electrode sheet removes static electricity | Ionic wind bar |
Electrode sheet iron removal | 1000 Gauss magnetic bar |
Winding shaft | Ball type slip shaft |
Press coil method | Self pressure wheel type |
Fault detection | CCD detection + labeling |
Machine’s color | Dark Grey with orange Red (can be customized) |
