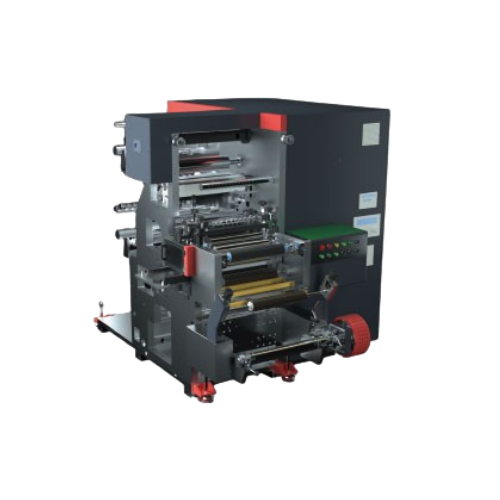

Max. 300mm Automatic Battery Electrode Slitting Machine
Features
Minimum cut 3mm
Combined blade/fixed hob slitting
Efficient dust removal mechanism + iron removal mechanism
Misaligned four-axis winding
The cursor automatically aligns
Electrode automatic feeding
Ergonomic design
Basic specification
| Input width | Max. 300mm |
Input diameter | Max. 300mm |
Slitting range | 3-300mm |
Slitting speed | Max.40m/min |
Machine’s size | L2000*W1700*H1800mm |
Technical parameters
Item | Bluetooth model |
Model | NEM-WH-FT300 |
Effective slitting width | 300mm |
Min. Slitting size | 3mm |
Machine’s dimension | L2000*W1700*H1850mm |
Weight | 3.5T |
Controller | The Omron system |
Unwinding method | Inflatable shaft |
Correction method | Ultrasonic automatic correction |
Tension method | Torque mode automatic tension |
Slitting method | Fixed hob (* Combined knife) |
Electrode sheet dust removal | Brush reverse to roll type |
Electrode sheet removes static electricity | Ionic wind bar |
Electrode sheet iron removal | 1000 Gauss magnetic bar |
Winding shaft | Ball type slip shaft |
Press coil method | Self pressure wheel type |
Fault detection | CCD detection + labeling |
Machine’s color | Dark Grey with orange Red (can be customized) |
