Automatic Copper/Aluminum Foil Slitting Sliiter Machine For Plastic Film/Fabrics Cutting With Roll To Roll System

It is suitable for slitting various rolls of plastic film (PVC, OPP, PET, CPP), paper, glass fiber, aluminum foil paper, aluminum foil, stickers, non-woven fabrics, etc. Cutting and rewinding of other coils.

Features

1. The whole machine is controlled by Mitsubishi PLC and Weinview touch screen, and the screen can set working parameters and display the operating status.

2. The host machine adopts 3 sets of Yaskawa imported inverters and servo motors to control the linkage, with high speed and stable tension.

3.Automatic hydraulic loading, saving time and effort. The load can bear 1500KG.

4. Pneumatic material pressing and splicing platform is adopted to save material changing time.

5. Use independent servo correction control system to correct material deviation.

6. The machine is equipped with SMC proportional valve and top solid pressure reducing valve, which can adjust the tightness of the rewinding material during the automatic tension of the slip shaft.

7. All transmission shafts adopt dynamic / static balance processing to ensure the stability and accuracy of the material transfer and slitting process.

8. Automatic meter counting device with roller encoder. When the material is slit and rewinded to a preset length, the machine will automatically stop working.

9. Adopting a 3-inch air-swelling shaft winding type to collect left and right waste materials (receiving by the cable machine)

10. The wall plates and accessories of the machine are customized with CNC technology to ensure the stability and cutting accuracy of the machine.

Specifications

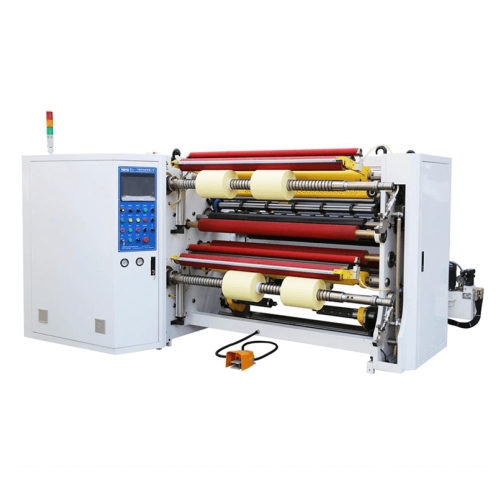

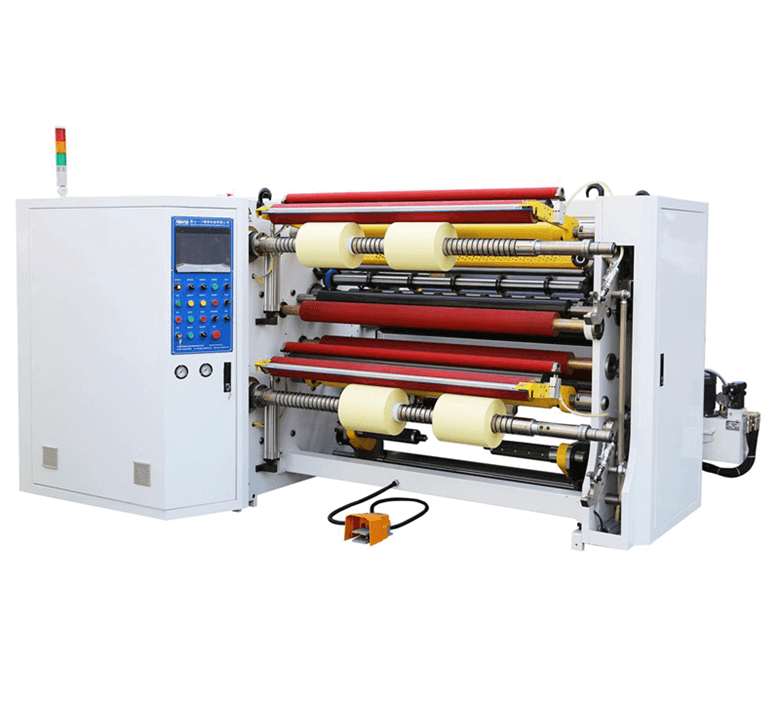

Picture for reference
