Universal Single Shaft Slitting Machine For Film/Release Paper Cutting
Features
Widely used in all kinds of tape and non-adhesive materials of the cut roll, such as: BOPP tape, double-sided tape, masking paper tape, PVC tape, PET tape, cloth tape, foam tape, 3M tape series, polyester film tape, gold finger, Mara tape, PE protective film, copper foil tape, aluminum foil tape,non-woven fabric, and release paper, etc.
Technical parameters
Model number | NEM-HZX-F300 |
Maximum feed width | 1.4/1.7 m |
Maximum cut roll diameter | 300 mm |
Minimum cut roll width | 1 mm |
Positioning accuracy | ±0.05-0.1 mm |
Cutting shaft specifications | 3 inch - 6 inch |
Size | 2883*1225*1500 mm |
Power supply | 380V/50Hz |
Weight | 1400 KG |
Total power | 7 KW |

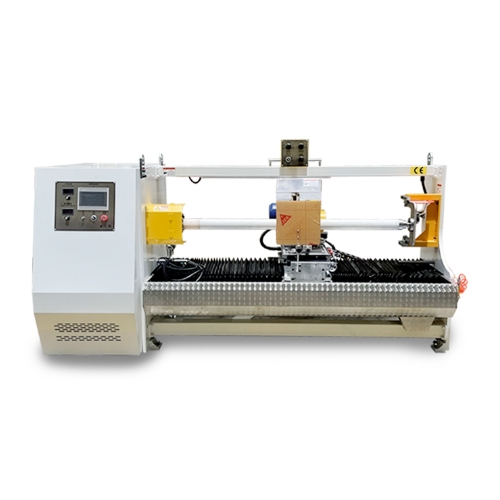

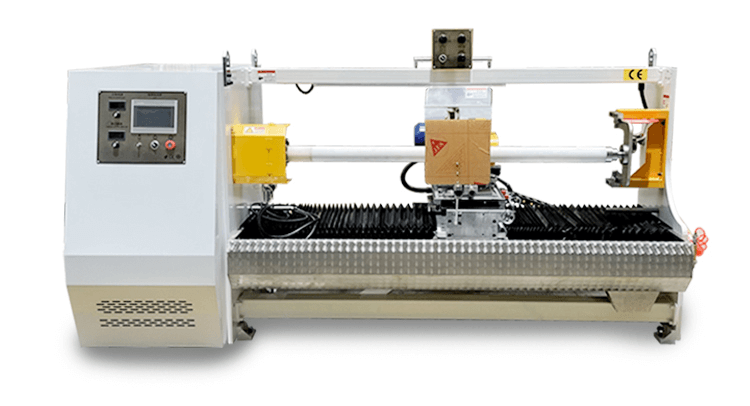

Picture for reference
