Circular Tube Universal Integrated Laser Cutting Machine
Working principle
Laser cutting is the laser beam through the focusing mirror to gather into a small spot projected on the metal surface, the focus to achieve a high power density, then the material is irradiated parts quickly heated to vaporization temperature, evaporation to form holes, with the light beam and the material relatively linear movement, so that the hole continuous formation of a narrow width slit, so as to achieve the purpose of cutting materials. During the cutting process, the nozzle ejects auxiliary gas from the direction parallel to the beam to blow away the slag to ensure the laser cutting quality. Driven by the servo motor, the cutting head moves in accordance with the predetermined route, thus cutting out various shapes of the workpiece.
Technical parameters
Model | Automatic laser pipe cutting machine |
Scope of pipe processing | Round pipe: diameter 10mm-90mm; Square tube, rectangular tube :10mm*10mm~60mm*60mm Pipe length and pattern: length is not limited; Closed pattern |
Type of cutting | Material: stainless steel; Carbon steel; Alloy steel; Aluminum; Copper, titanium and other metal pipes. |
Tube type: square tube; Round tube; Rectangular tube; Waist type tube; Elliptic tube; Angle steel: C-shaped steel | |
Laser brand | Chuangxin/Reeco/Geput |
Laser power | 1000W/1500W/2000W/3000W(depending on customer demand) |
Positioning accuracy | + / - 0.01 mm |
Cutting accuracy | + / - 0.03 mm |
Cut seam width | 0.15 mm or less |
Cutting thickness | Take stainless steel as an example :1000W≤4mm; 1500Ws5mm; 2000Ws6mm; 3000Ws8mm |
Cutting aperture | The 20.5 mm |
Tail length | ≤40m/min(depending on pipe material and thickness) |
Cutting speed | Ammonia/air: Air pressure >12 kg |
Air demand | CAD or CoreIDARW output files in DXF format |
Compatible file | Pneumatic chuck + servo |
Feeding mode | Phase 380V/60A/50Hz or single-phase 220V/50Hz/30A |
Power requirements | Constant temperature intelligent water cooler |
Cooling system | Temperature 5-35°C, humidity 20%-80%, no condensation |
Optimal operating environment | Material: stainless steel; Carbon steel; Alloy steel; Aluminum; Copper, titanium and other metal pipes. |

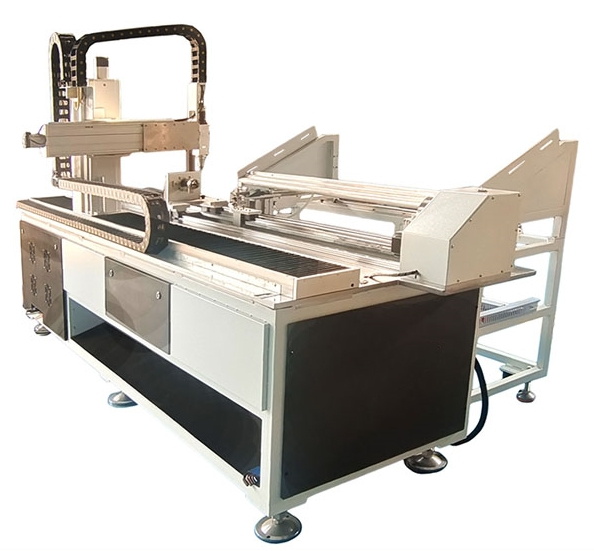

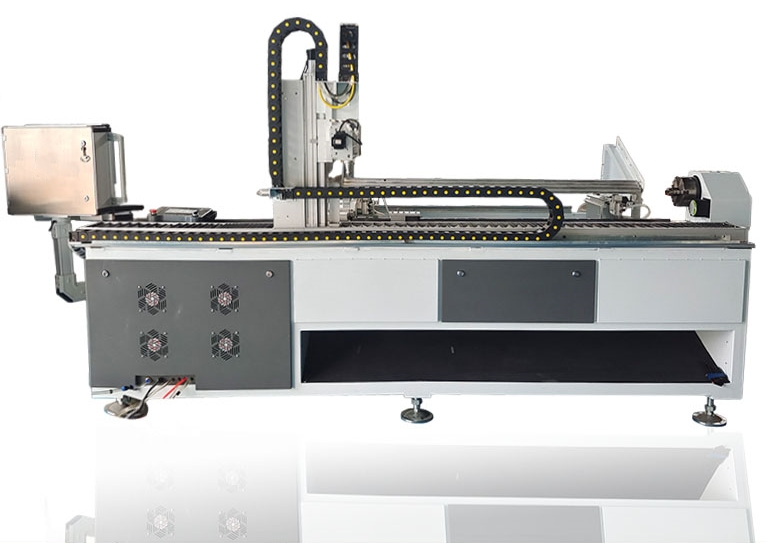

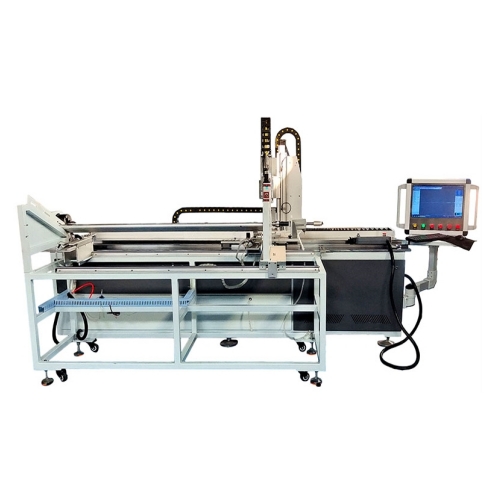

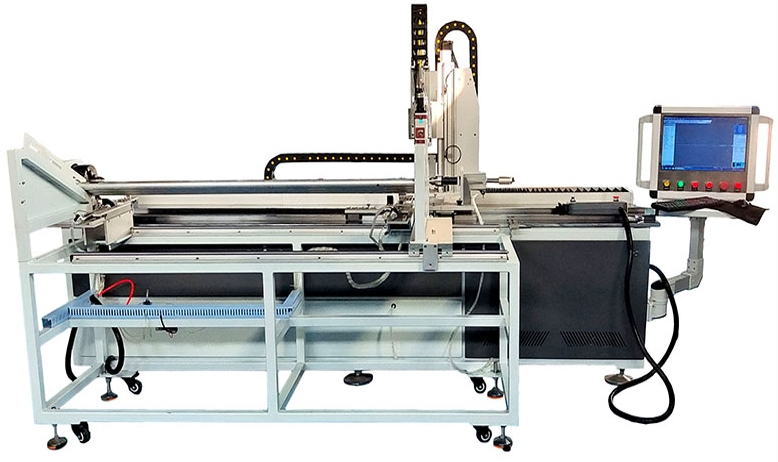

Picture for reference
