Digital Low Speed Diamond Saw Cutter
SYJ-160 is CE certified low-speed diamond saw. It comes with a digital micrometer, digital speed display as well as complete accessories. It accepts 6-inch cutting blade and will be a suitable tool for cutting, dicing and slicing all kinds of materials especially for brittle crystals, ceramics, and TEM samples.
SPECIFICATIONS
Power | 110V or 220V AC switchable for worldwide use High torque 110VDC motor (70W Max.) |
Speed range | 0-600 rpm with digital display. |
Position Thickness & accuracy | Cutting thickness is controlled by digital micrometer with accuracy of 0.003mm The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. Thinnest cutting thickness is 0.35mm for most materials |
Cutting Width | The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. |

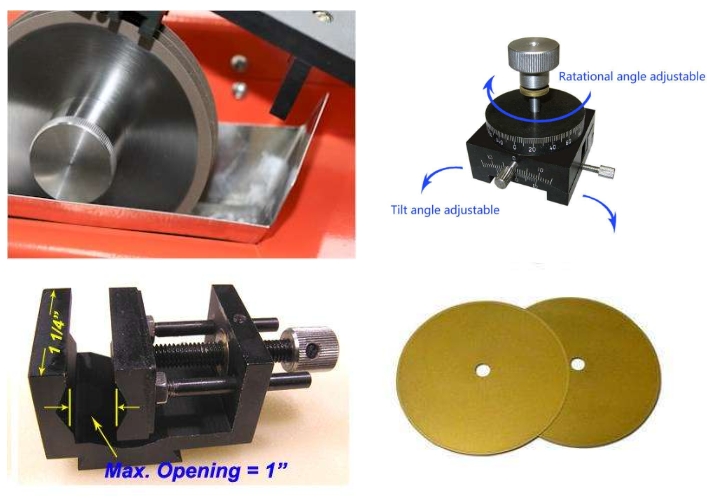

| Two angle adjustable sample holder is included, please click picture below for the details |
Mini-vise | Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max. |
| Max 6" diameter blade (it can also adapt 3" and 4" Dia. cutting blade ) Max cutting depth is 50mm. Three pcs total 6" cutting blades are included for cutting various materials: 6" Dia x 0.5 mm t x0.5" Arbor Impregnated Diamond Cutting Blade 6" x 0.5mm t x 0.5" Arbor Abrasive SiC Blade for Cutting Non-ferrous Metals 6" x 0.5mm t x 0.5" Arbor Abrasive Al2O3 Blade for Cutting Ferrous Metals One plastic water-proof box is included to protect water from splashing during cutting Complete accessories are included (see standard list below) |
| One year limited manufacturer warranty with lifetime support. Rusting and damage due to improper storage condition or maintenance are not covered by warranty. |
Certification | CE certified |

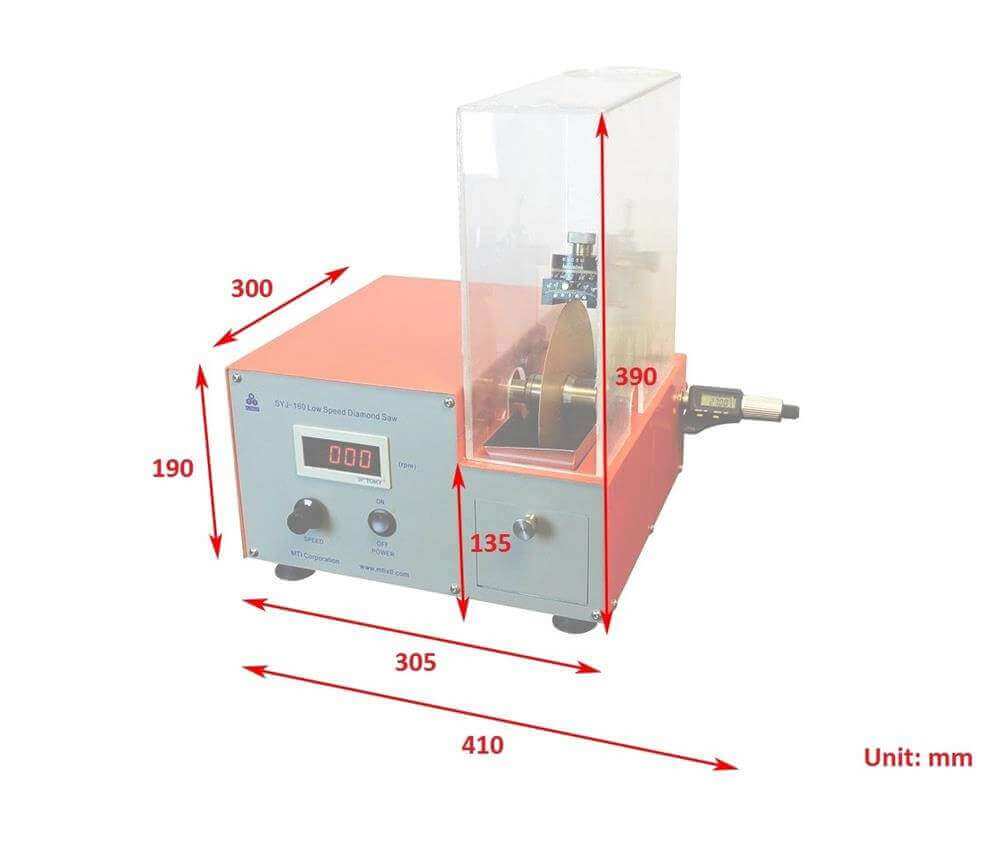

Package dimension | 21" x 15" x 18" |
Accessory | Plexiglass protective shield |
Balance Weight | LSS002: 0.57lbs |
Shipping weight: | 40lbs |

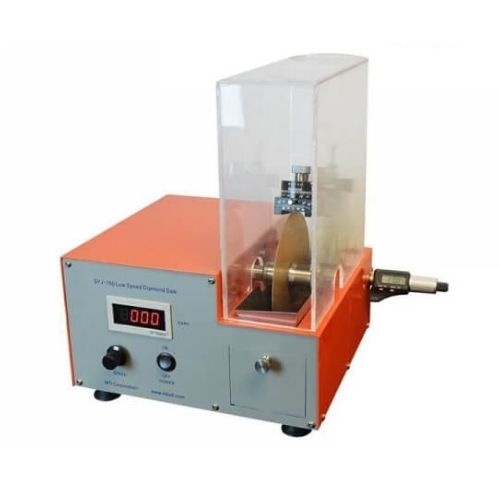

Picture for reference
