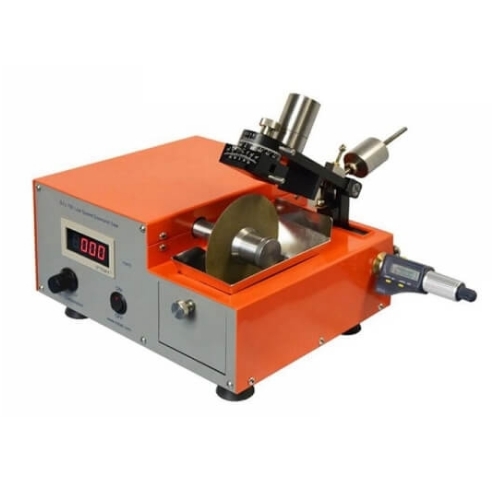

Laboratory Digital Low Speed Diamond Saw Cutting Machine
SYJ-150 is CE certified low-speed diamond saw, which equips with the advanced digital micrometer and digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples, and even plastic samples.
SPECIFICATIONS:
Voltage and Power | AC 110V/220V switchable for worldwide usage 110VDC Motor 8Amp fuse installed |
Speed Range | Variable 0-600 rpm with LED digital display |

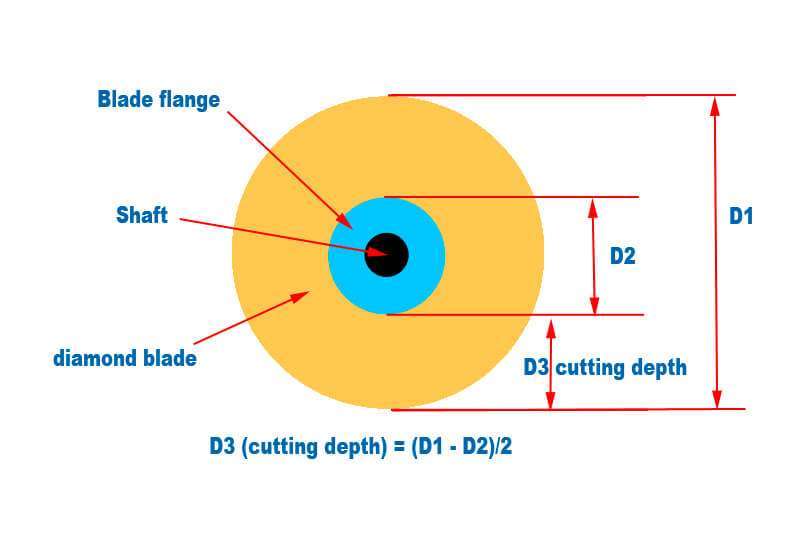

| The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. 32.5mm max. cutting depth (when using 35mm Dia. blade flange) Please click the pic below to know the cutting depth |
Diamond Blades | Three blades are included for cutting various materials SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys. Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel. Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials |

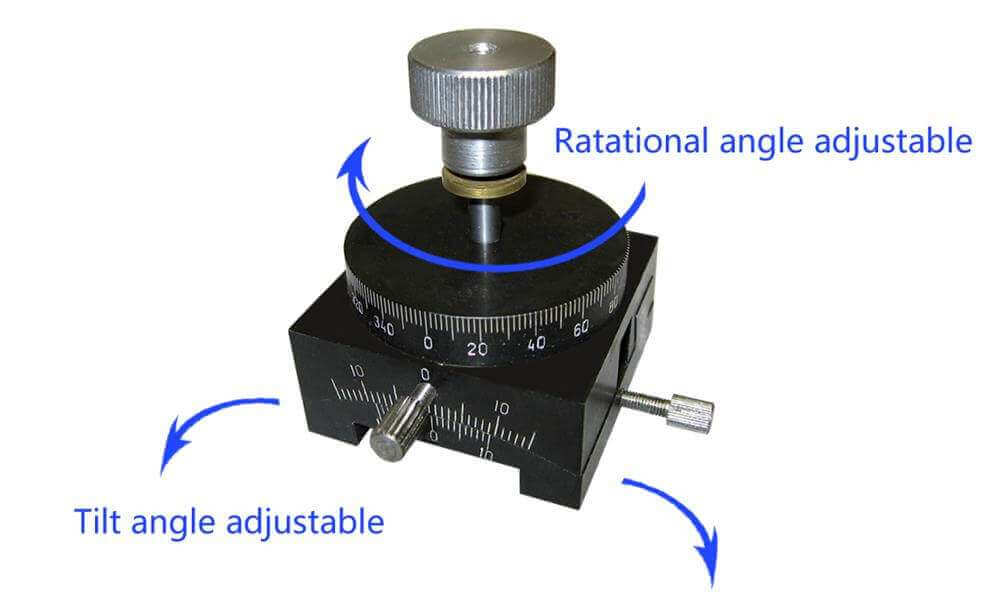

Sample Holder & Mini-vise | Two angles adjustable sample holder is included, please click picture below for the details (max. opening 26mm) One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max. |
Package Dimensions | 19"(L) x 15"(W) x 15"(H) |
Balancing Weights | Front : 0.75 lbs |
Shipping Weight & Dimension | 32 lbs, 18" x 14" x 14" |
Warranty | One years limited with lifetime support (not including rusted parts due to inadequate storage conditions) |
Certification | CE Certified. |

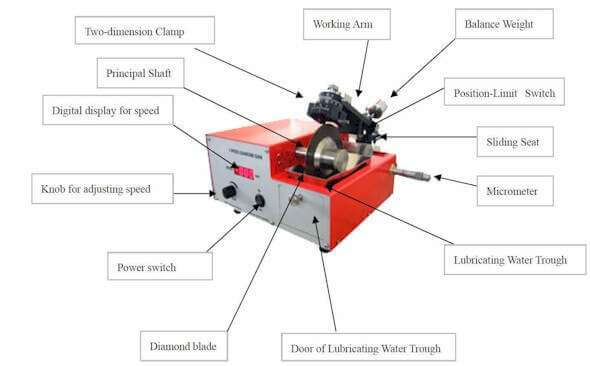

Picture for reference
