Gantry Type Digital Controlled Laser Cutting Machine For Metal Tube Pipe Cutting

Introduction

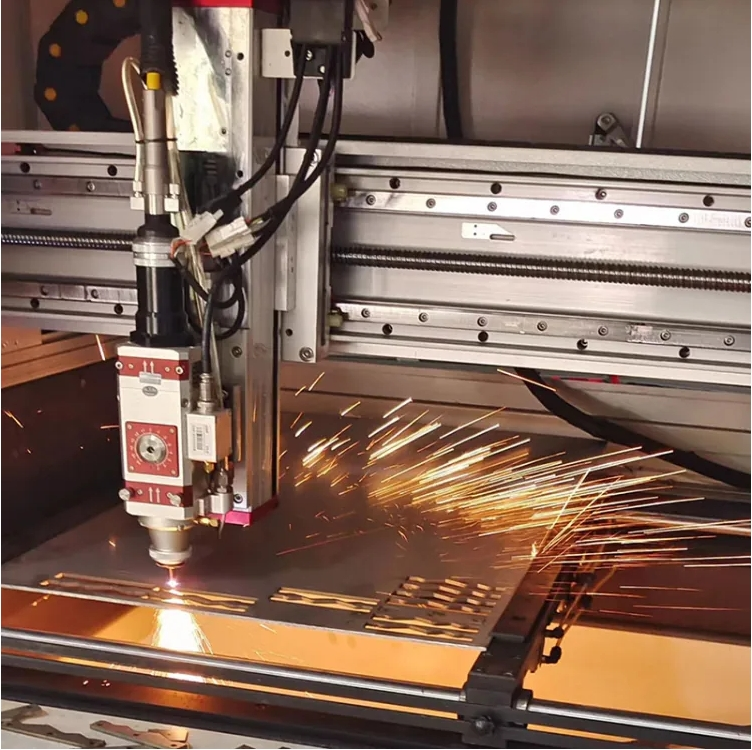

Laser cutting is to focus the laser beam through the laser cutting head into a small spot projected onto the surface of the metal material, the focus of a high power density, then the material is irradiated instantaneously heated to the gasification temperature, evaporation to form holes, with the light beam and the material relatively linear movement, so that the hole continuous formation of a narrow width slit, so as to achieve the purpose of cutting materials. During the cutting process, the nozzle ejects auxiliary gas from the direction parallel to the beam to blow away the slag to ensure the quality of laser cutting. Driven by the same motor, the cutting head moves according to the predetermined trajectory, thus cutting out various shapes of the workpiece.

Technical parameters

Working principle

In the process of practical application, the cutting ability of the fiber laser cutting machine is also related to the quality of the cutting machine, the type of laser, the cutting environment, the cutting speed and other factors, the use of auxiliary gas can improve a certain cutting ability, so there is no absolute standard to judge its cutting thickness. For example, the cutting of carbon steel mainly depends on oxygen combustion, and the cutting of stainless steel mainly depends on nitrogen. Generally 1000w fiber laser cutting machine can cut about 10mm of carbon steel plate, stainless steel plate is slightly difficult to cut point, if you want to improve the cutting thickness, it is to sacrifice the edge effect and speed at the cost.

Advantages

1, high precision: laser cutting CNC precision, CNC software programming + servo motor drive, positioning accuracy of 0.03mm, repeated positioning accuracy of 0.02mm.

2, good cutting quality: no burr, no wrinkle, no slag: laser cutting head does not contact the material, to ensure that the workpiece is not scratched during the processing, no mechanical stress deformation.

3, fast speed: cutting speed can reach 18m/min, the maximum positioning speed can reach 110m/min, much faster than the wire cutting speed.

4, save mold investment: laser processing does not require mold, no mold change time, reducing production costs.

5, not affected by the hardness of the material: the laser can be carbon steel, stainless steel, aluminum alloy, copper and other materials without deformation processing.

6, improve the speed of new product development: after the formation of product drawings, you can immediately carry out laser cutting, do not need to open, can be rapid production, not affected by the shape of the workpiece, speed up the progress of new product development.

7, save materials: the use of computer programming typesetting, can be different shapes of products size set cut, improve the utilization of materials, greatly reduce the cost of enterprise materials.

Application

Application industry

Door and window decoration, home appliances kitchenware, medical equipment, building steel structure, oil pipeline, fitness equipment, display supplies, measuring tools machining and other industries sheet metal cutting, pipe blanking molding, die casting and irregular workpiece secondary molding

Applicable pipe type:

Material: stainless steel, carbon steel, alloy steel, aluminum, copper, titanium, etc

Pipe type: square pipe, round pipe, rectangular pipe, waist pipe, oval pipe, Angle steel, C-shaped steel

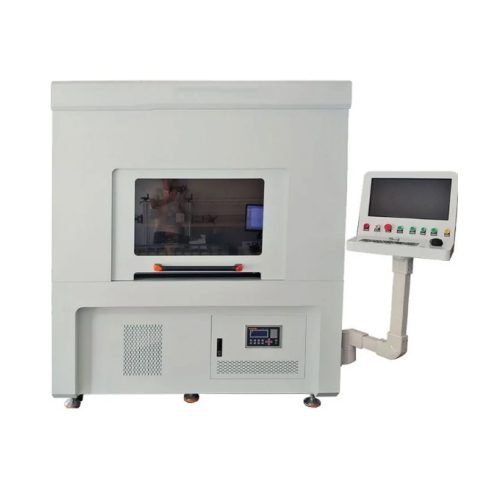

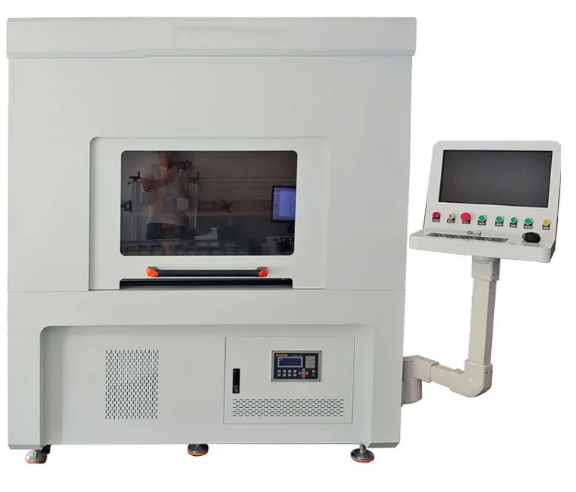

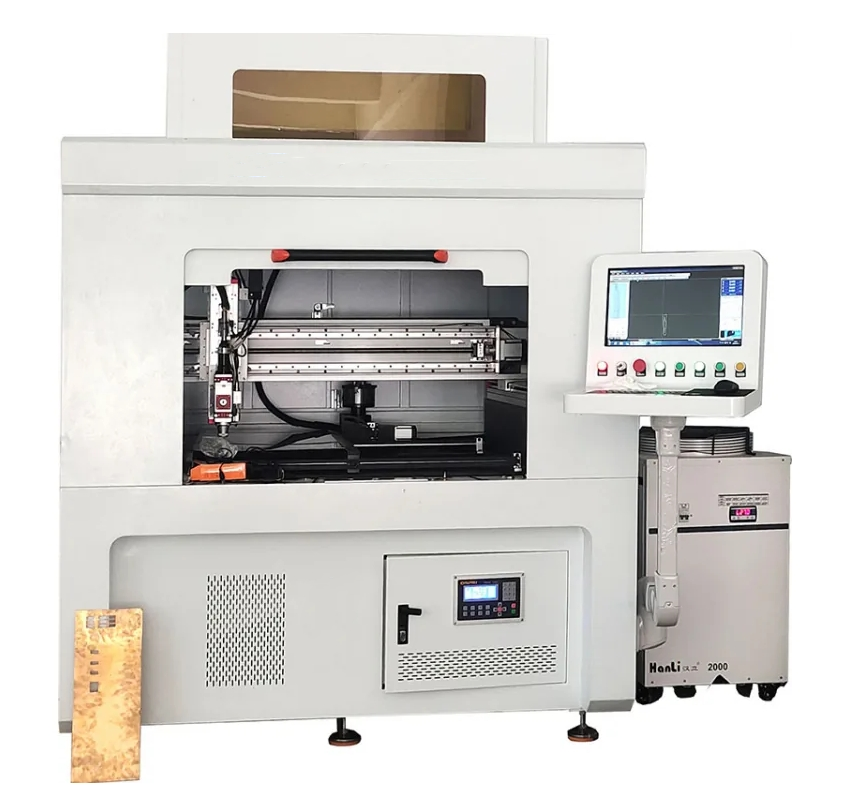

Picture for reference
