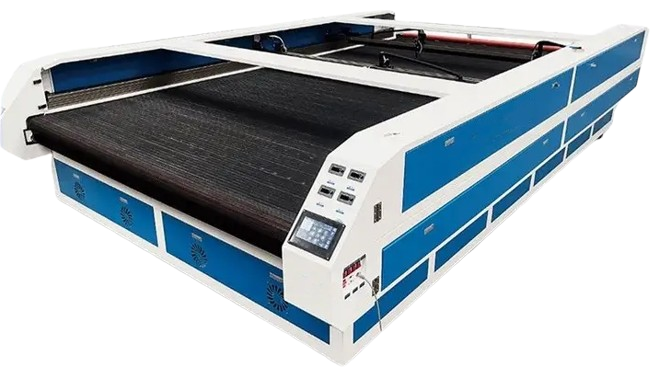

CWD Automatic Laser Cutting Machine For Fabric Clothing Cutting
Application
Wedding dress, dress, personalized fabric sofa customization, custom clothing, outdoor tents, car interior, home textiles and various textile products personalized customization. Suitable for all kinds of flexible materials cutting, hollowing, carving and so on.
Advantages
1. Compatible with all CAD software, a complete solution from software design, printing to laser cutting
2. 2.Automatic laser cutting to solve the issue of custom·made products.
3. industry databases could be built to establish big data advantages step by step.
4. Laser cutting with high precision and sealed edge effect, higher quality and easier to sew.
5. Plate making, process could be eliminated to save labor cost and no need to reply on experienced workers.
6. Double track motion cutting, Nesting, function saves materials and decrease the cost.
Technical parameters
Model | CWD Automatic Laser Cutting machine |
Working area | 1600mm*3000mm/2000mm*3000mm |
Laser power | 60-150W optional |
Laser type | C02 RF metal tube/C02 glass tube |
Cooing type | Water cooling system |
Carving scanning Speed | 0-60000mm/min |
Cutting speed | 0-40000mm/min |
Laser energy control | 0-100% by software settings |
Minimum font | Chinese 2.0mm*2.0mm, English: 1.0mm*1.0mm |
Maximum scanning accuracy | 4000 DPI (could equip with CCD vision system on demand) |
Positioning accuracy | ≤+0.01mm |
Control system | DSP control system |
Graphic format supported | DST/PLT/BMP/DXF/DWG/AL/LAS |
Software supported | TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD and so on |
Color separation | available |
Drive system | High accuracy two phase step motor/Servo motor by imported |
Auxiliary device | Exhaust fan and exhaust pipe |
Power | AC110V/220V ± 10%, 50Hz/60Hz |
Working condition | Temperature: 1-45℃.humidity: 5-95% |
Optional configuration | Auto feeding/honey comb work table |

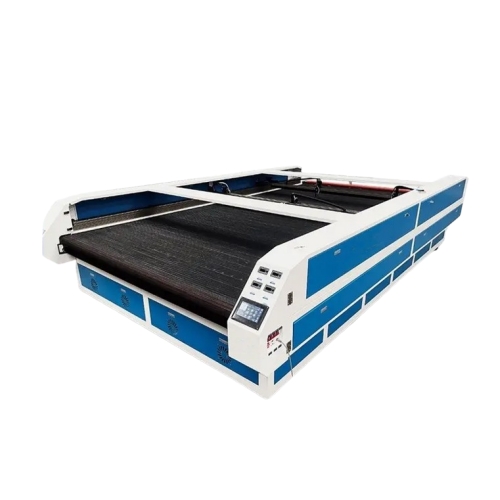

Picture for reference
