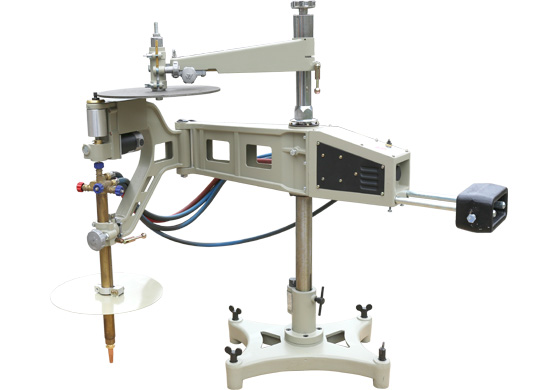

Heavy Thickness Profiling Gas Cutter Machine For Metal Plate Cutting

Introduction

“CG2-150D”Heavy Thickness profiling gas cutter is a kind of efficient and economic product. It is designed well and made of A-alloy. It can cut many shapes of pieces according to sample plate. The accuracy of cutting surface is good and the quality is high. The body is very small. So, it not only suits for company, but also suits for outdoor.

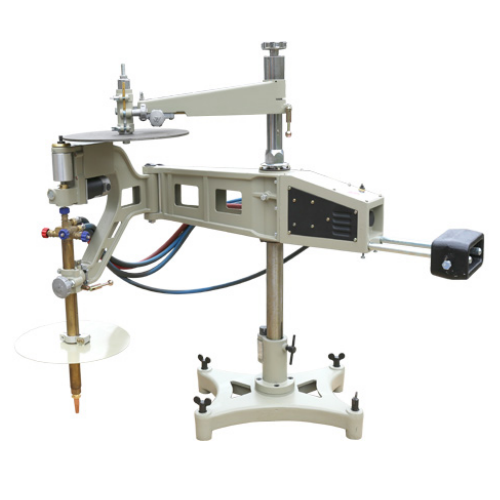

Structure

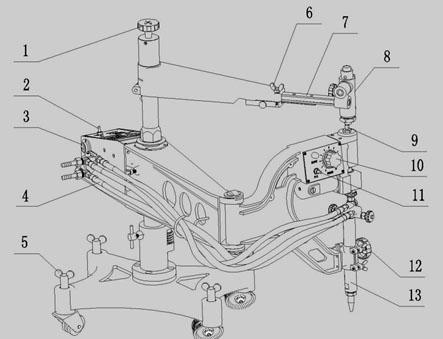

1. Lift wheel of arm: Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall.

2. Power switch

3. outlet

4. hose: There are four hoses: preheating, cutting, fuel gas and feeding gas for pressure switch.

5. Screw at the bottom: Make the machine horizontal on steel plate.

6. Locking screw of arm cross moving bar: If the position of sample plate is settled, you can fix the cross moving bar on the arm with locking screw.

7. Cross moving bar：Measuring scale is set on the fracture of cross moving bar. You can adjust the sample plate horizontally according to scale.

8. Frame of sample plate: To fix the sample plate and adjust the height of sample plate.

9. Magnetic head

10. Speed regulating knob：Increase the speed if you revolve it along “0” to “10”.

11. Direction regulating switch: To change the rotary direction of magnetic head.

12. Lifting hand wheel of torch

13. Torch
