Automatic Metal Plate Rocking Arm Shifting Profiling Gas Cutter Cutting Machine

Introduction

 “CG2-2700” rocking arm copying gas cutter is designed for cutting large-sized work piece. The machine has advantages of common copying cutter and is used in all fields. Structure of the machine is solid and cutting accuracy is high. Operation of the machine is easy with little auxiliary work. Accurate and efficient copying can work continuously. Magnetic trace roller traces any kinds of shape. When track is fixed, the machine can move forwards and back. Because of easy operation, one person can operate some machines.

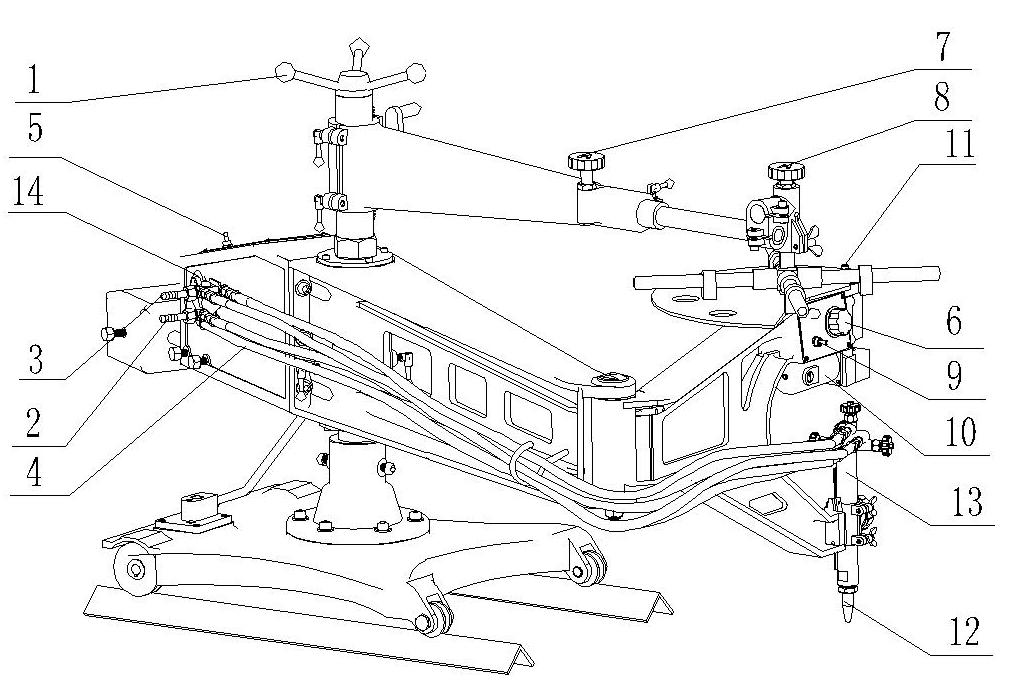

Structure

1. Shape arm locking handle: After releasing handle, shape arm can rotate 360 degree direction. 2.Gas admitting pipe

3.Oxygen admitting pipe

4. Pressure switch admitting pipe: Pressure switch and cutting oxygen valve are controlled in interlocking way.

5. Power switch: The switch is off before open power.

6.Speed control knob: Rotating the knob can make machine move quickly along “10” direction and move slowly along: ”0”direction.

7.Traversing Hand wheel: Adjust horizontal distance of model plate

8.Adjusting hand wheel: Adjust model plate frame vertical distance

9.Motor normal-reverse switch

10.DC motor11.Magnetic head

11.Magnetic head

12.Tip

13.Torch and related parts

14.Power socket

Technical parameters

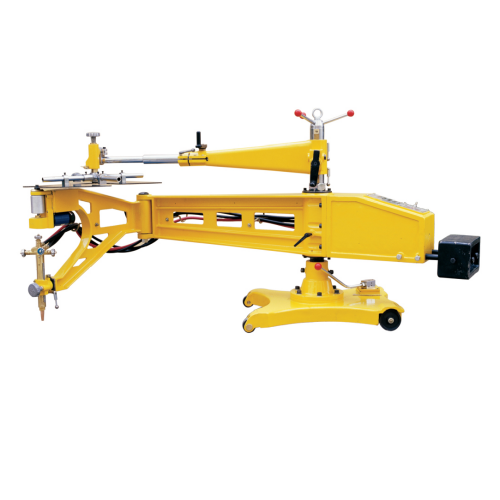

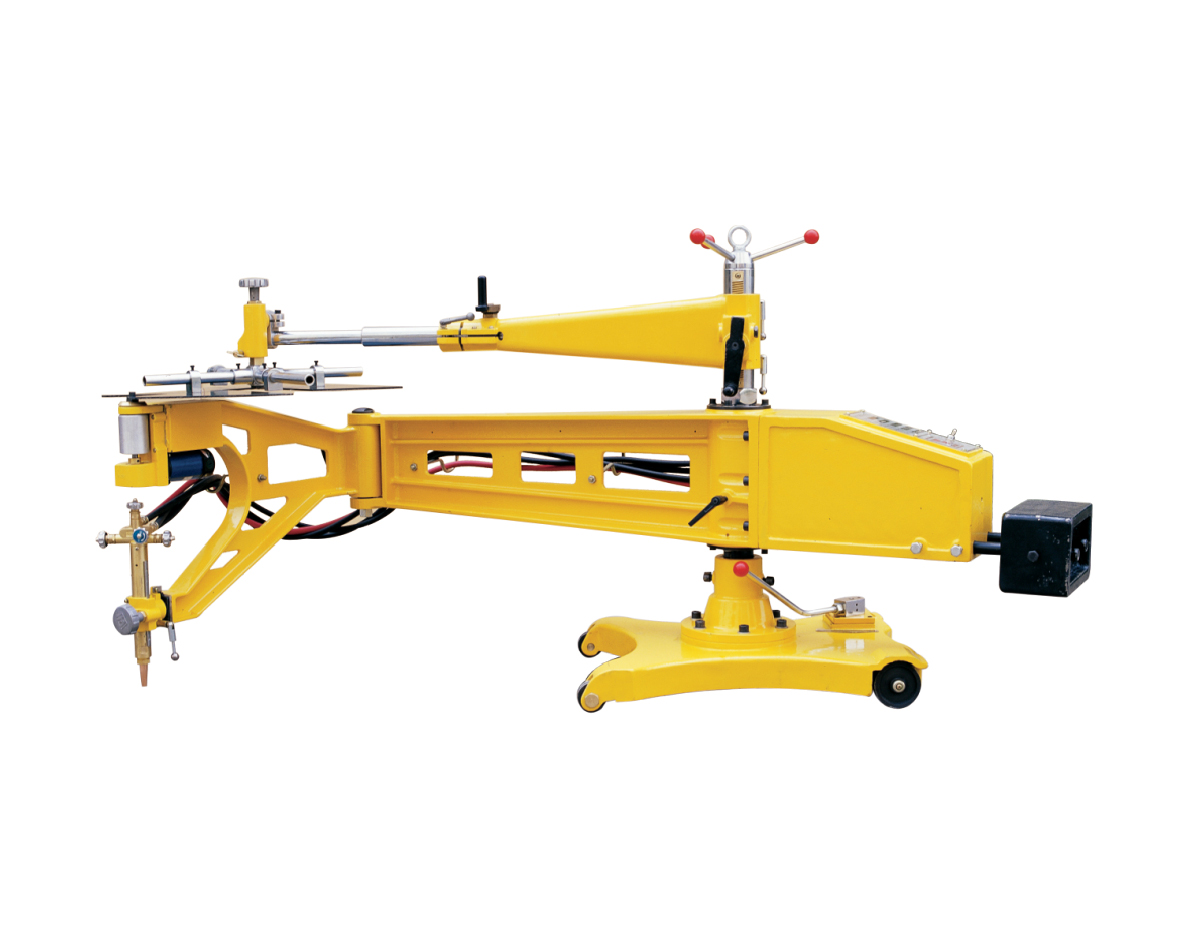

Picture for reference
